Antenna Mast: Service and Repair

Fixed Antenna Mast Replacement

Removal Procedure





Caution: Use tape on the tool surface so that you do not damage the paint on the antenna mast.

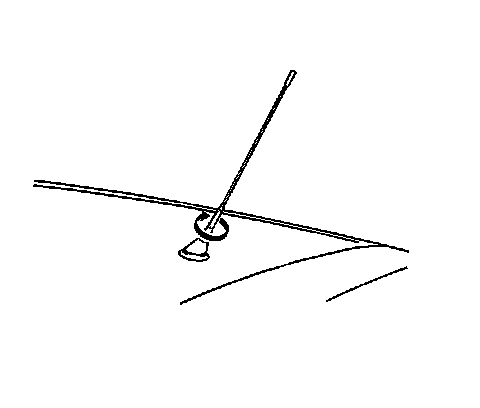

1. Unscrew the antenna mast.
2. Remove the antenna mast from the antenna base.

Installation Procedure

Caution: Use tape on the tool surface so that you do not damage the paint on the antenna mast.

1. Install the antenna mast to the antenna base.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Secure the antenna mast to the antenna base.

Tighten the antenna mast to 5.5 Nm (49 lb in).
