D16 - Manual Transmission

Speedometer Driven Gear Replacement

Removal Procedure

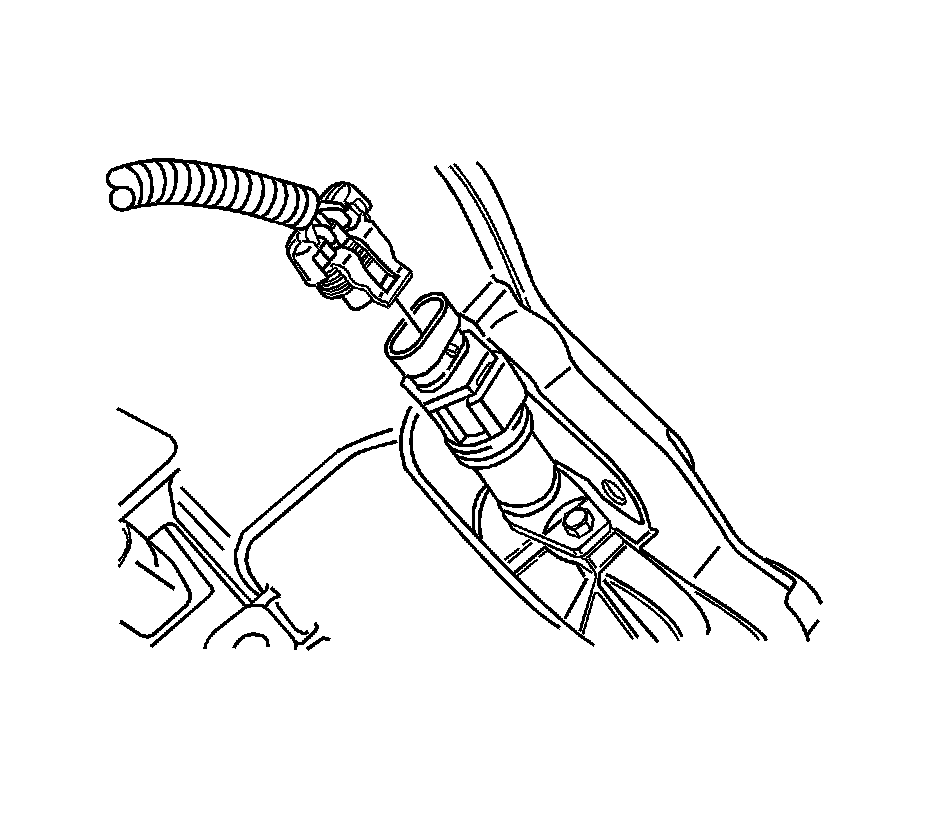

1. Disconnect the speedometer speed sensor electrical connector.

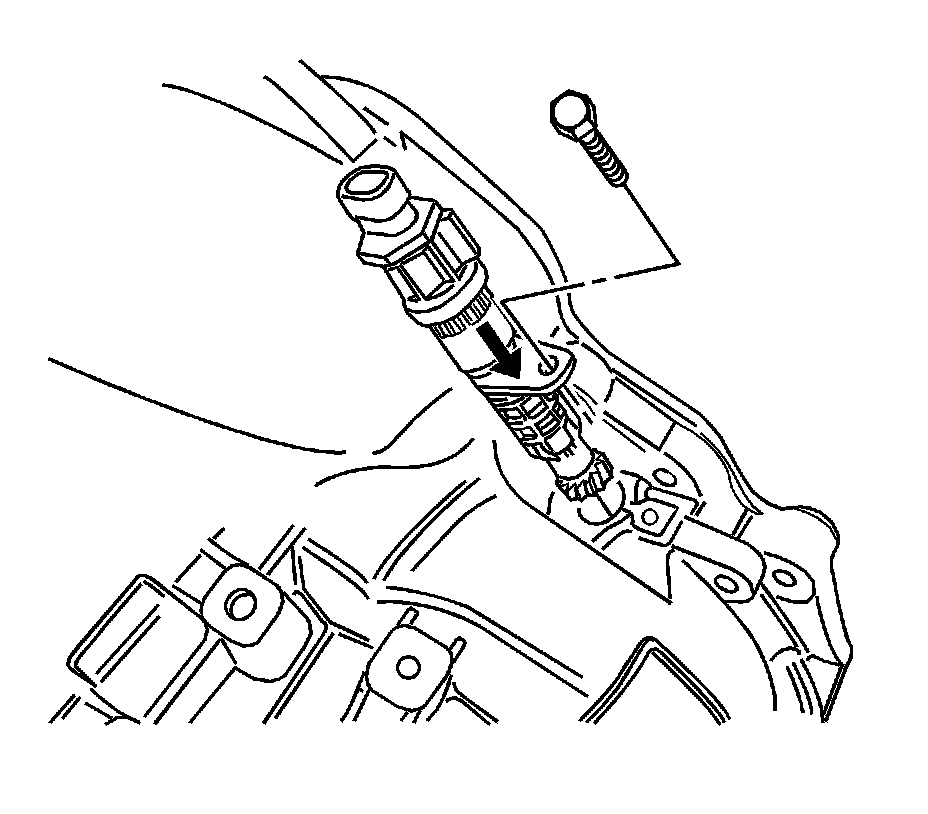

2. Remove the speedometer housing retaining bolt.
3. Remove the speedometer-driven gear and the speedometer housing.

Installation Procedure




1. Coat the O-ring with petroleum jelly.
2. Install the speedometer-driven gear and the speedometer housing.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the speedometer housing retaining bolt and tighten to 4 Nm (35 lb in).

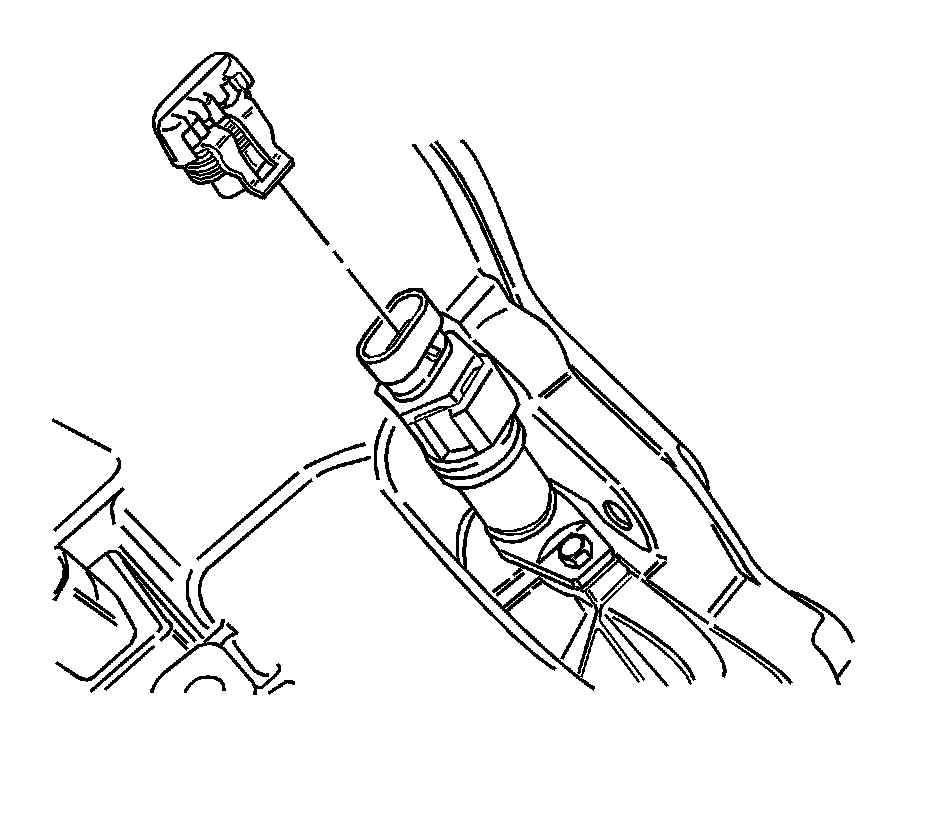

4. Connect the speedometer speed sensor electrical connector.
