9. Synchronizer Hub and Sleeve Inspection




Synchronizer Hub and Sleeve Inspection

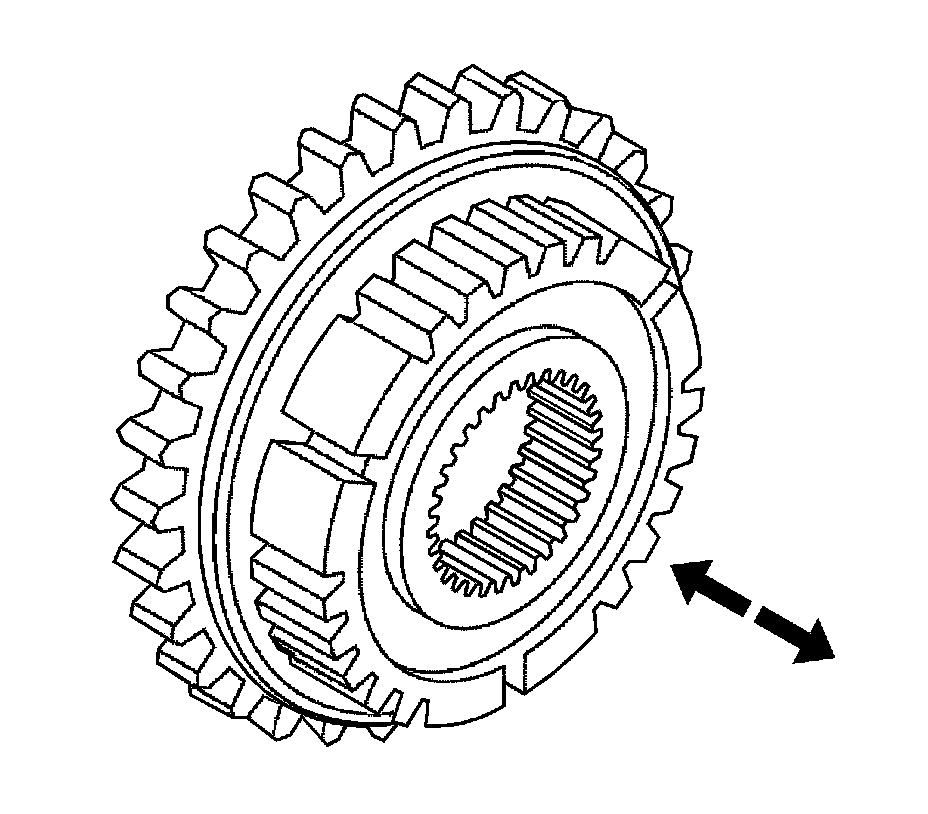

1. Check the sleeve for improper operation after assembling the hub and the sleeve.
2. Check the wear of hub and sleeve.
3. Replace synchronizer hub or sleeve if necessary.
