Home >> Pontiac >> 2010 >> G3 L4-1.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Splices By Number >> XJ201

XJ201




Splice Pack Connector End Views

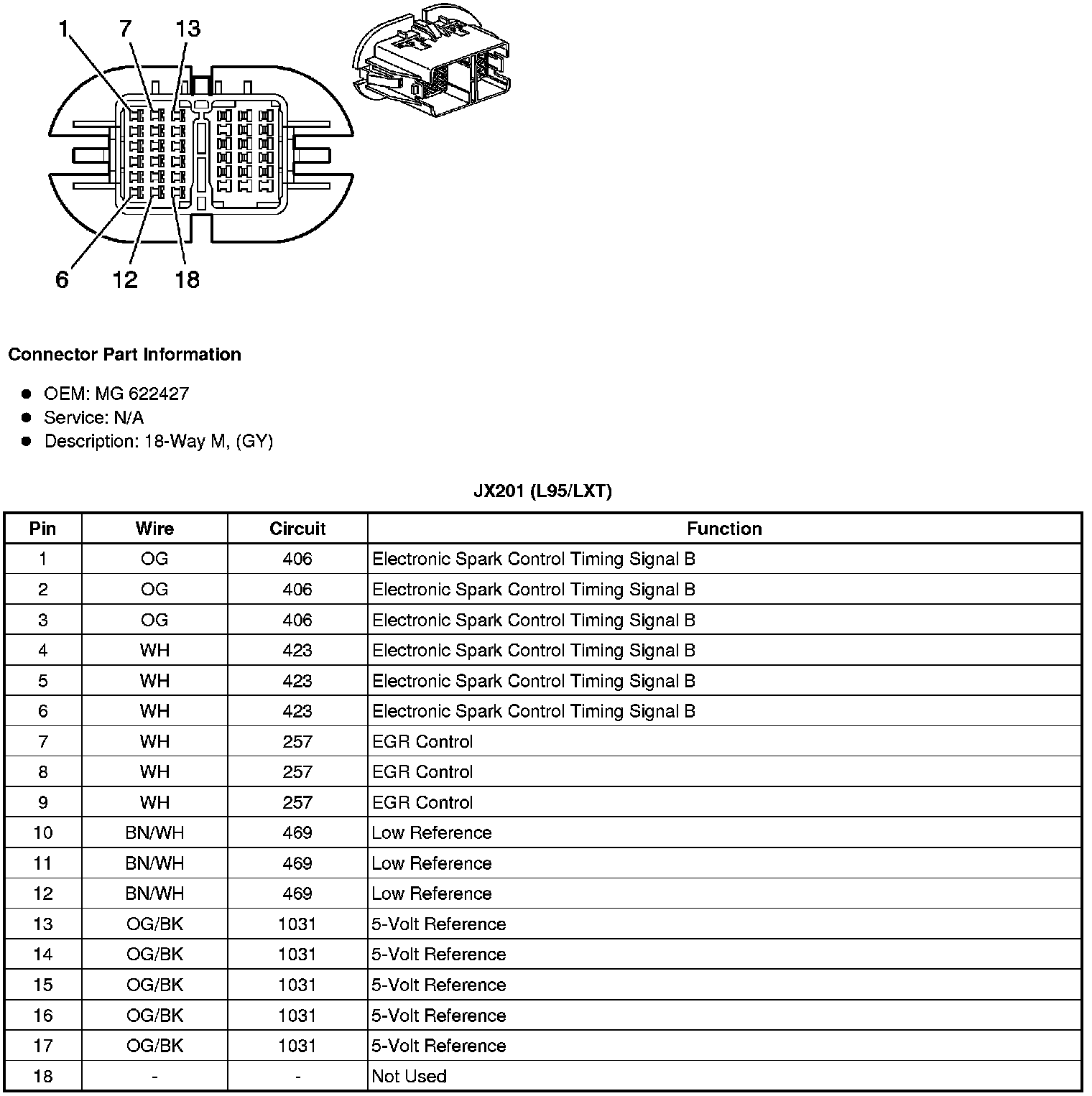

JX201 (L95/LXT)

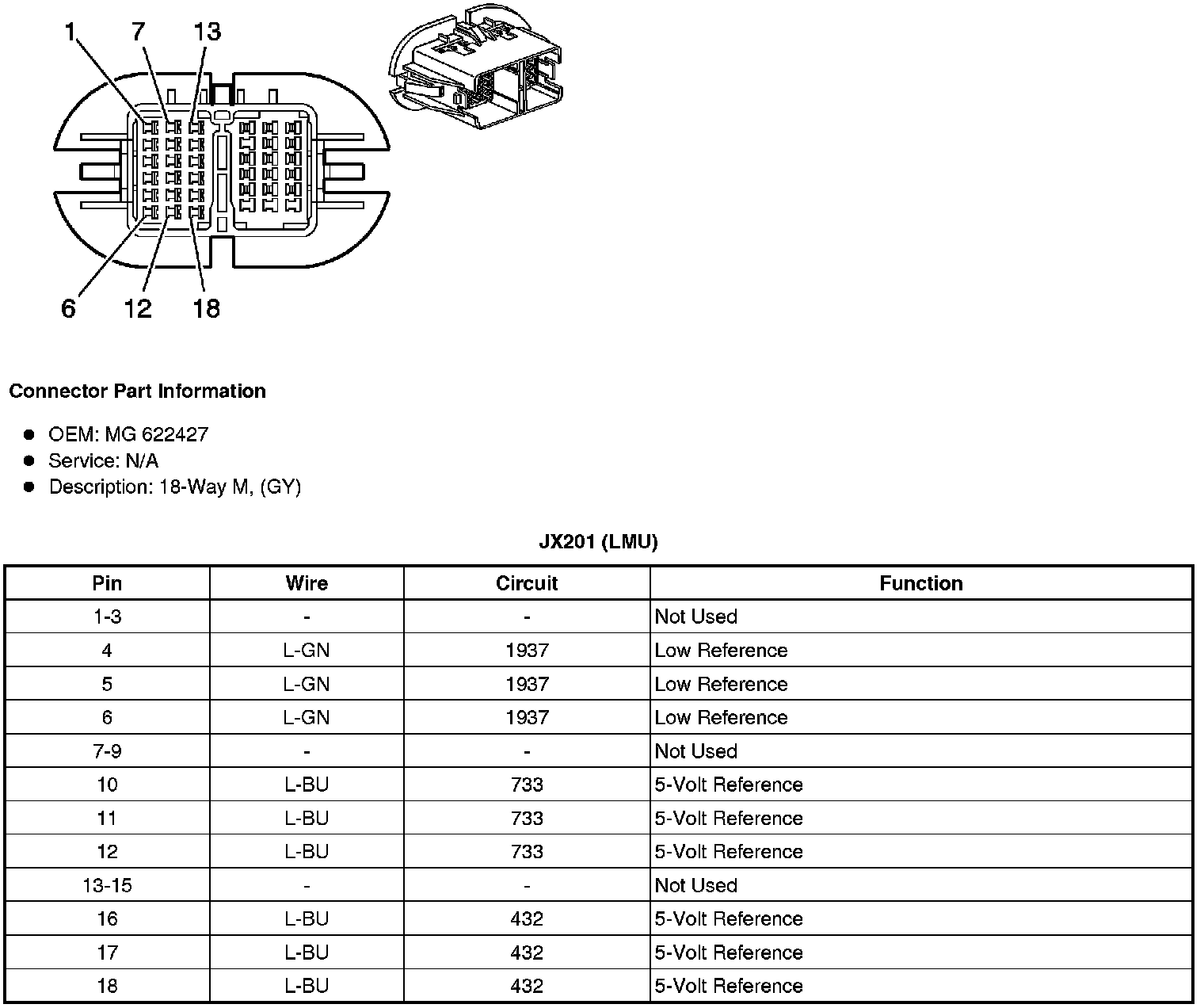

JX201 (LMU)
