X900

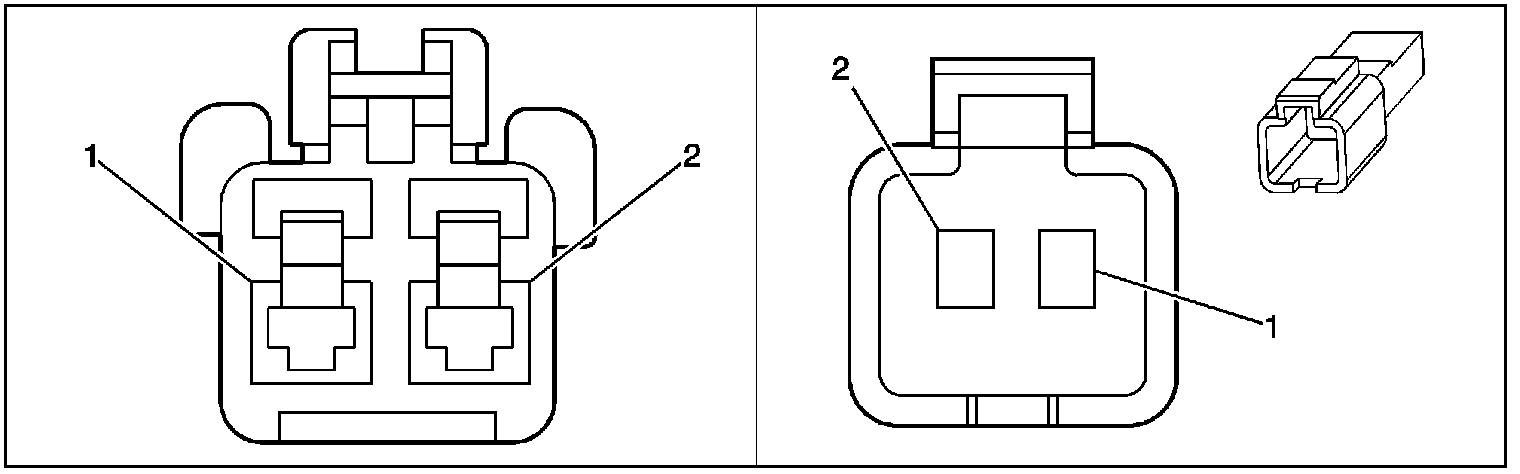

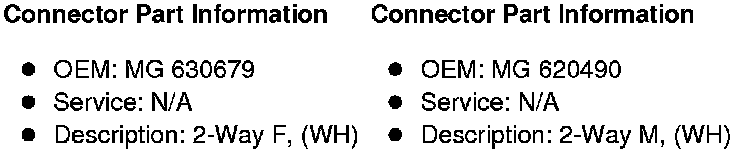

Inline Harness Connector End Views

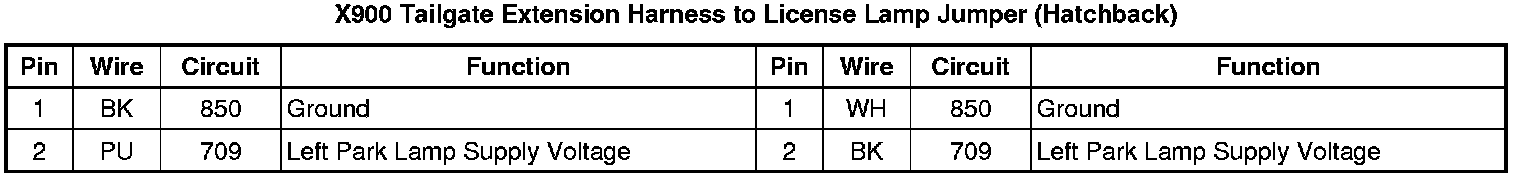

X900 Tailgate Extension Harness to License Lamp Jumper (Hatchback)
