X401

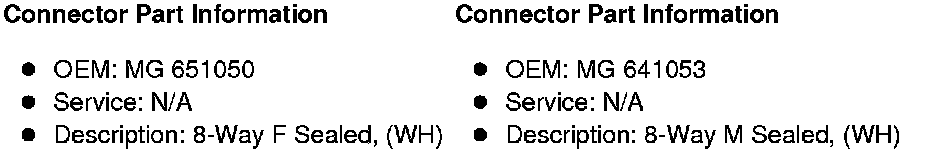

Inline Harness Connector End Views

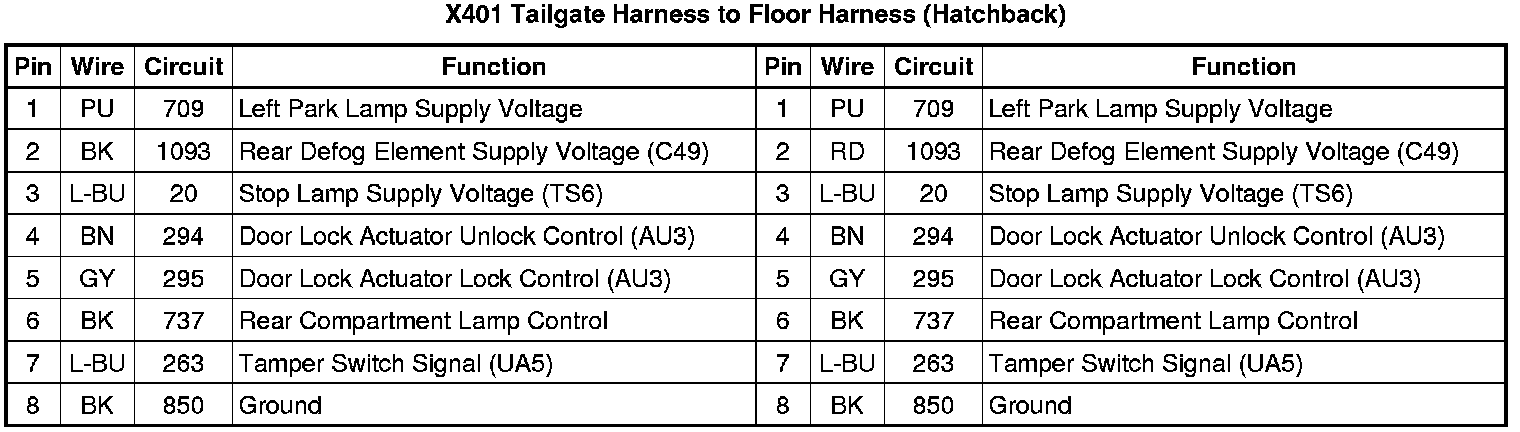

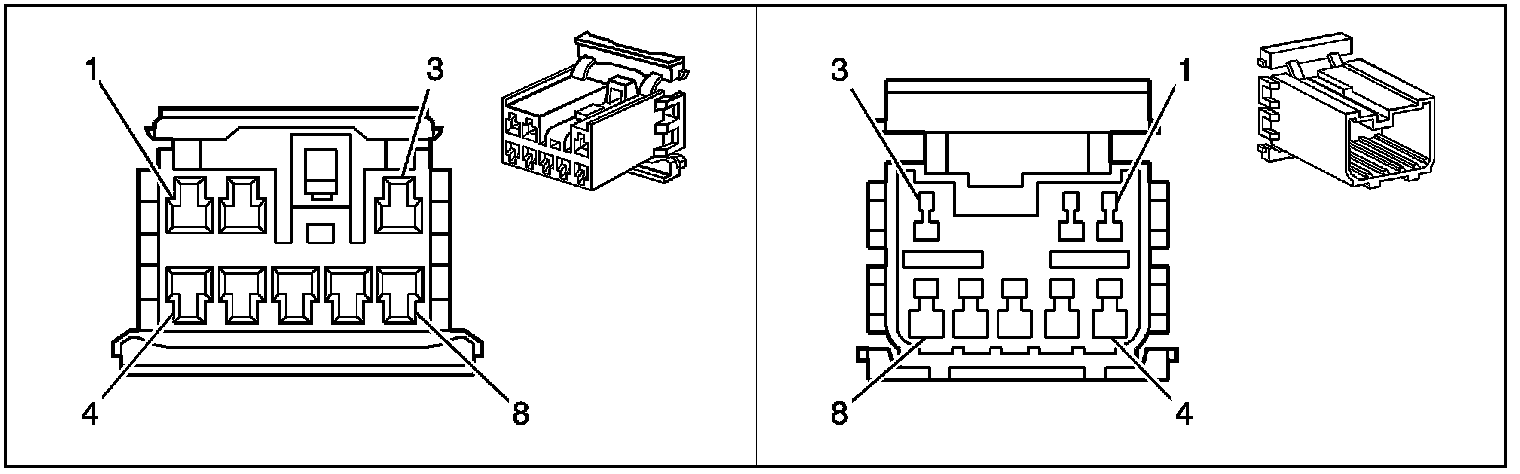

X401 Tailgate Harness to Floor Harness (Hatchback)

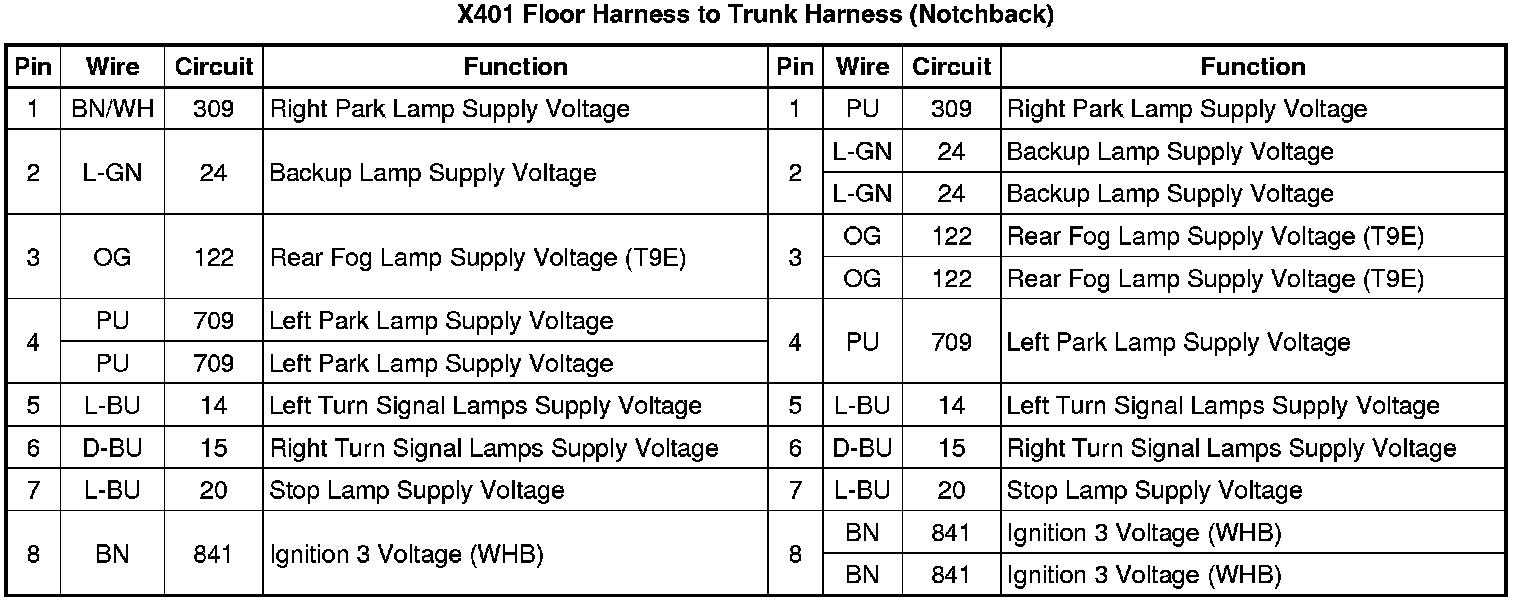

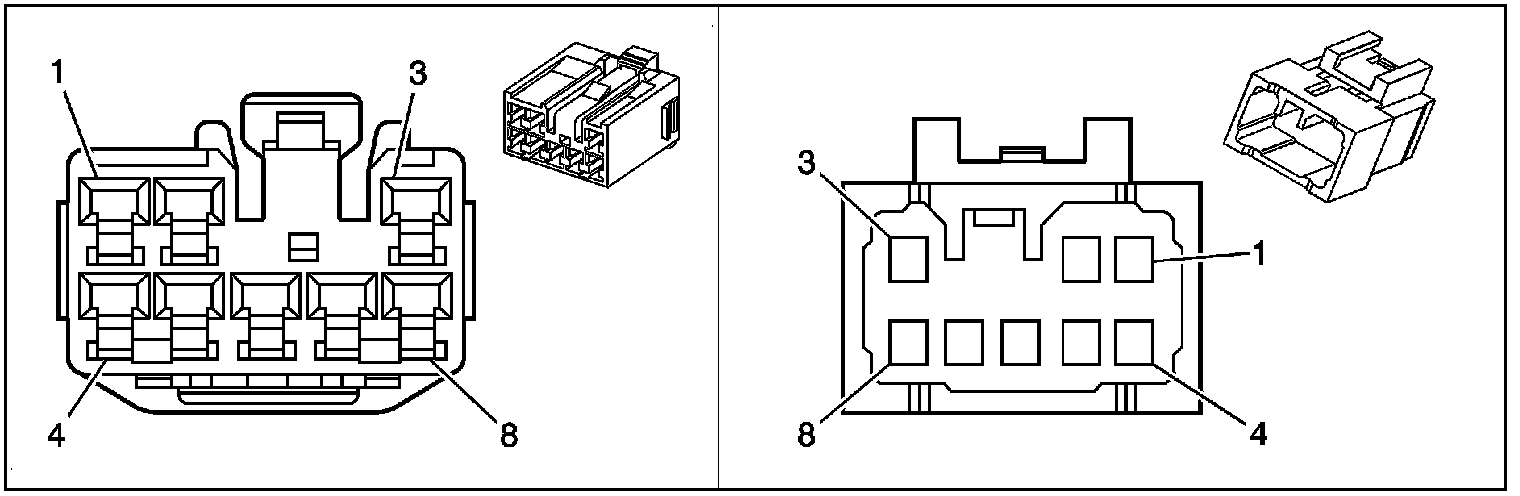

X401 Floor Harness to Trunk Harness (Notchback)
