X214
X214

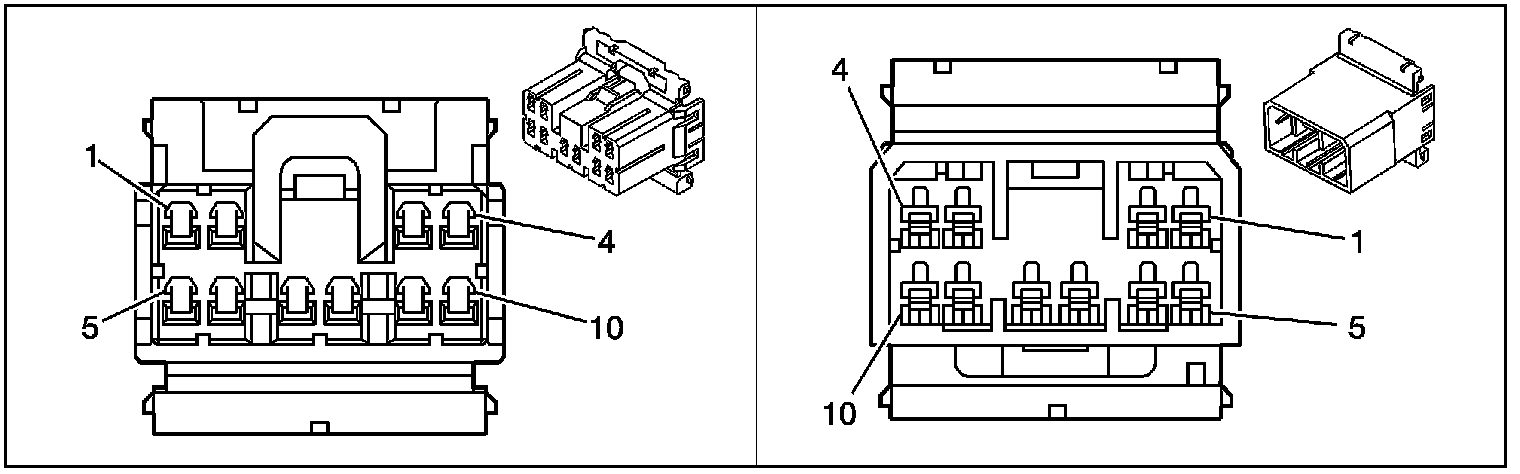

Inline Harness Connector End Views

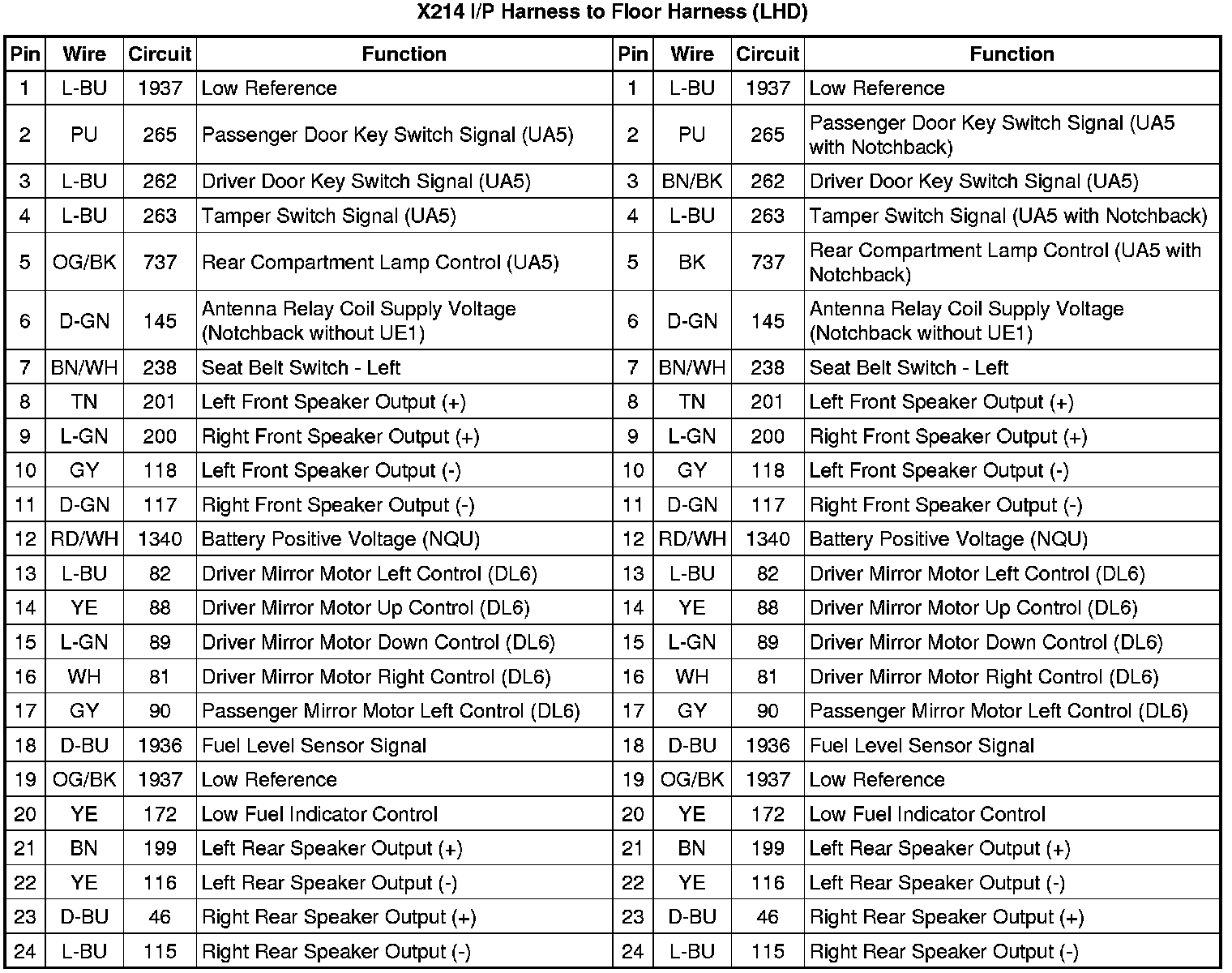

X214 I/P Harness to Floor Harness (LHD)

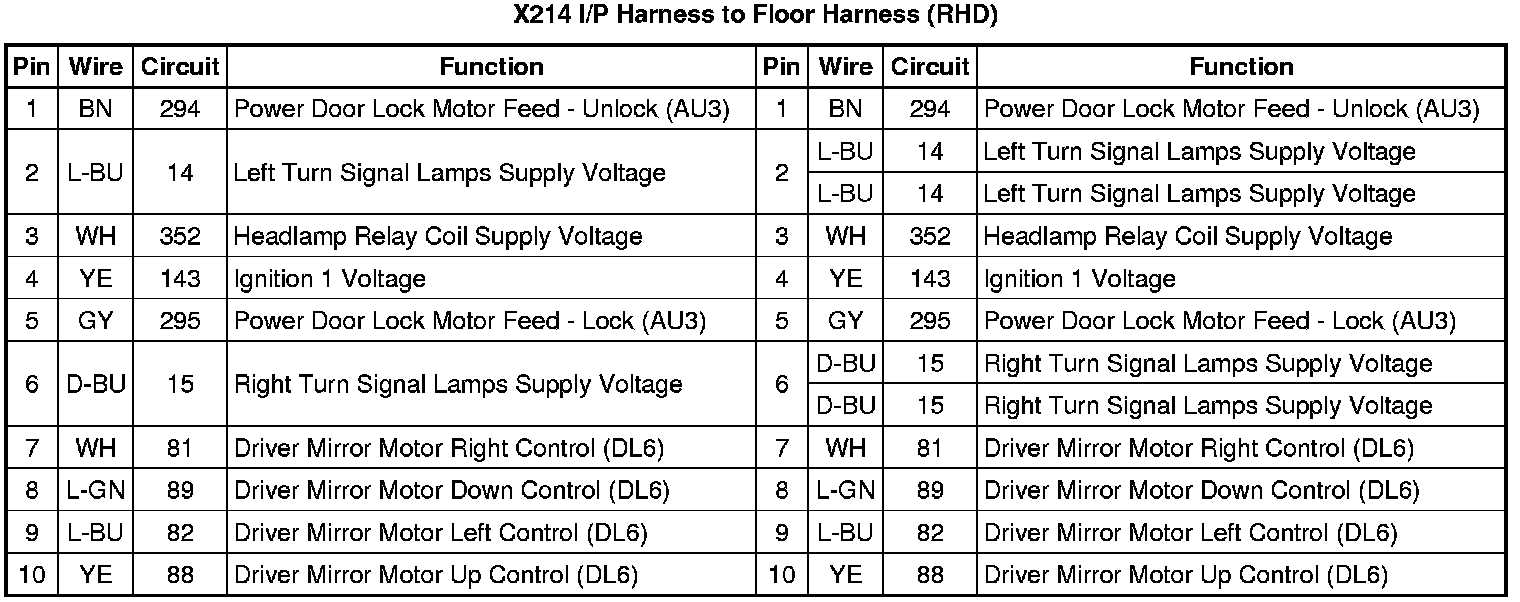

X214 I/P Harness to Floor Harness (RHD)
