X202




Inline Harness Connector End Views

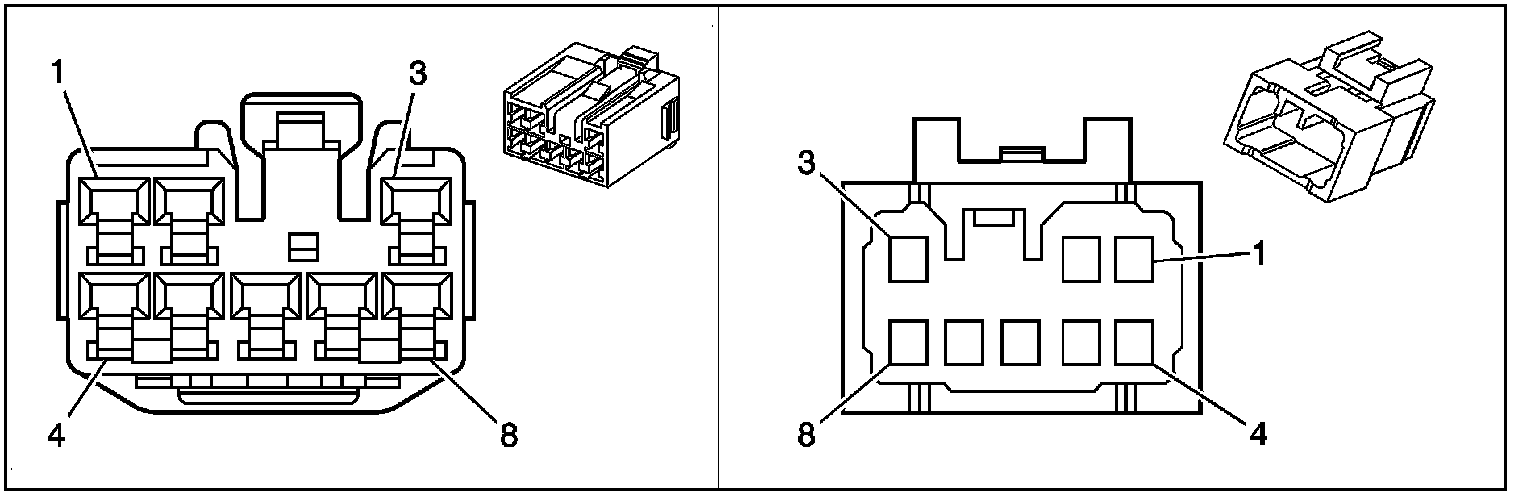

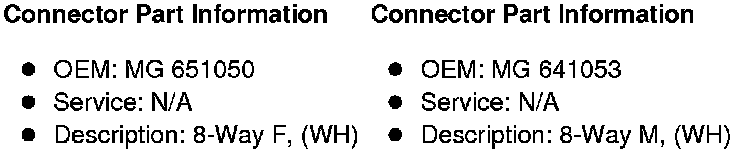

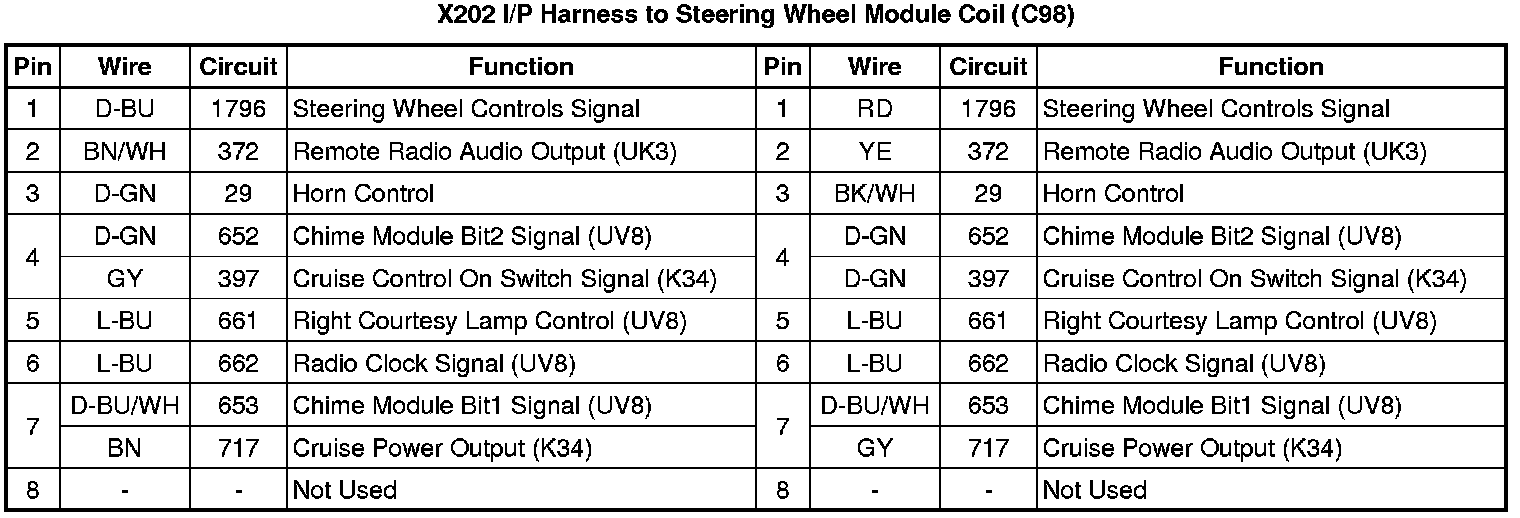

X202 I/P Harness to Steering Wheel Module Coil (C98)

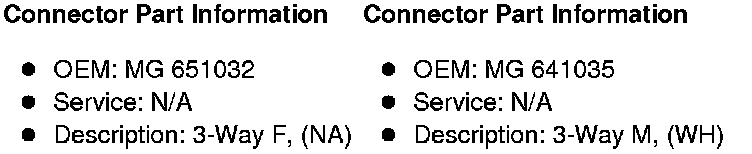

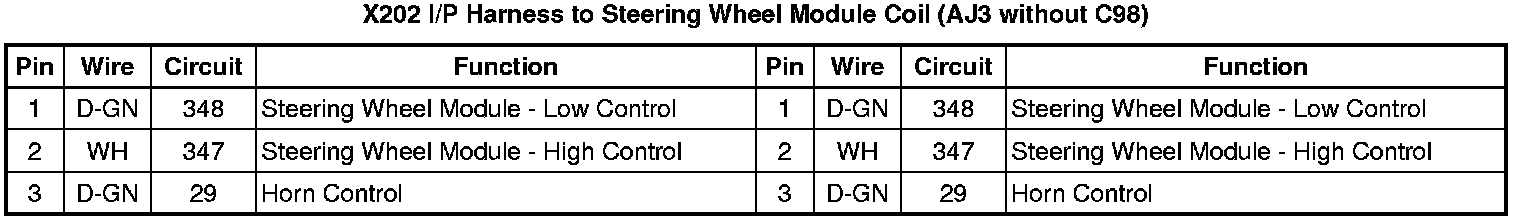

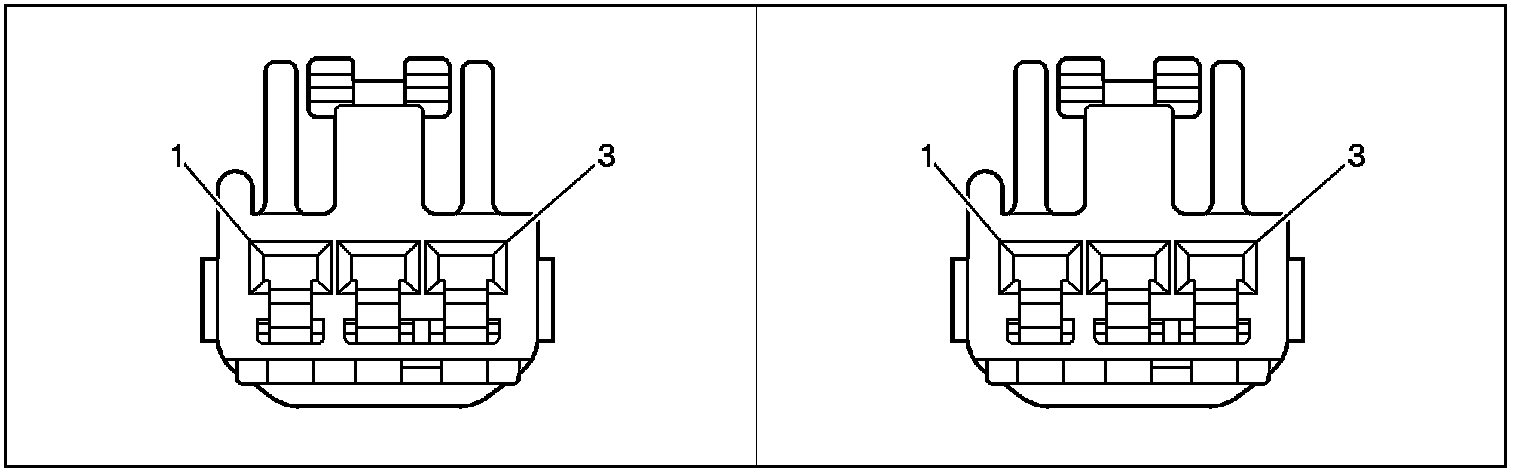

X202 I/P Harness to Steering Wheel Module Coil (AJ3 without C98)
