X105




Inline Harness Connector End Views

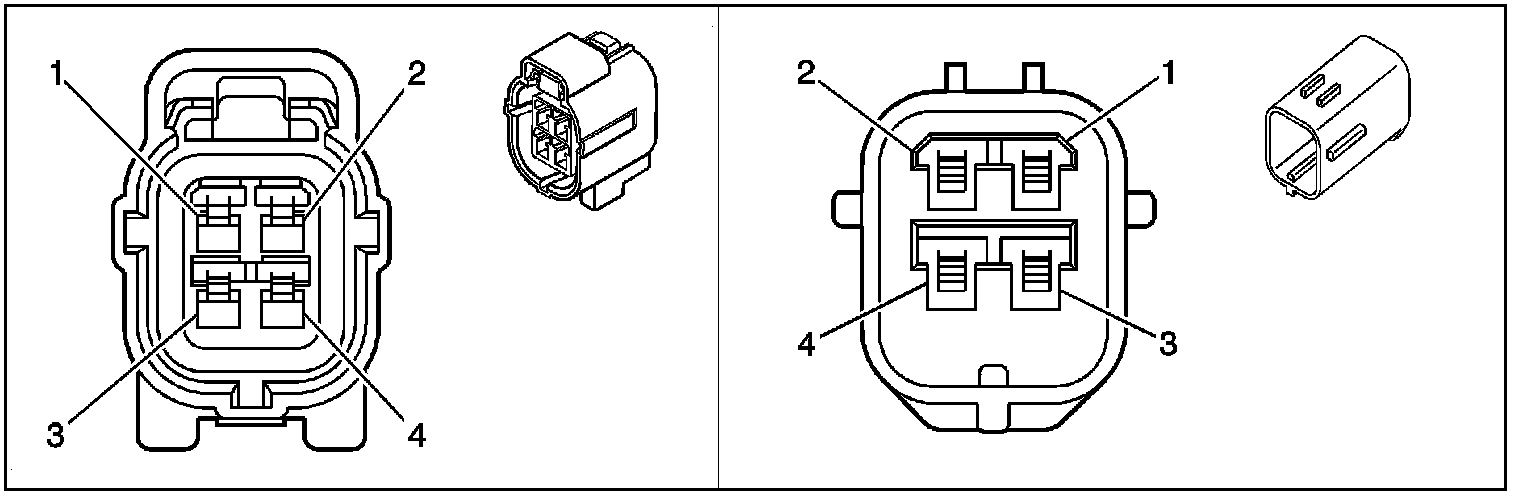

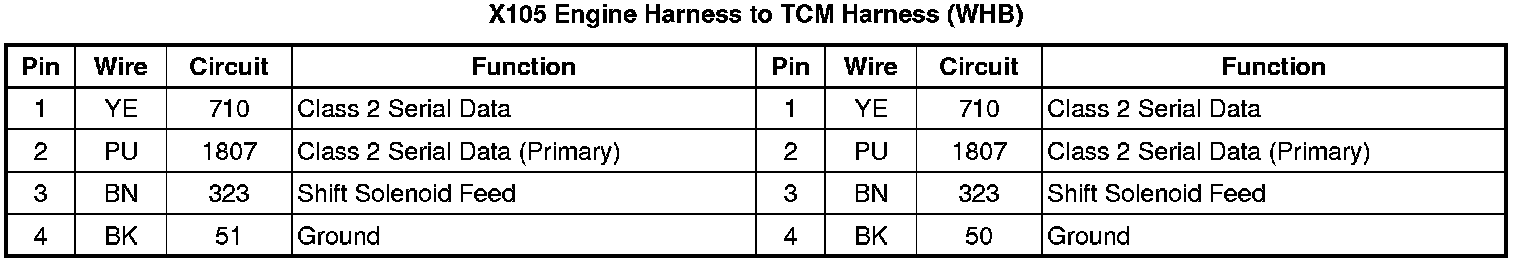

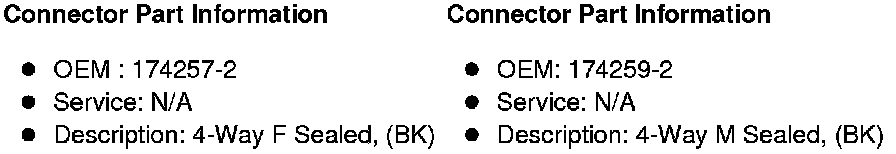

X105 Engine Harness to TCM Harness (WHB)

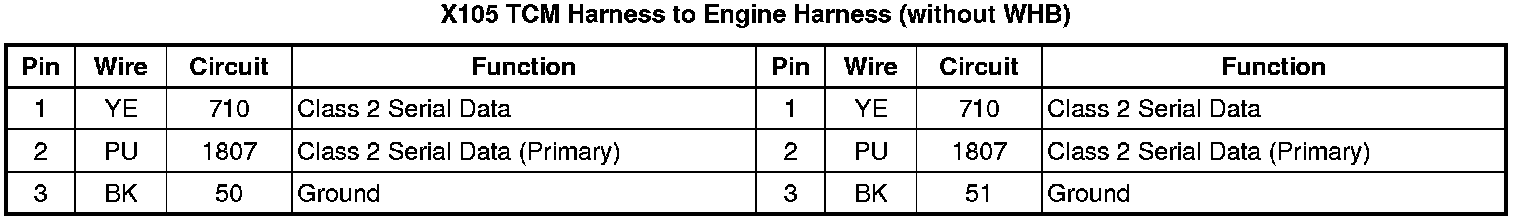

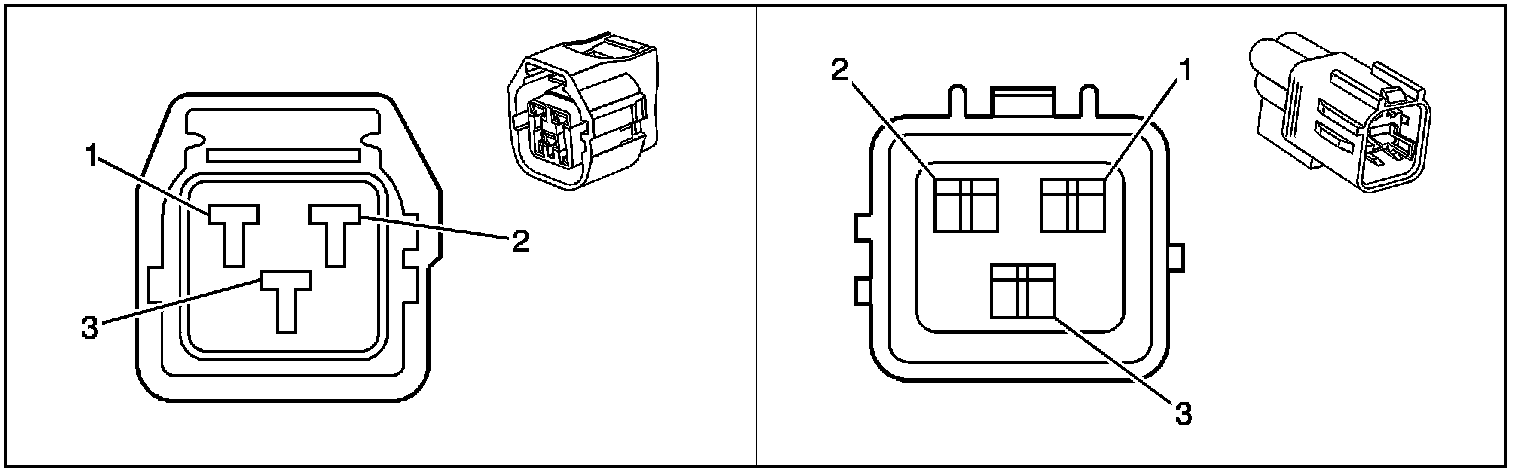

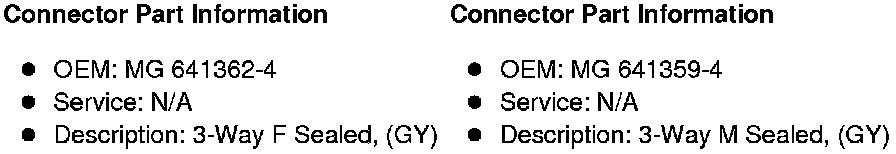

X105 TCM Harness to Engine Harness (without WHB)
