C400 - C499




Inline Harness Connector End Views

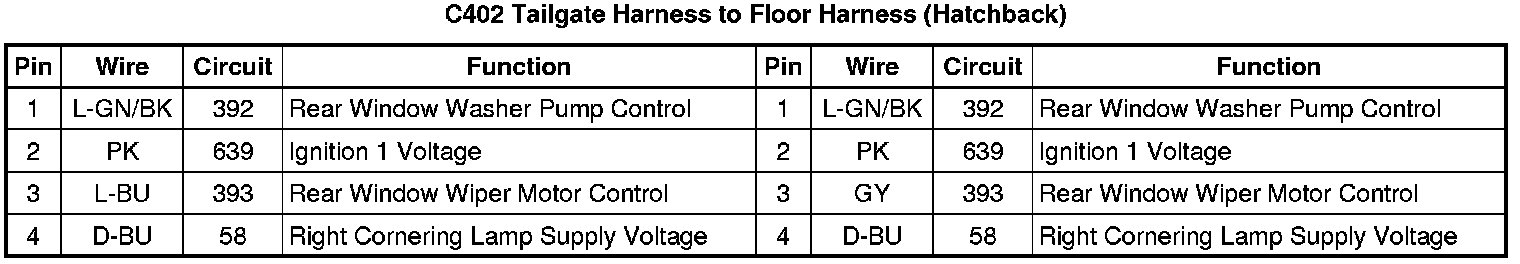

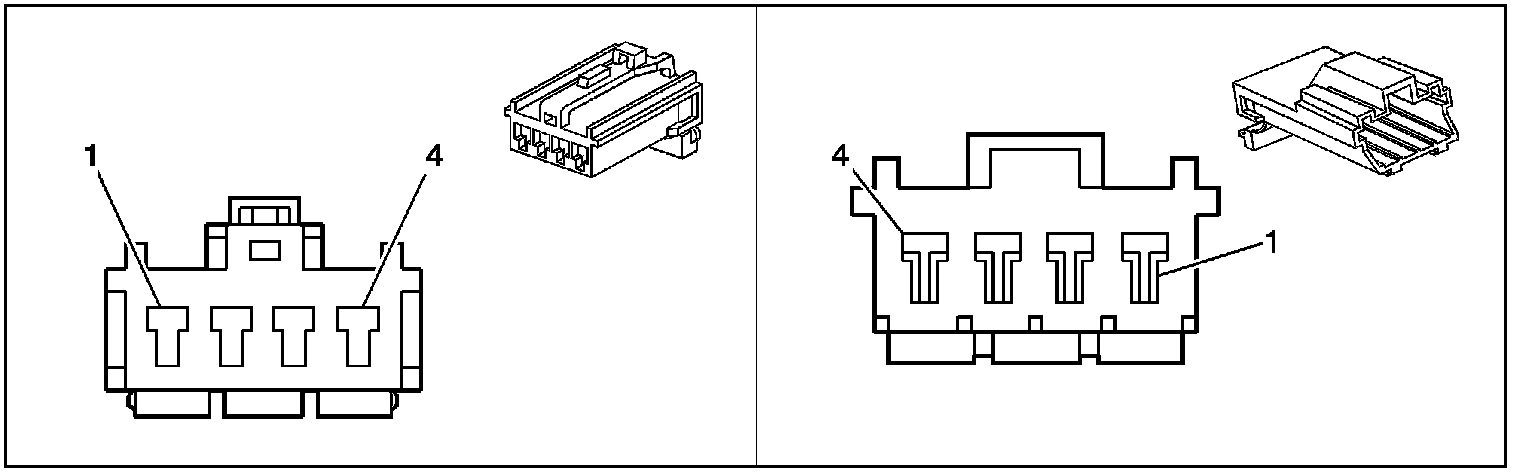

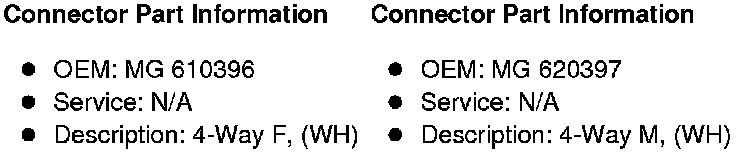

C402 Tailgate Harness to Floor Harness (Hatchback)
