Home >> Pontiac >> 2010 >> G3 L4-1.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Fuse Block - I/P

Fuse Block - I/P

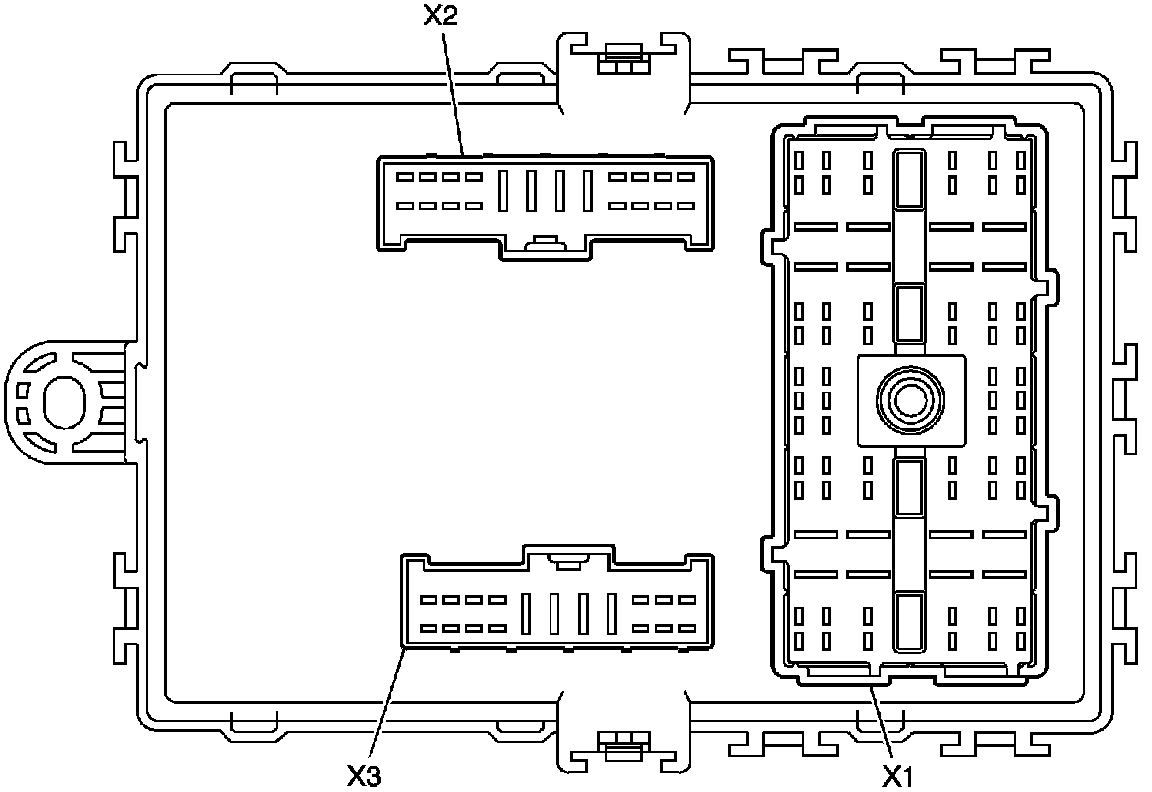

Electrical Center Identification Views

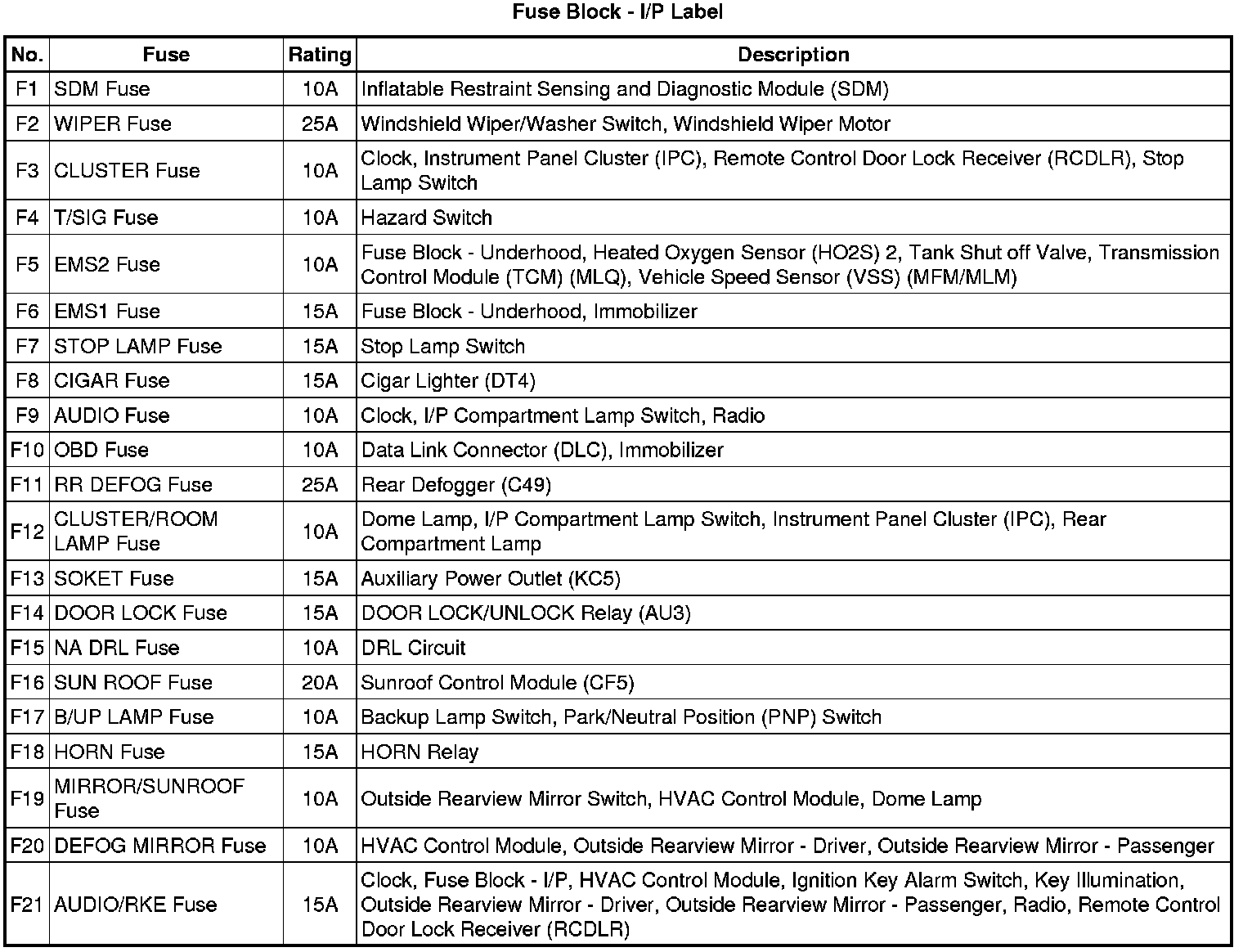

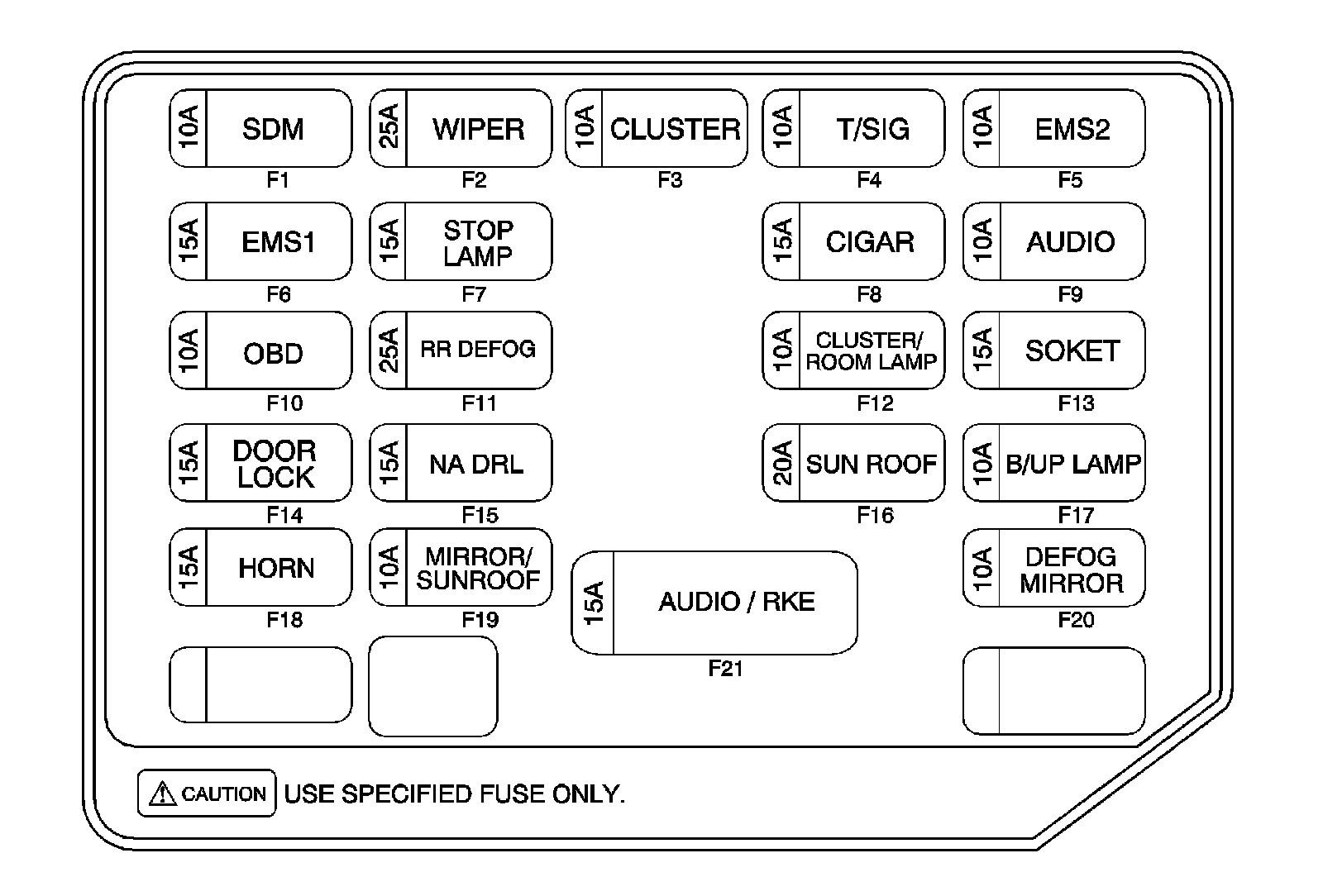

Fuse Block - I/P Label









Fuse Block - I/P (Bottom View)

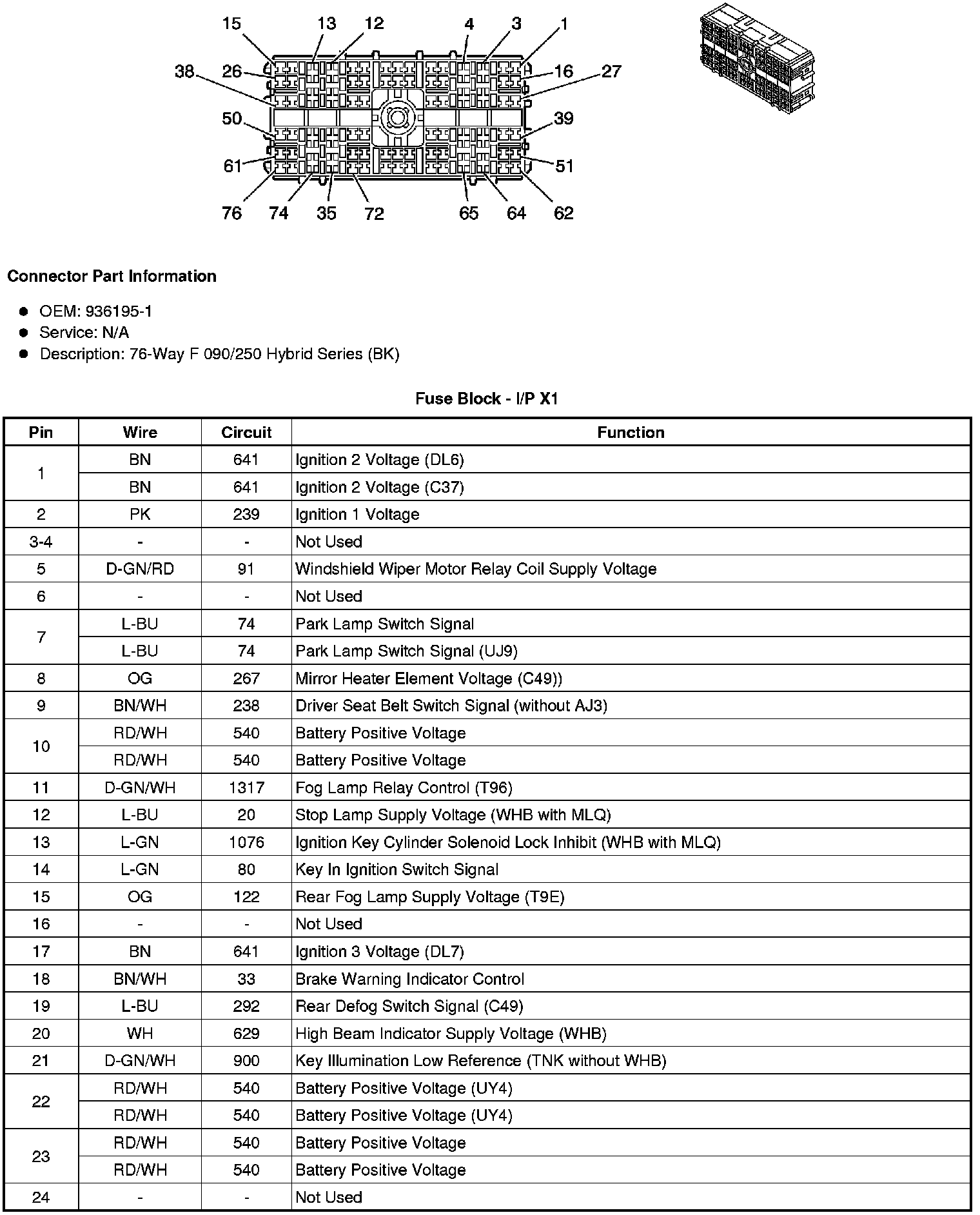

Fuse Block - I/P X1

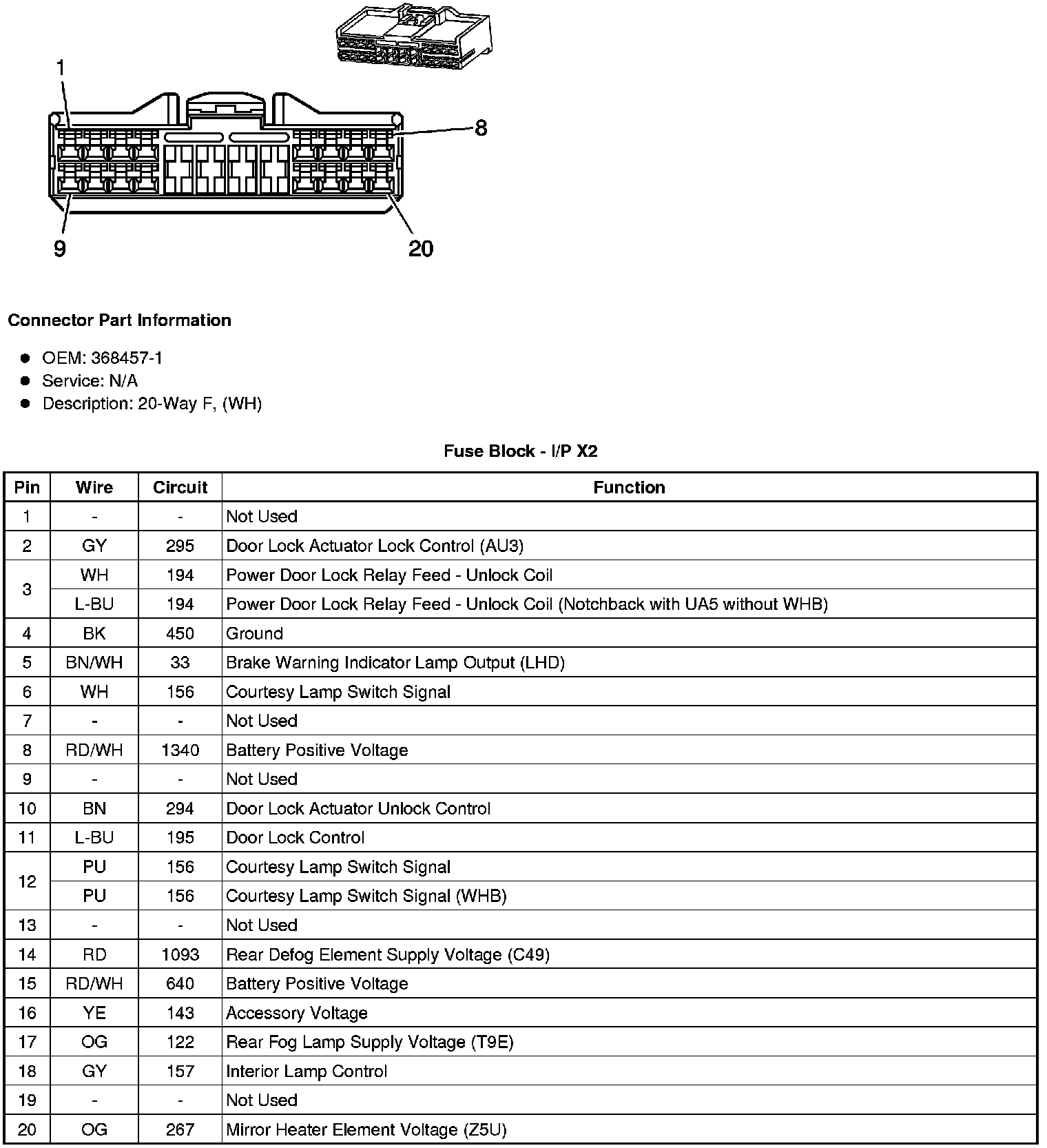

Fuse Block - I/P X2

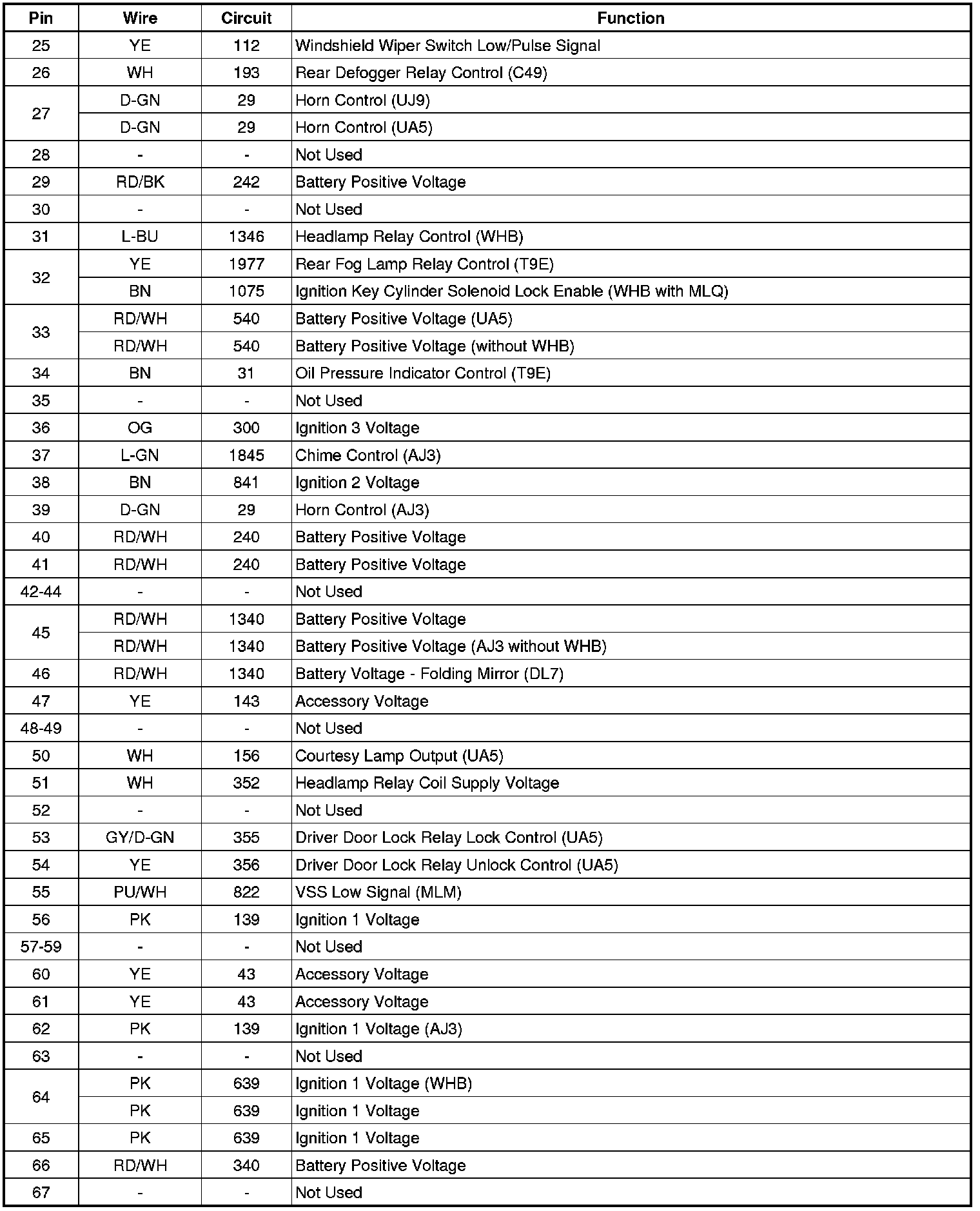

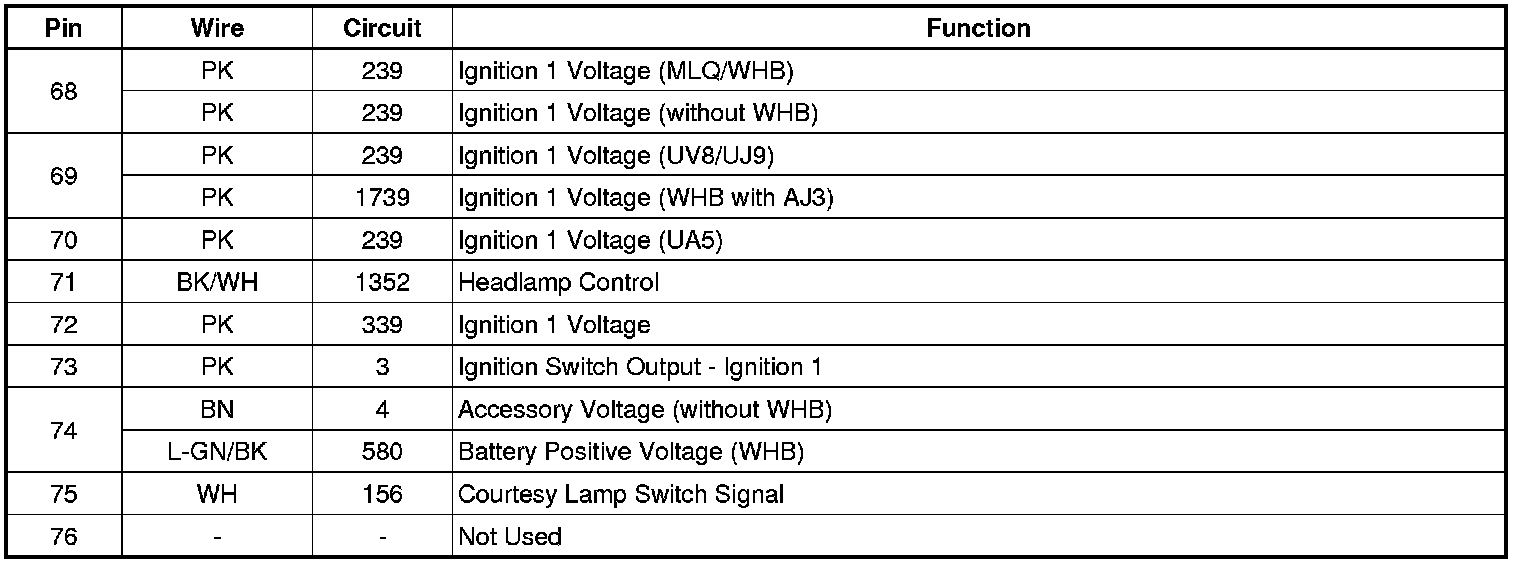

Fuse Block - I/P X3
