Wiper Switch: Diagrams




Component Connector End Views

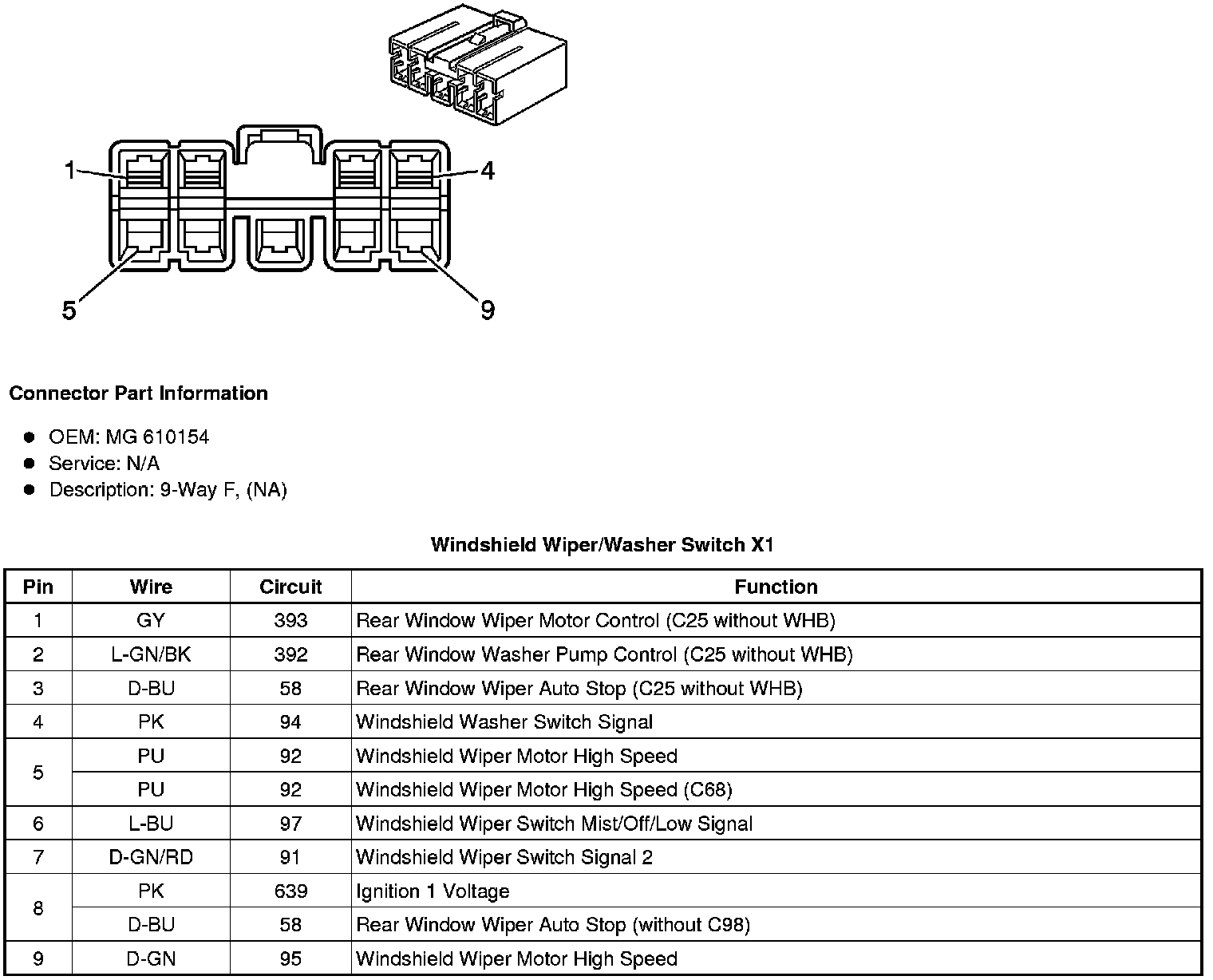

Windshield Wiper/Washer Switch X1

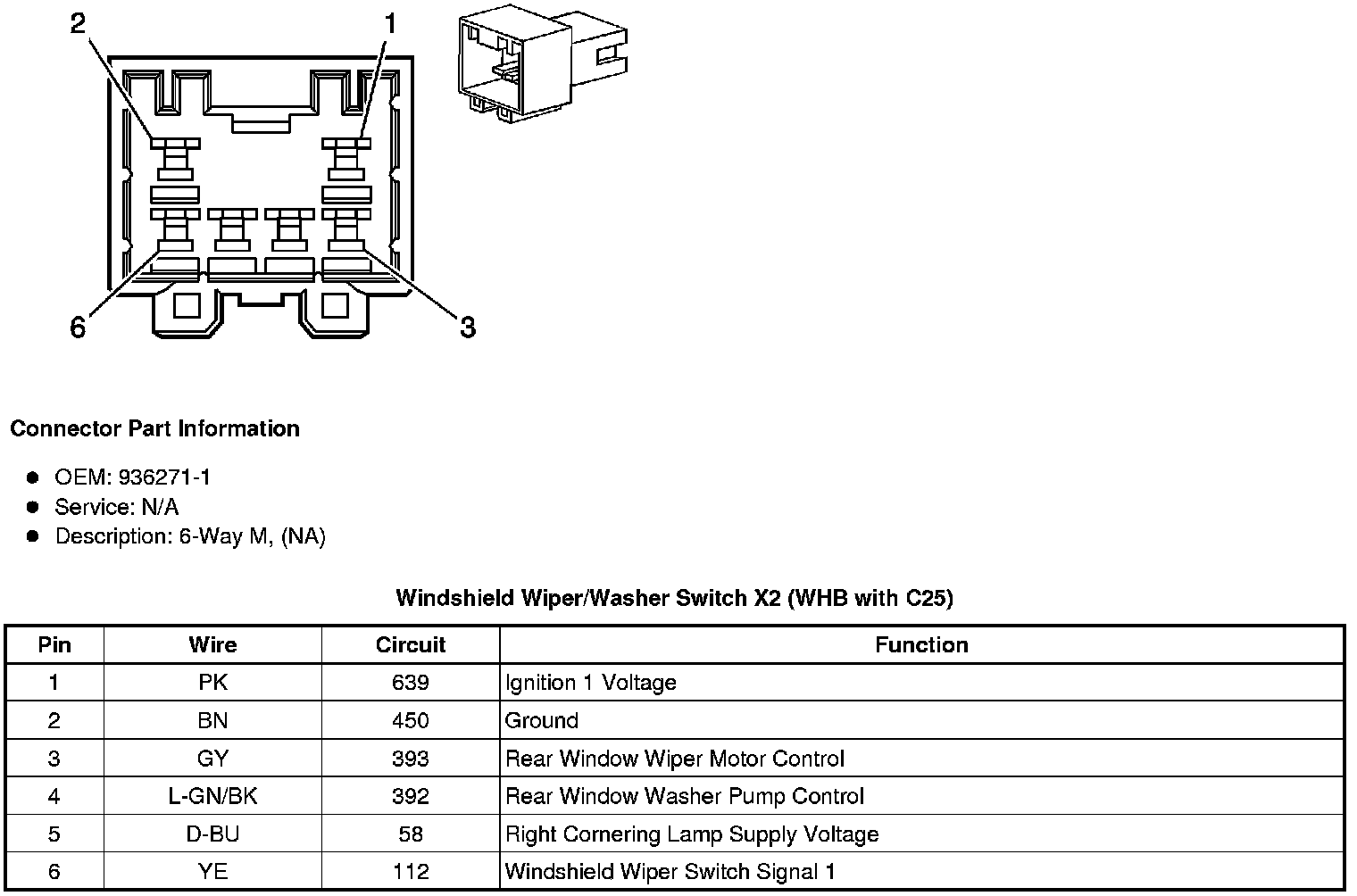

Windshield Wiper/Washer Switch X2 (WHB with C25)

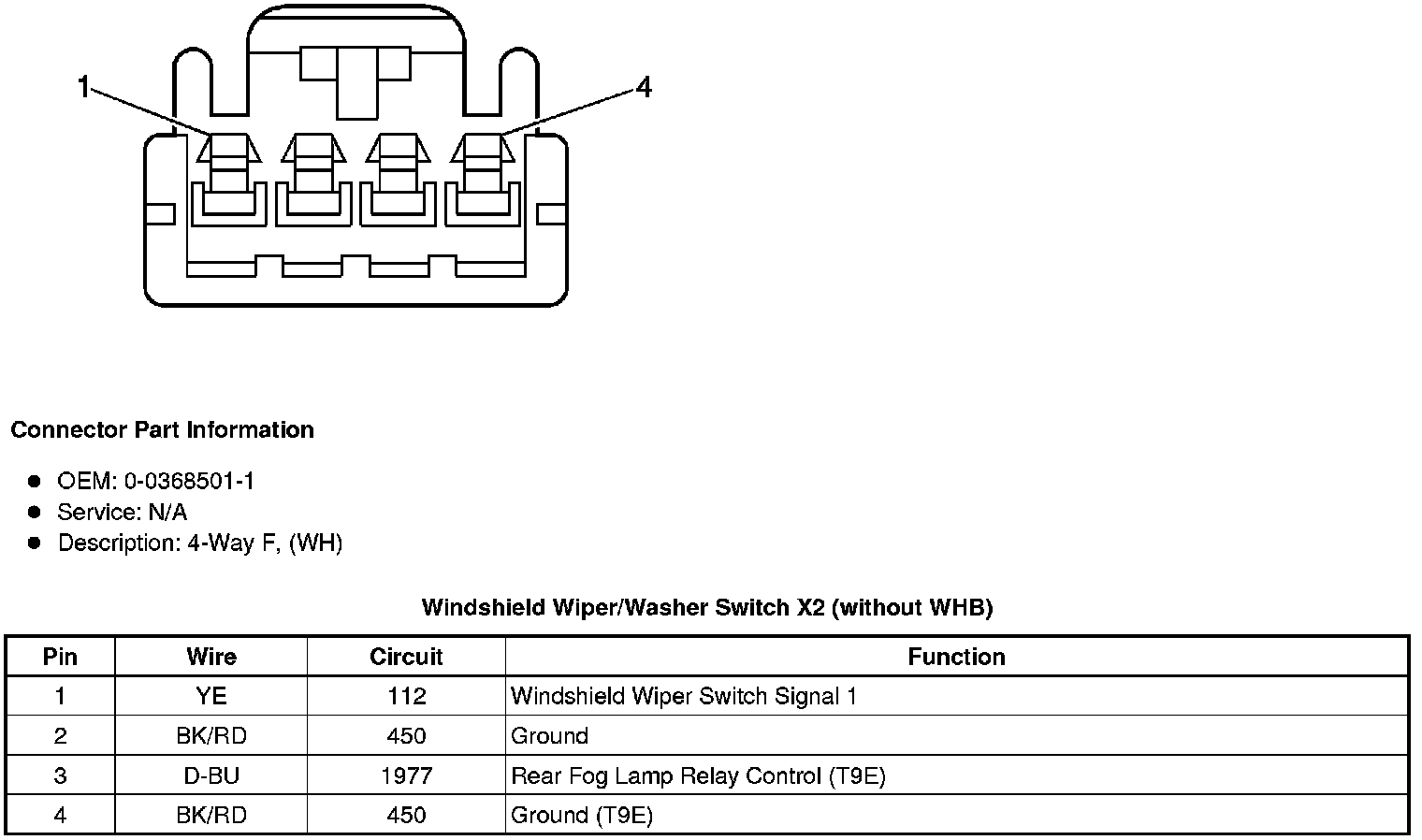

Windshield Wiper/Washer Switch X2 (without WHB)
