Trunk/Liftgate Sensor/Switch (For Alarm): Locations

Harness Routing Views

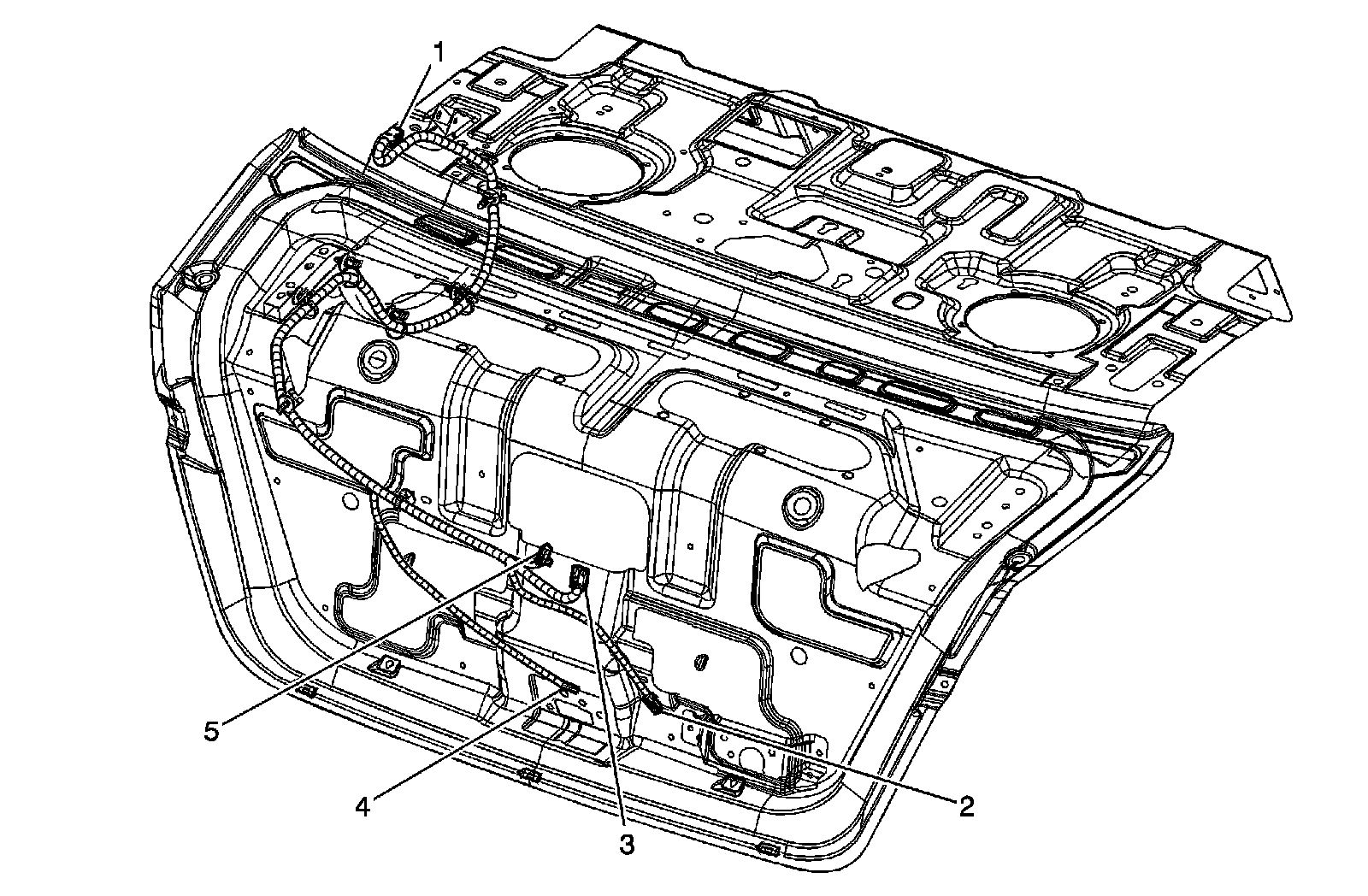

Trunk Harness Routing




1 - X402
2 - Rear Compartment Lid Tamper Switch
3 - Rear Compartment Lid Release Actuator
4 - Latch
5 - License Lamp
