Steering Mounted Controls Assembly: Service and Repair

Steering Wheel Control Switch Assembly Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.

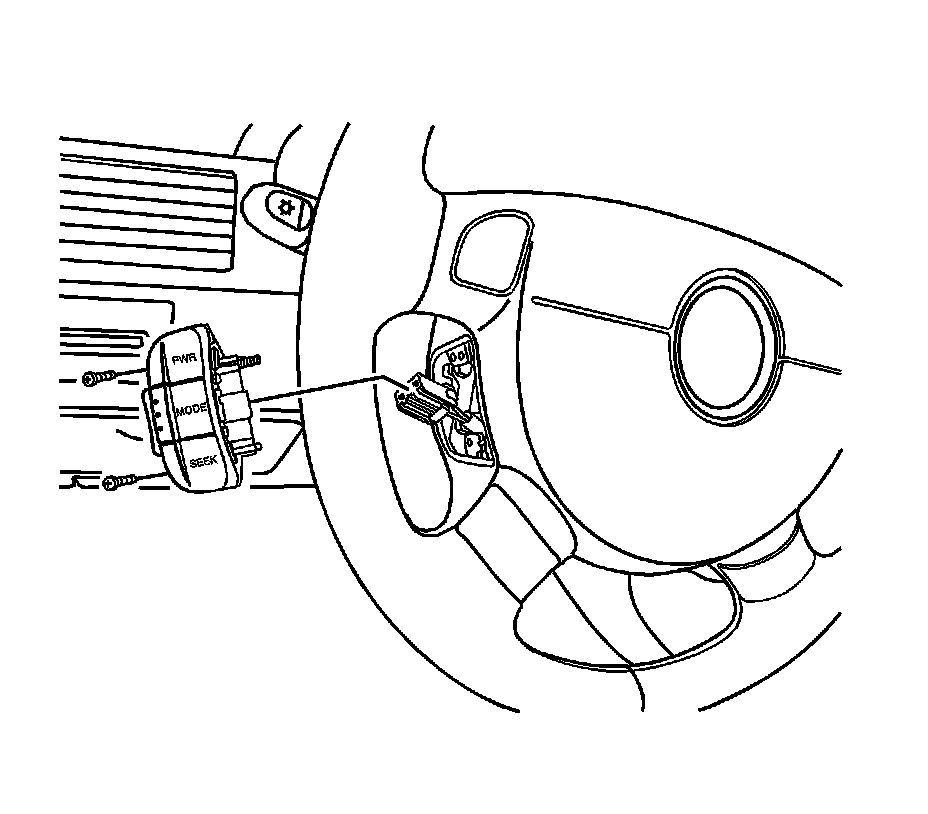

2. Remove the screws and the audio remote controller.

Installation Procedure




1. Install the audio remote controller with the screws.
2. Connect the negative battery cable.
