Home
>>
Pontiac
>>
2010
>>
G3 L4-1.6L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
>>

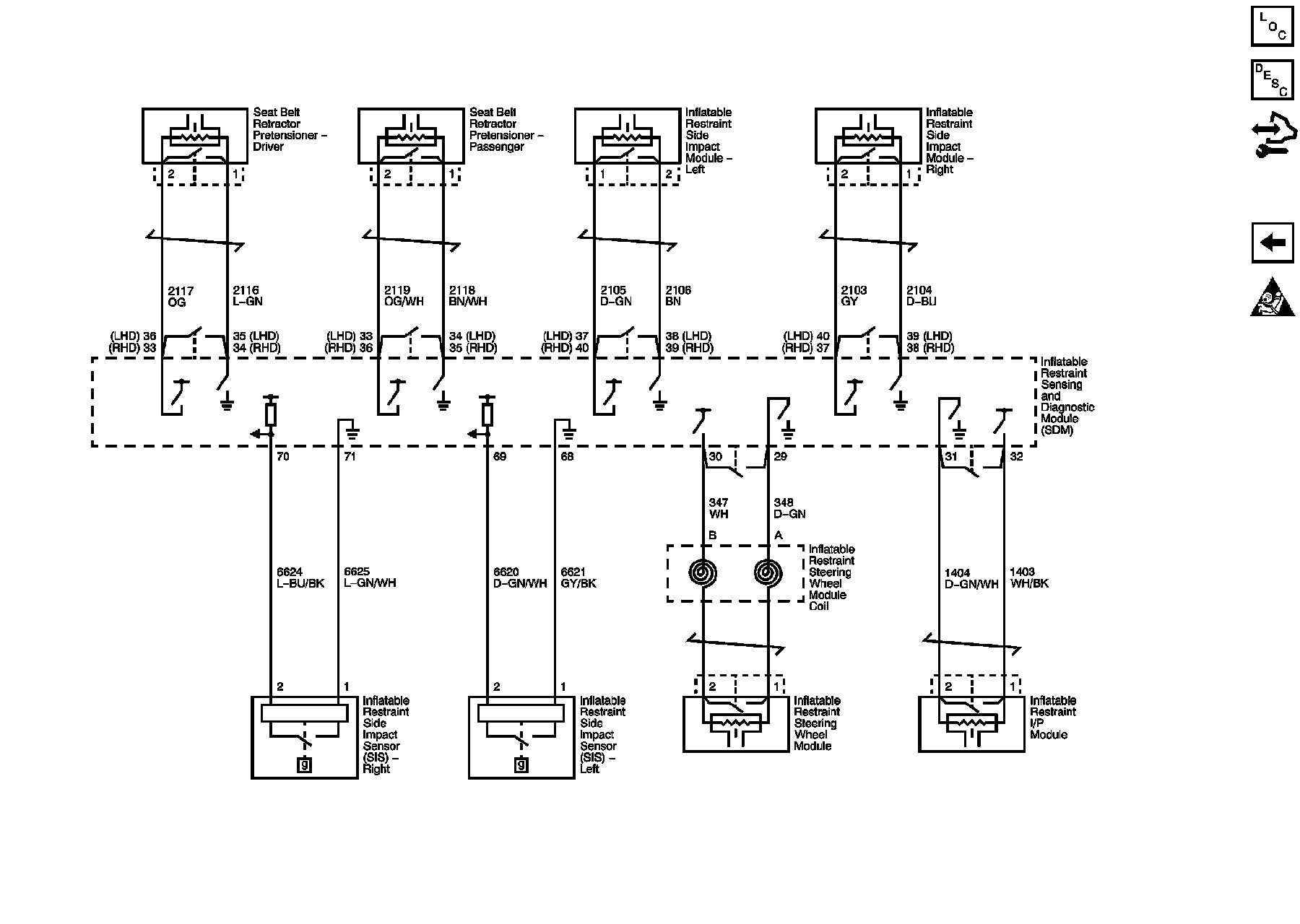

SIR Schematics (without WHB)
SIR Schematics (without WHB)
SIR Schematics (without WHB)
Power, Ground, Serial Data
Sensors and Modules
