Instrument Cluster Schematics (with WHB)

Instrument Cluster Schematics (with WHB)

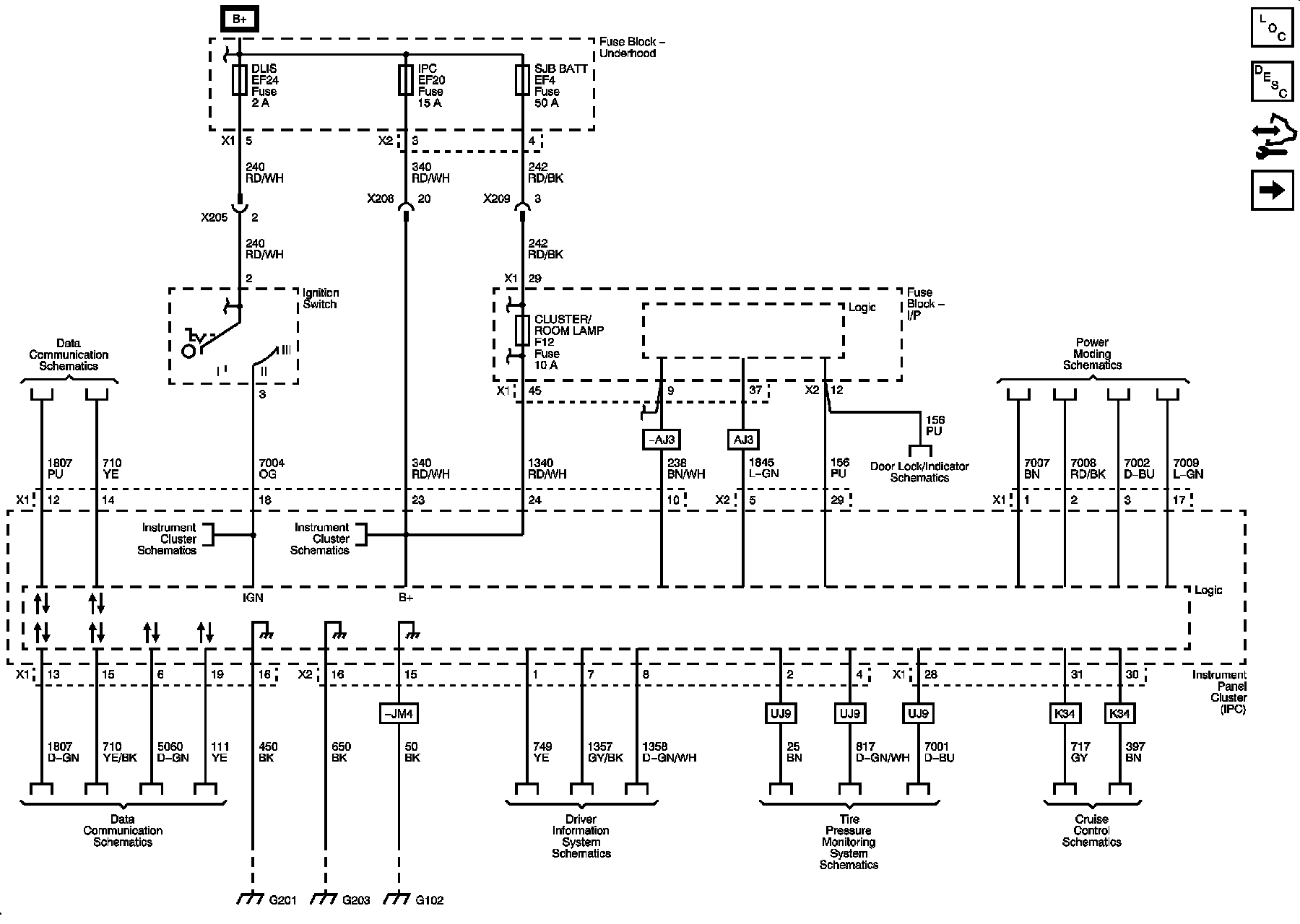

Power, Ground, Data Communication

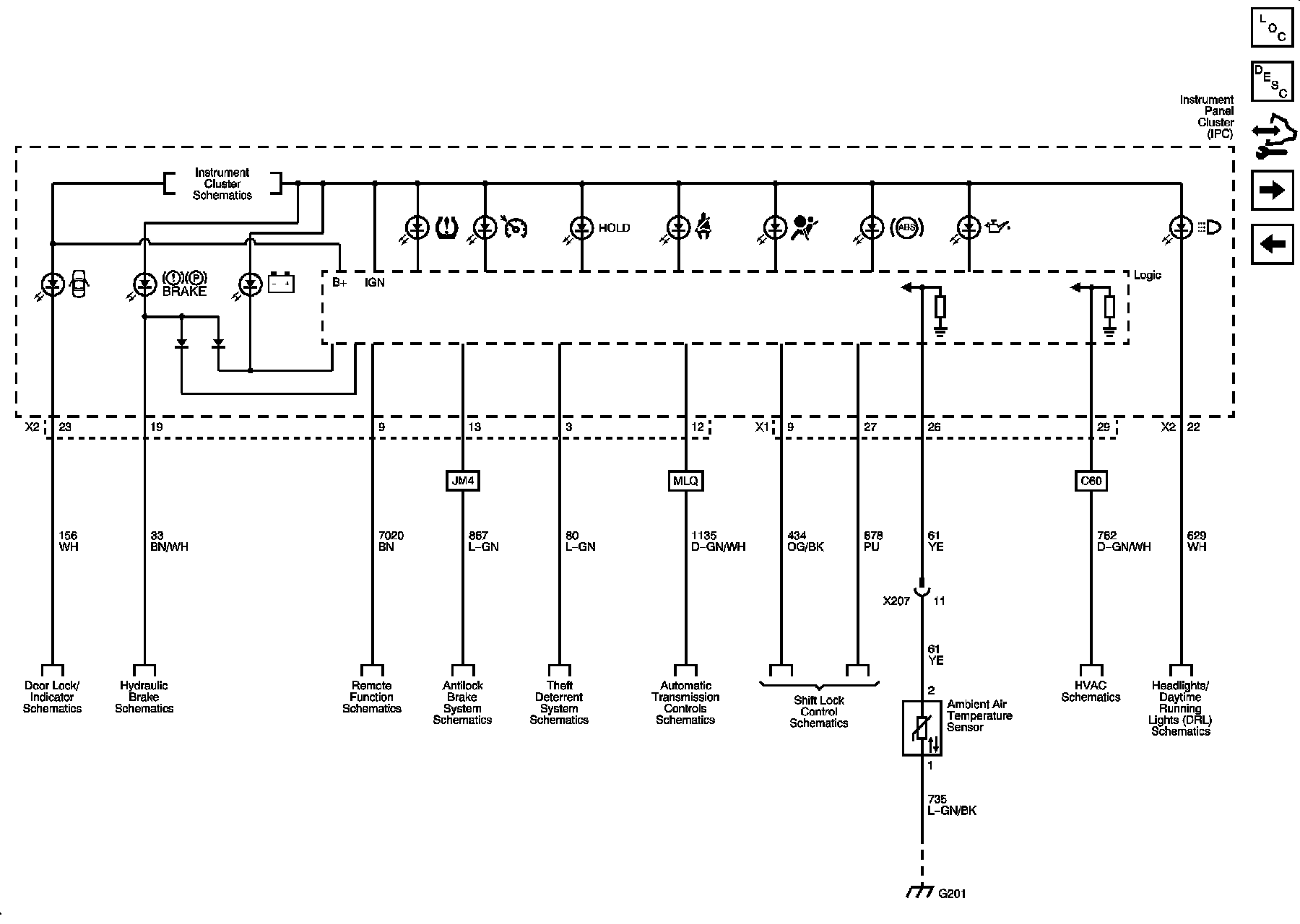

Indicators

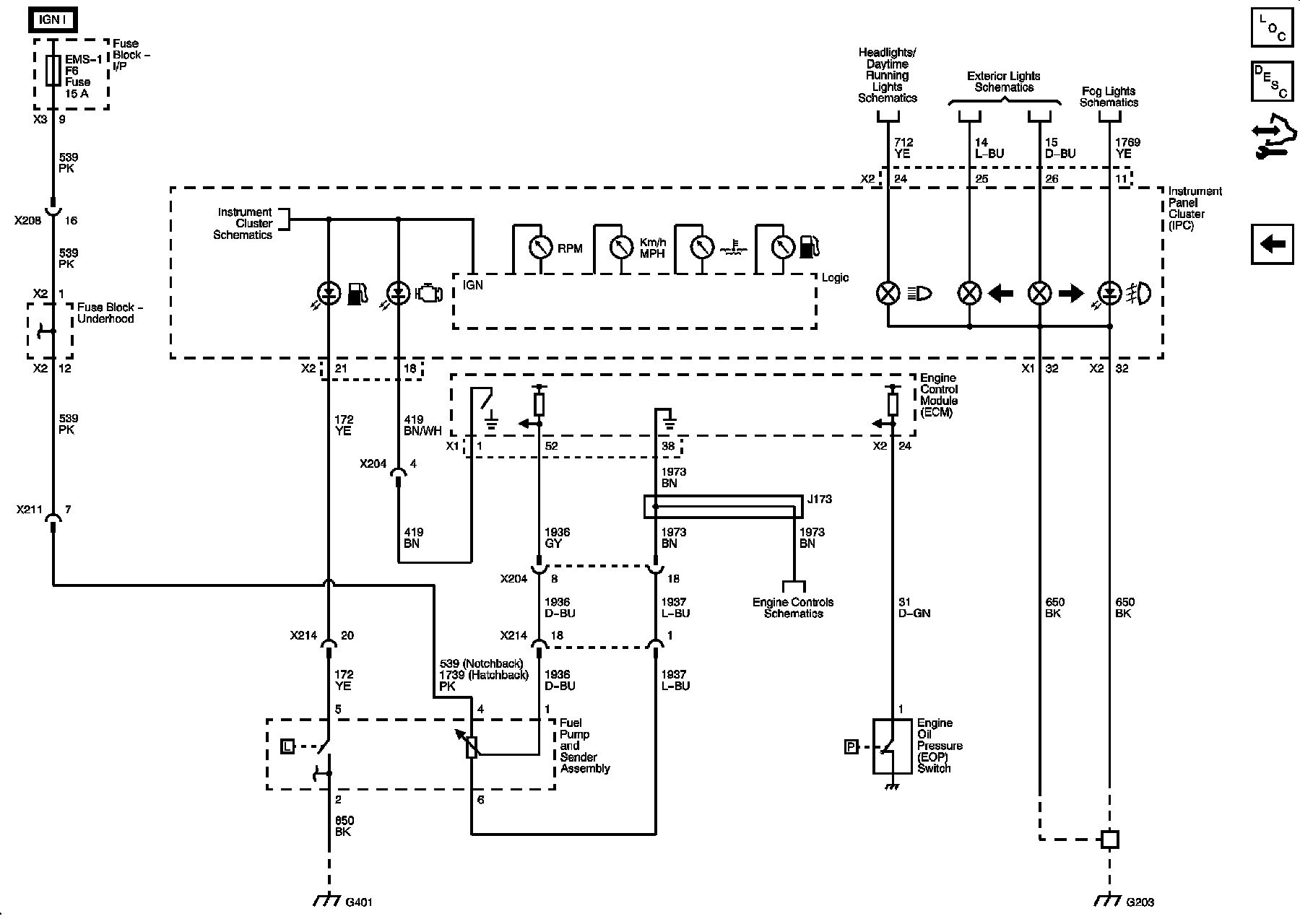

Gages and Indicators
