Driver Information System Schematics




Driver Information System Schematics

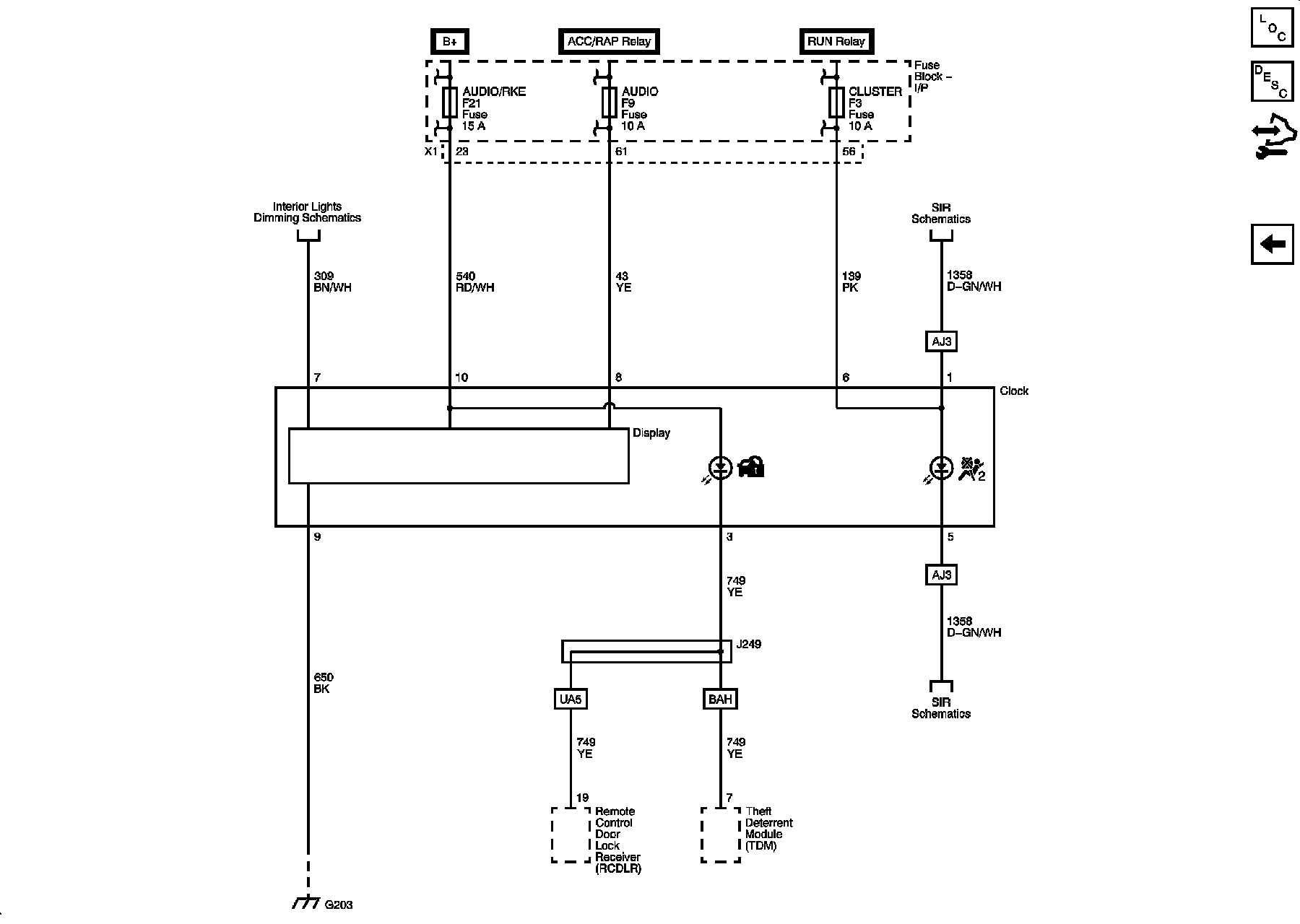

Driver Information Center (WHB)

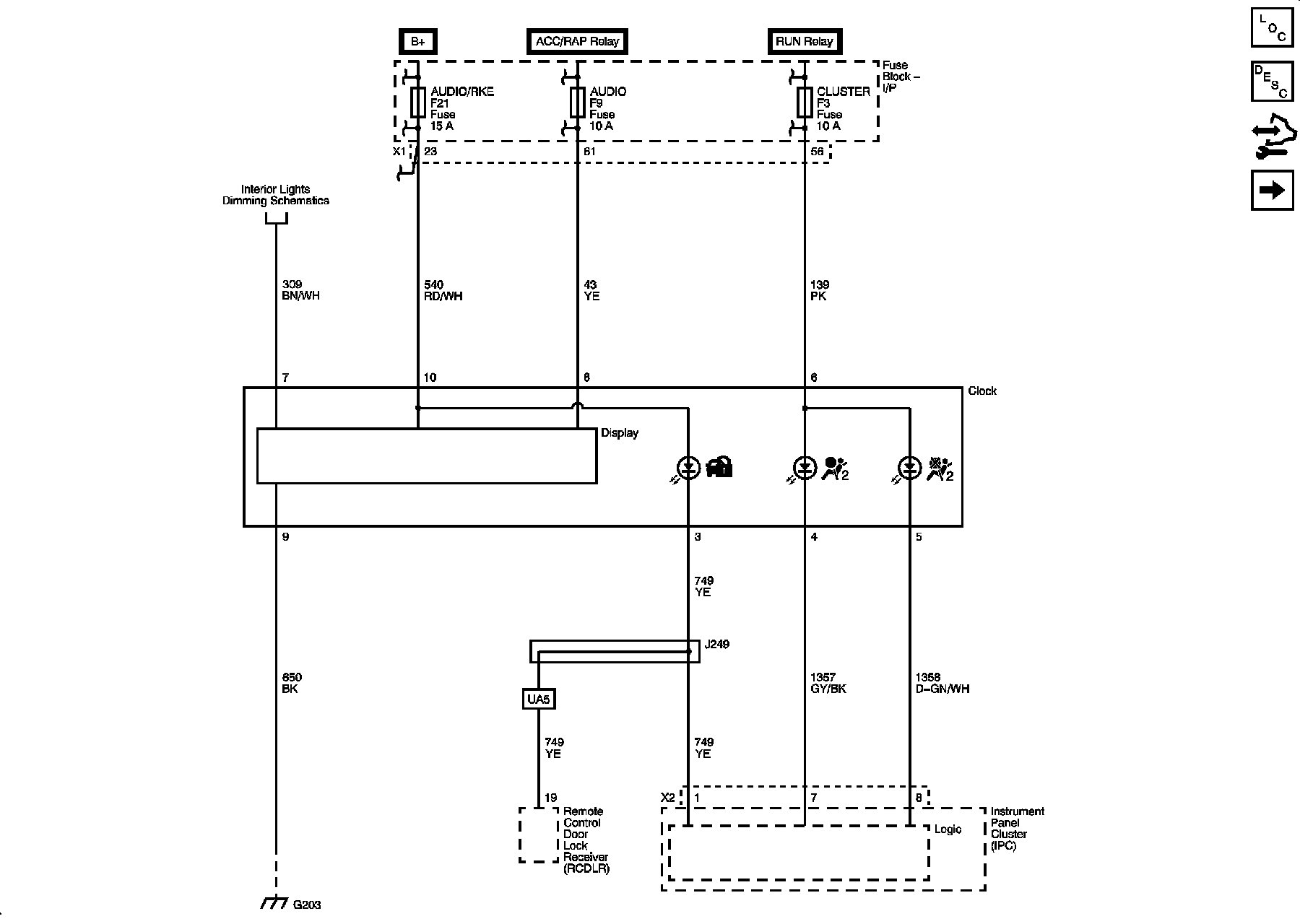

Driver Information Center (without WHB)
