Home >> Pontiac >> 2010 >> G3 L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram

System Diagram

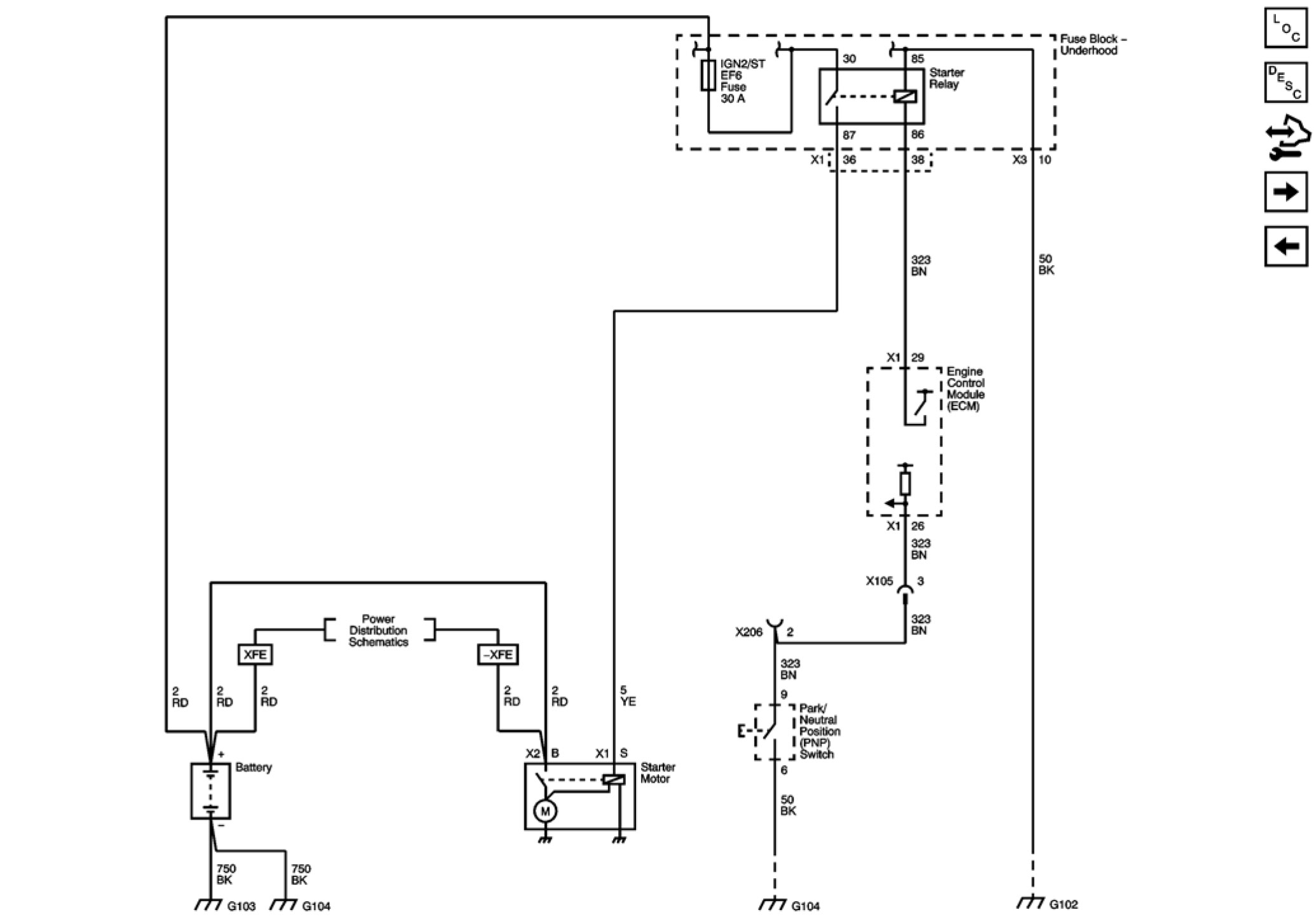

Starting System (WHB)

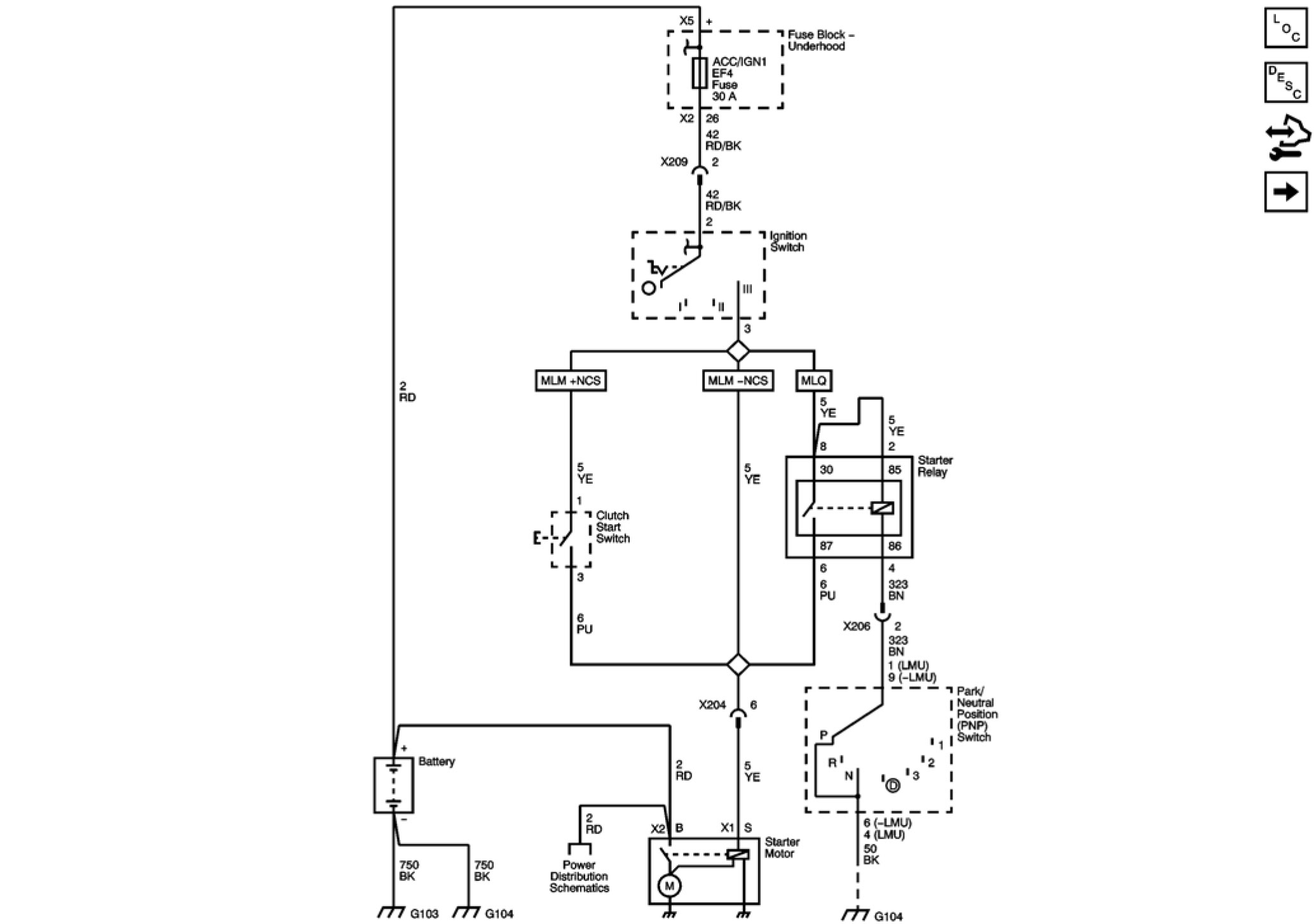

Starting System (without WHB)

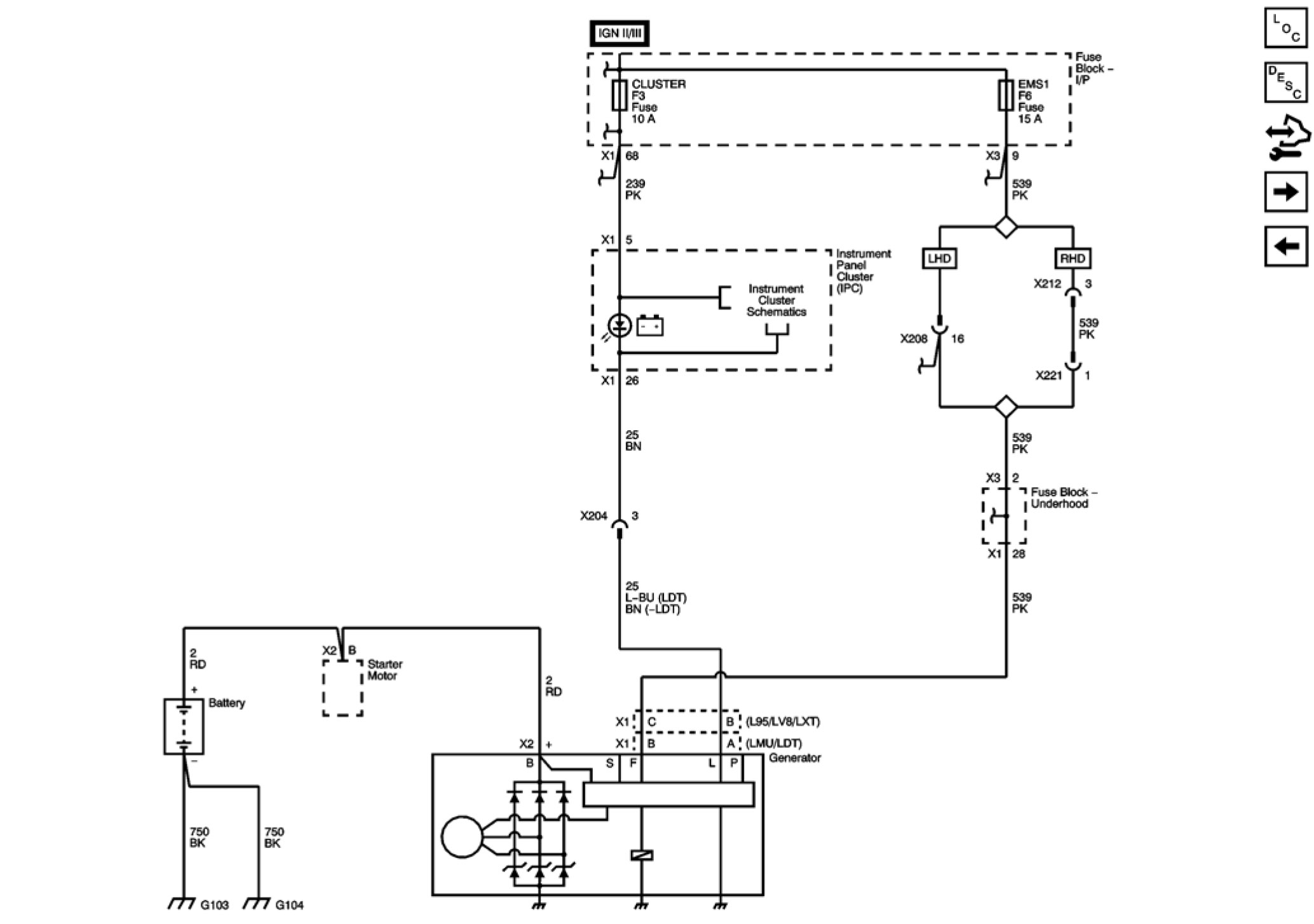

Charging System (WHB)







Charging System (without WHB)
