Exterior Lights Schematics (without WHB)

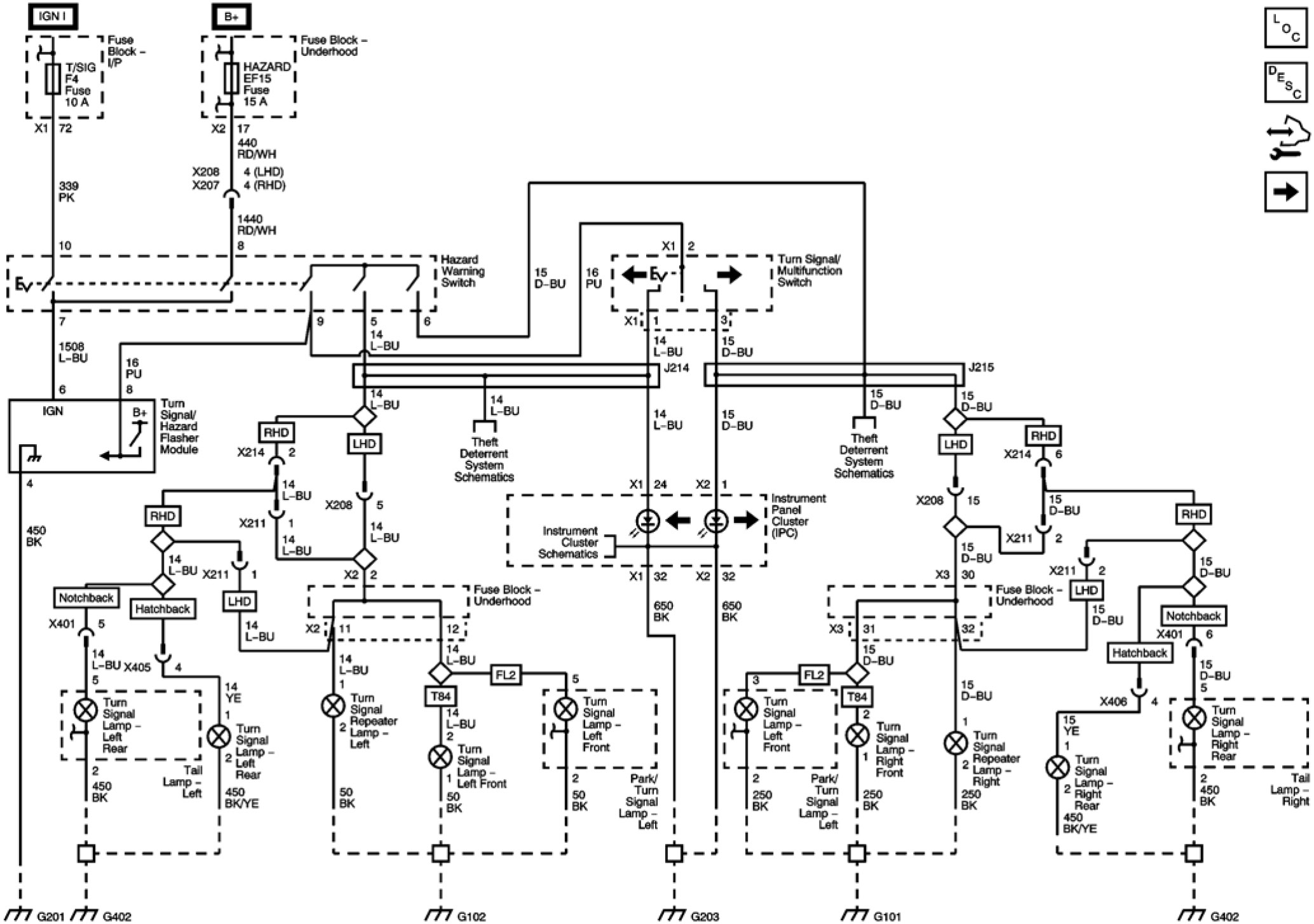

Turn Signal and Hazard Warning Lamps

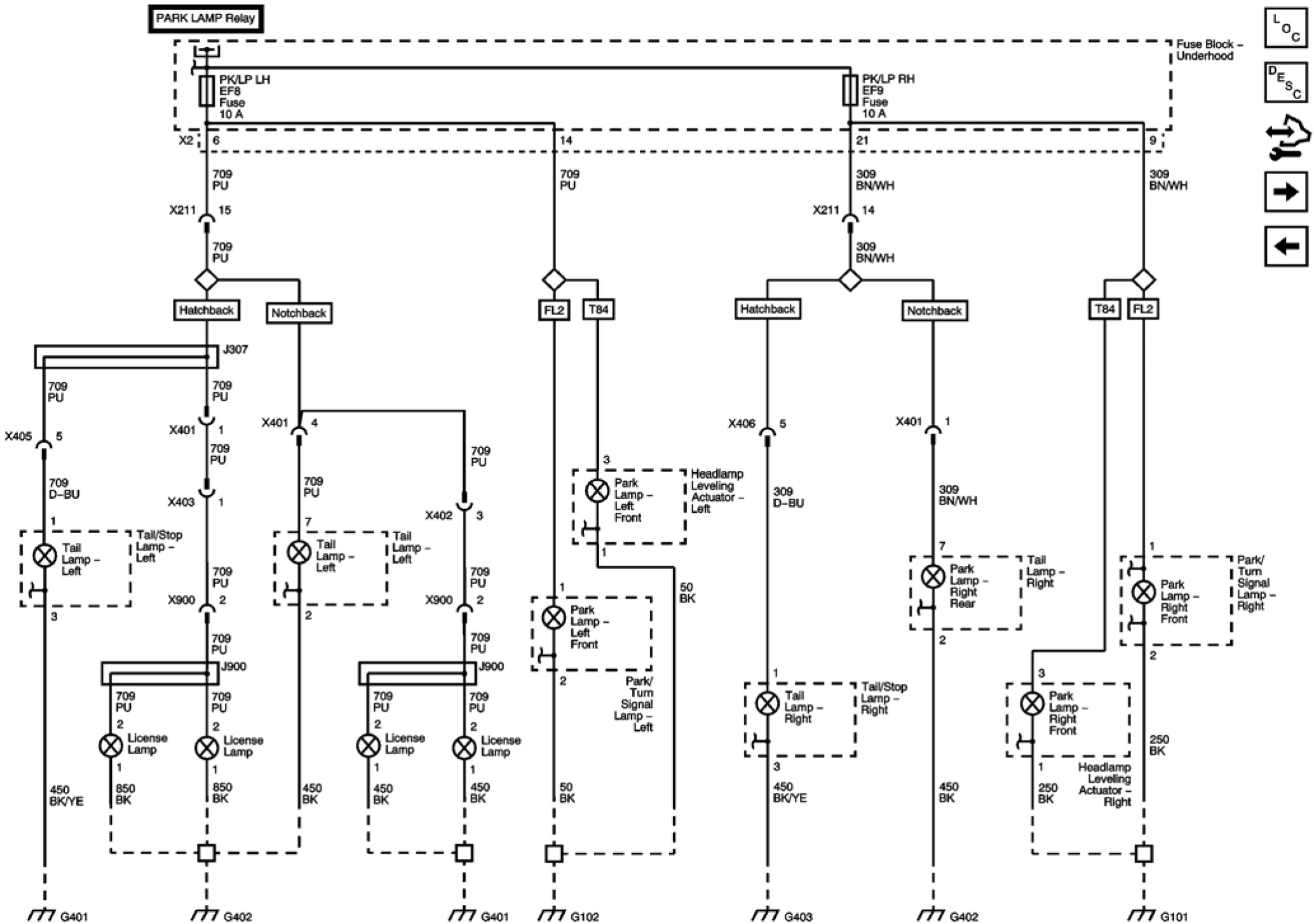

Park and Tail Lamps

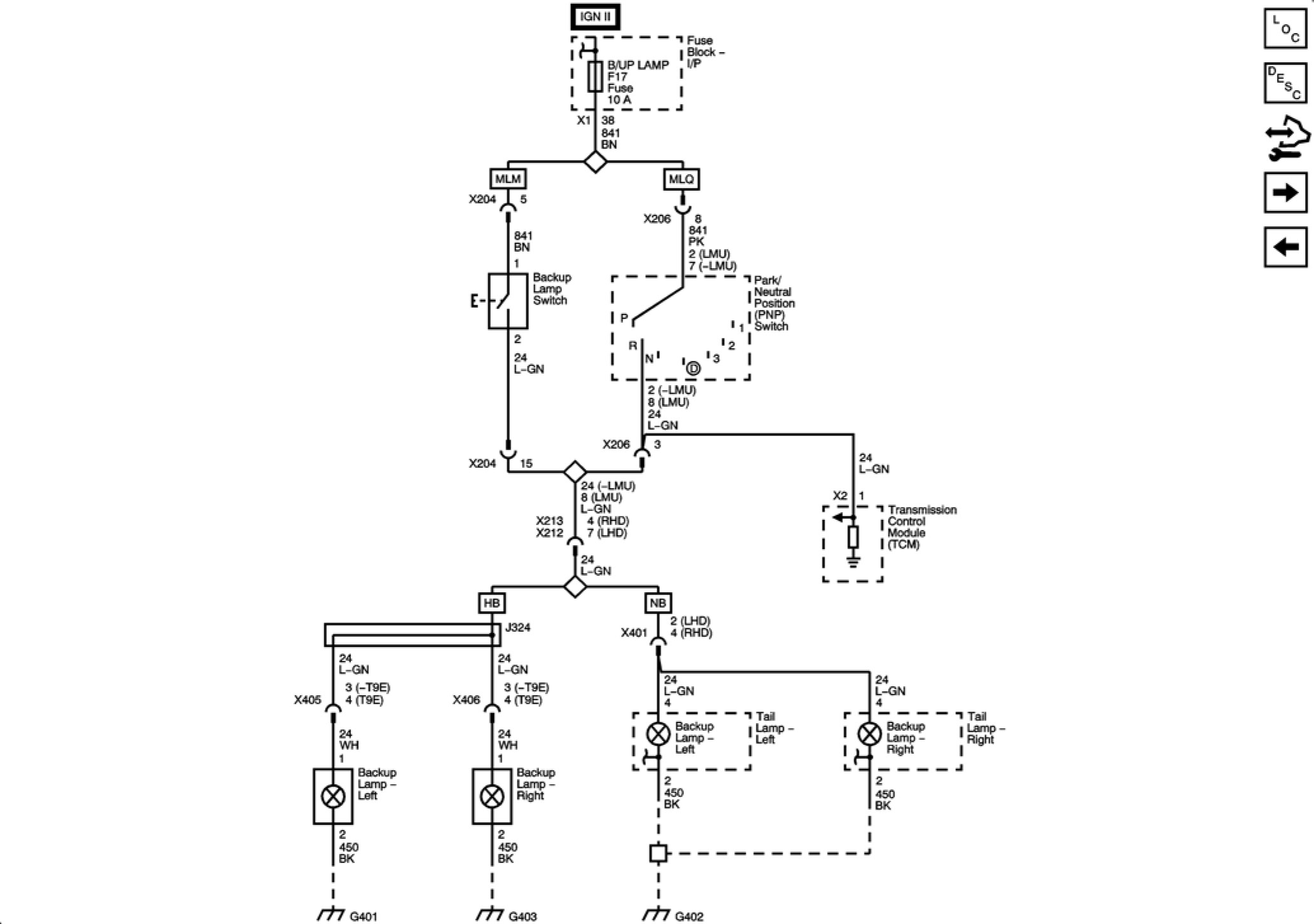

Backup Lamps

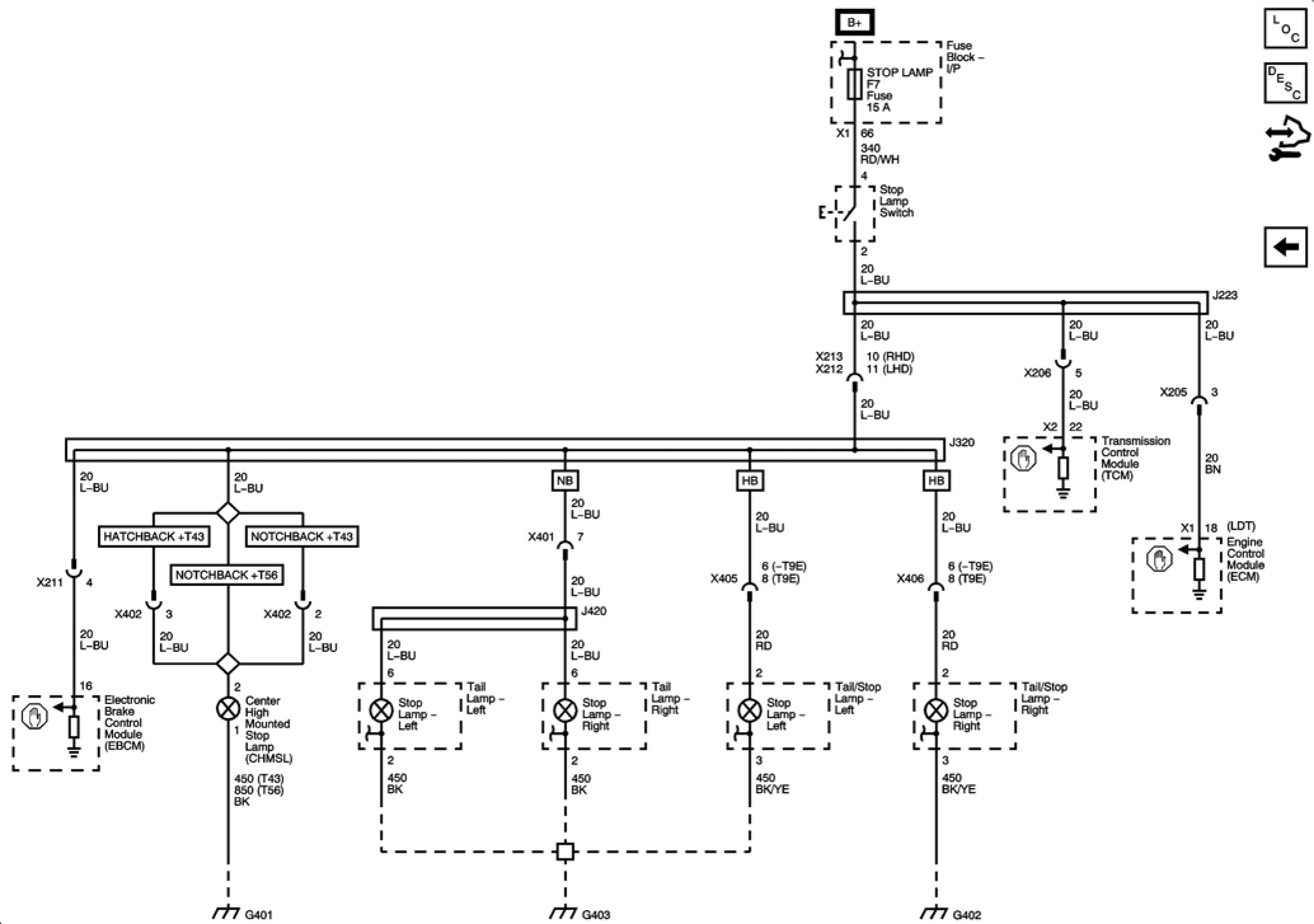

Stop Lamps
