HVAC Schematics (with WHB)

HVAC Schematics (with WHB)

Power, Ground, Subsystem References

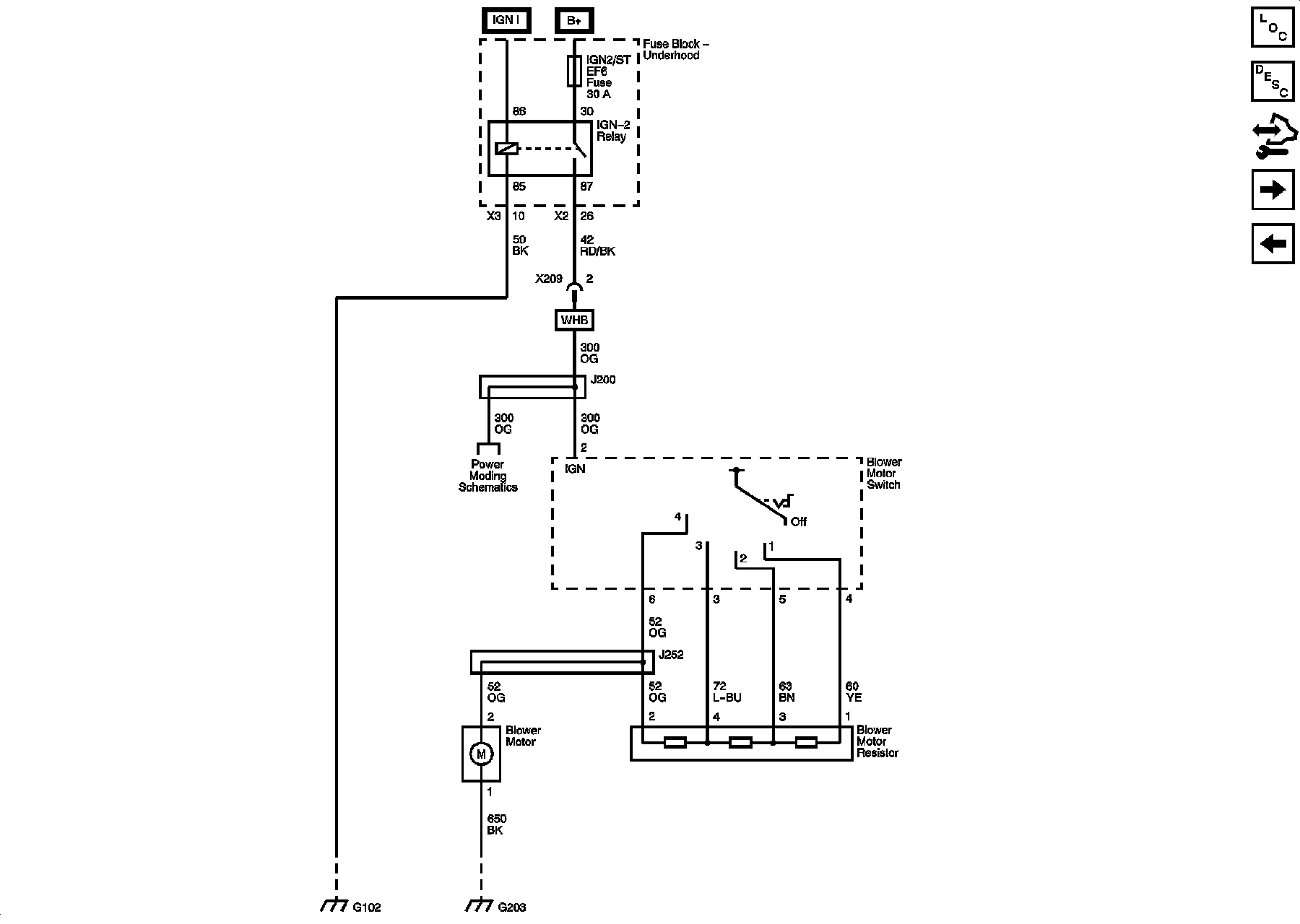

Blower Controls

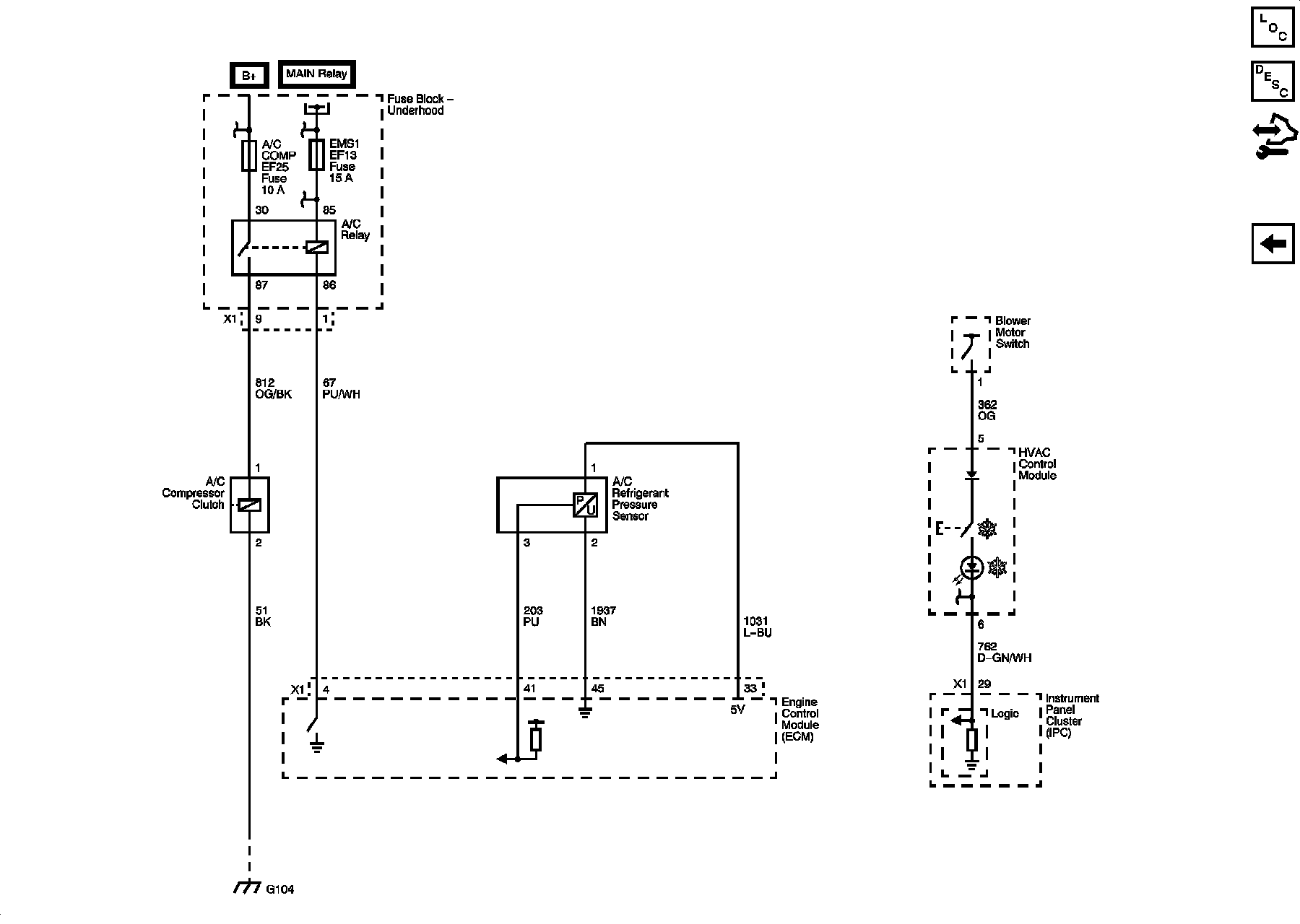

Compressor Controls
