Ignition Control Module




Component Connector End Views

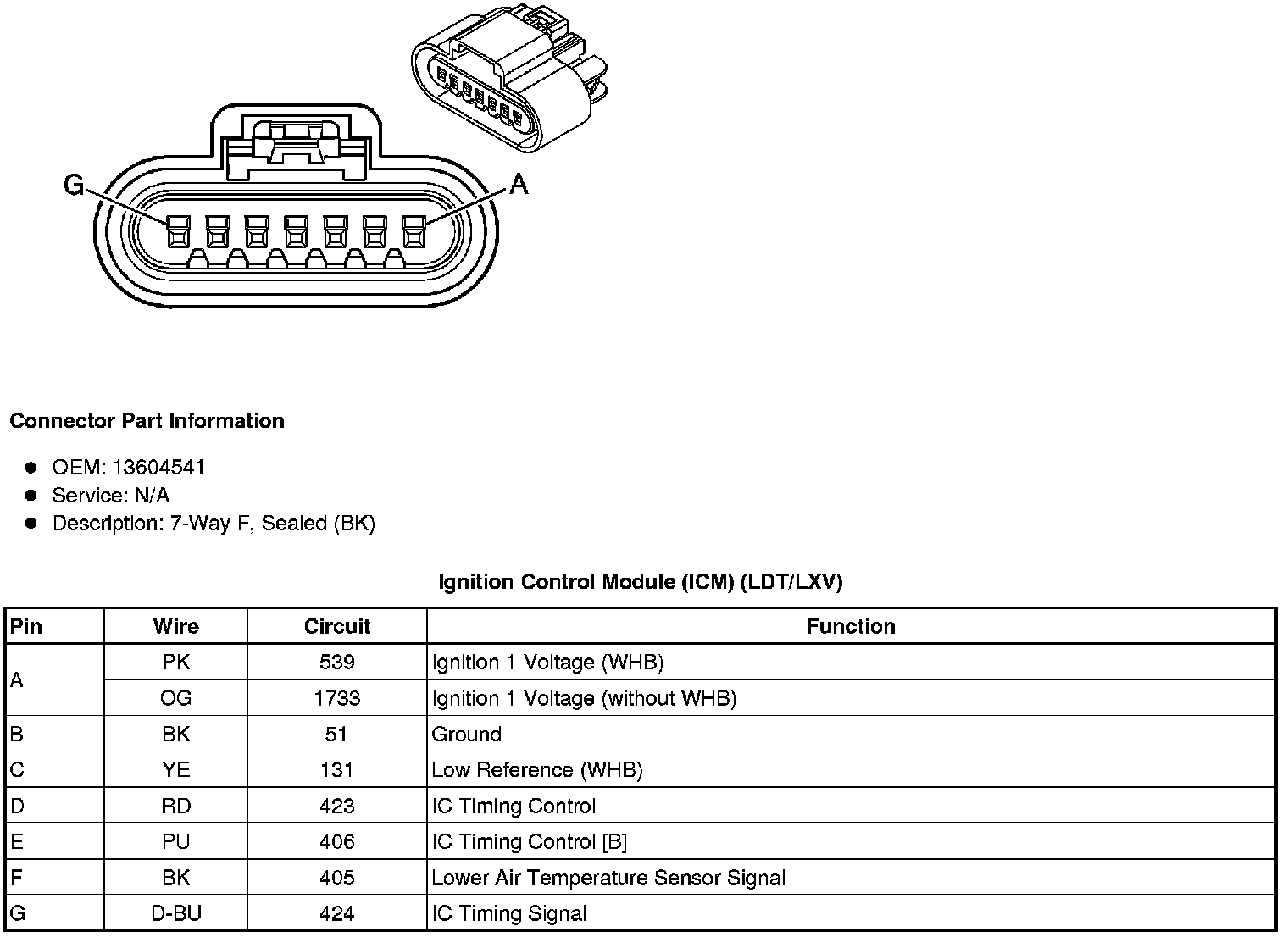

Ignition Control Module (ICM) (LDT/LXV)





Ignition Control Module (ICM) (without LDT/LXV)
