Home >> Pontiac >> 2010 >> G3 L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram

System Diagram




Component Connector End Views

Overhead Console Courtesy/Reading Lamps (CF5)

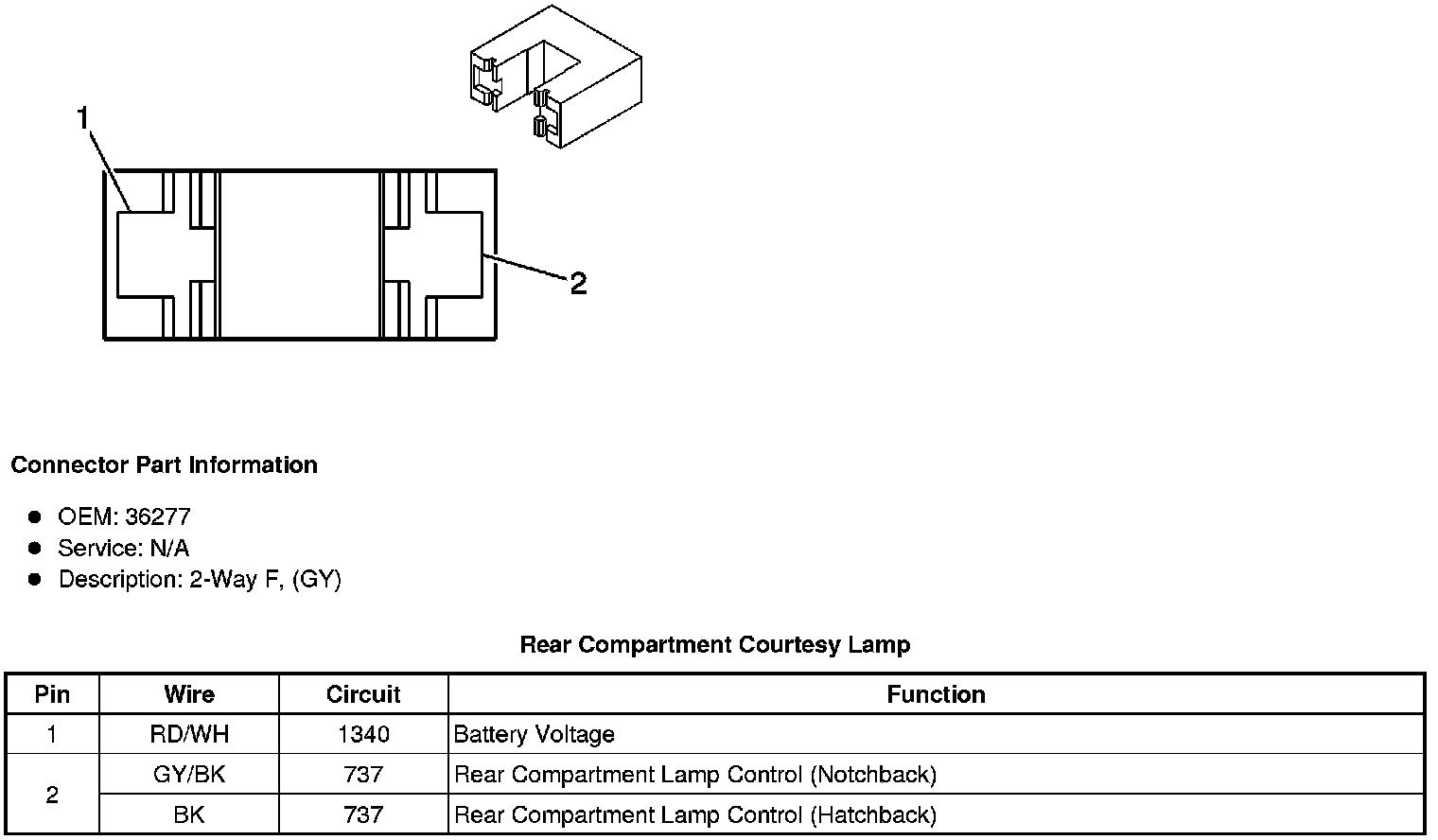

Rear Compartment Courtesy Lamp
