Central Control Module




Component Connector End Views

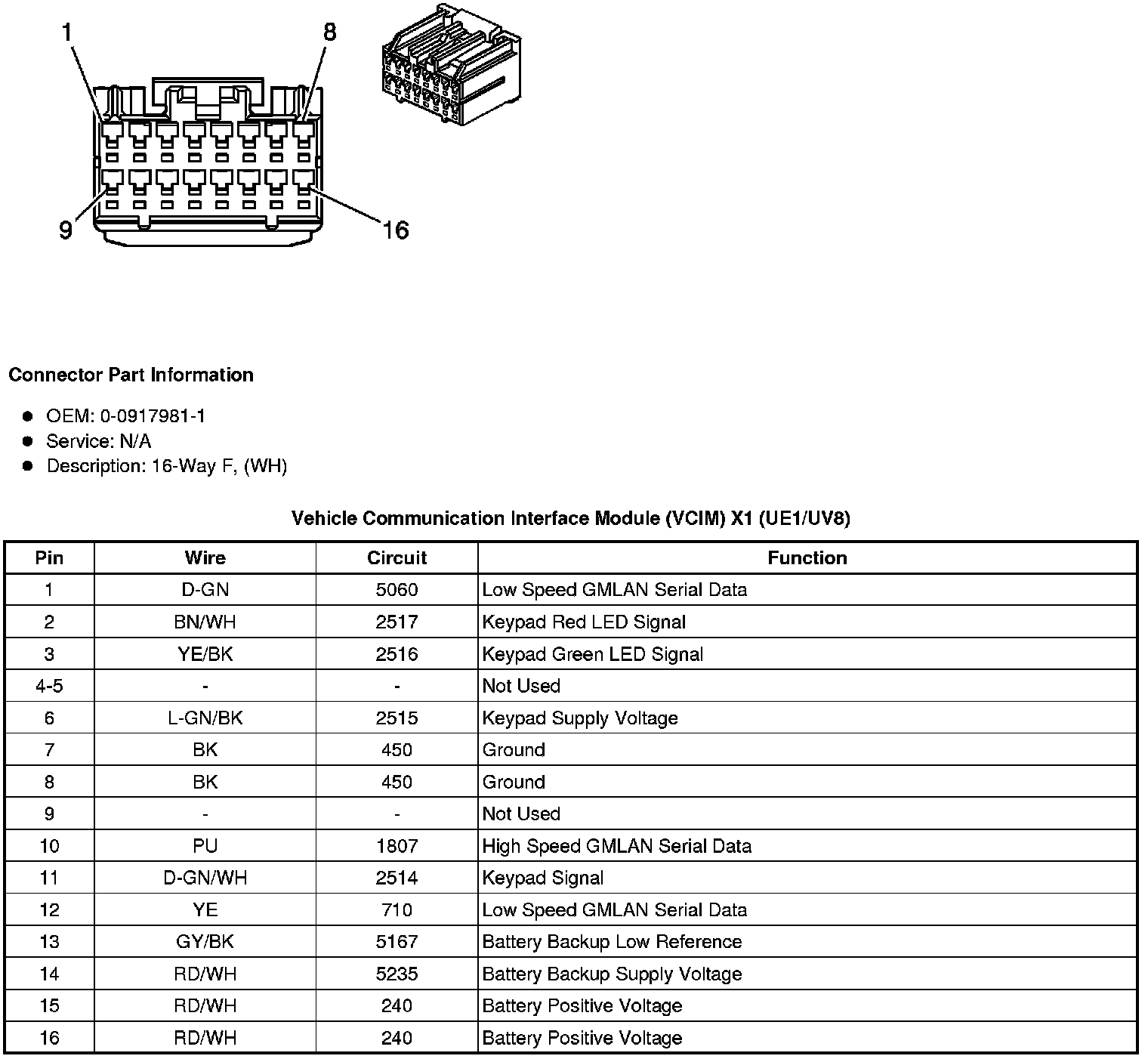

Vehicle Communication Interface Module (VCIM) X1 (UE1/UV8)

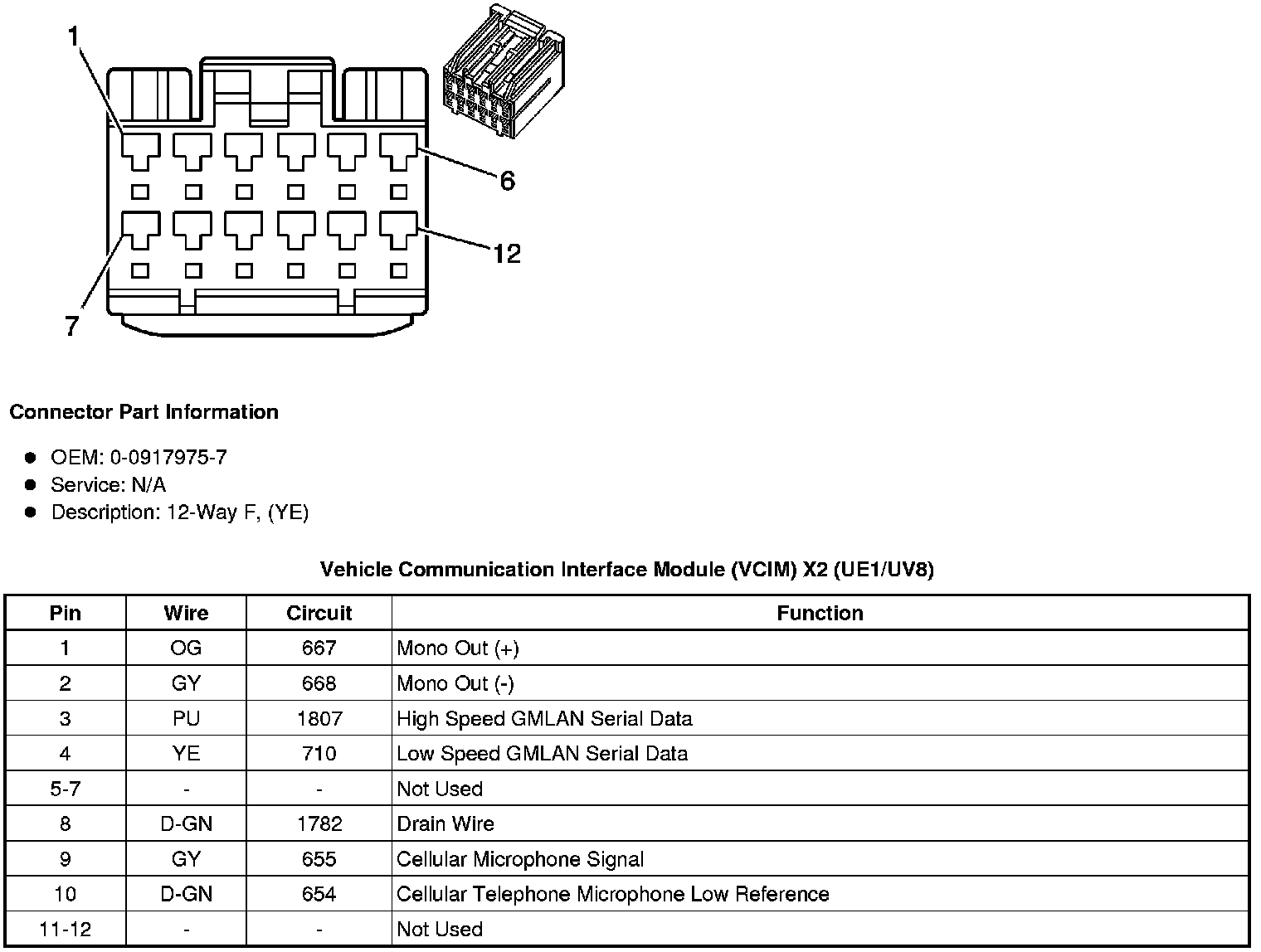

Vehicle Communication Interface Module (VCIM) X2 (UE1/UV8)

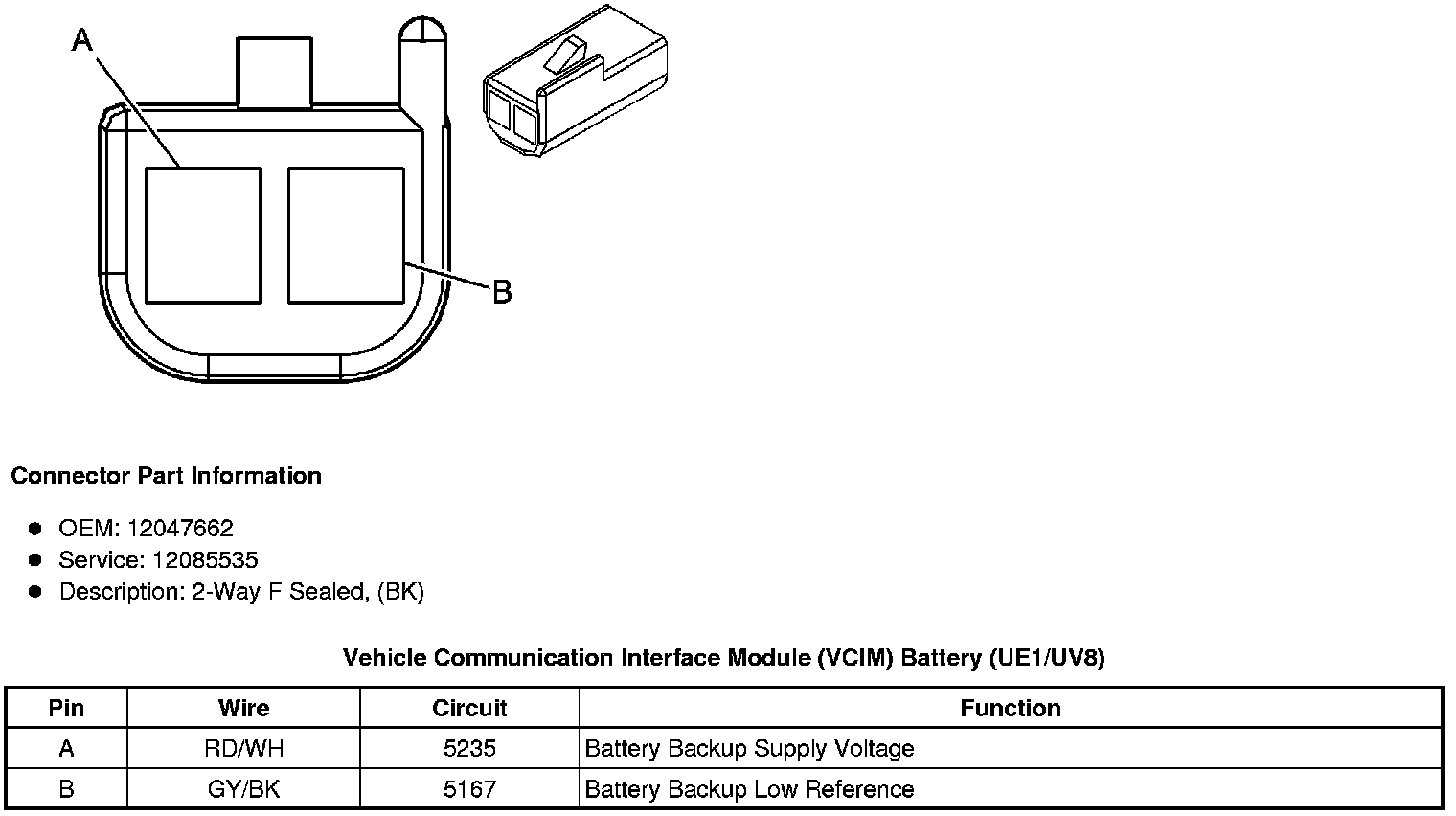

Vehicle Communication Interface Module (VCIM) Battery (UE1/UV8)
