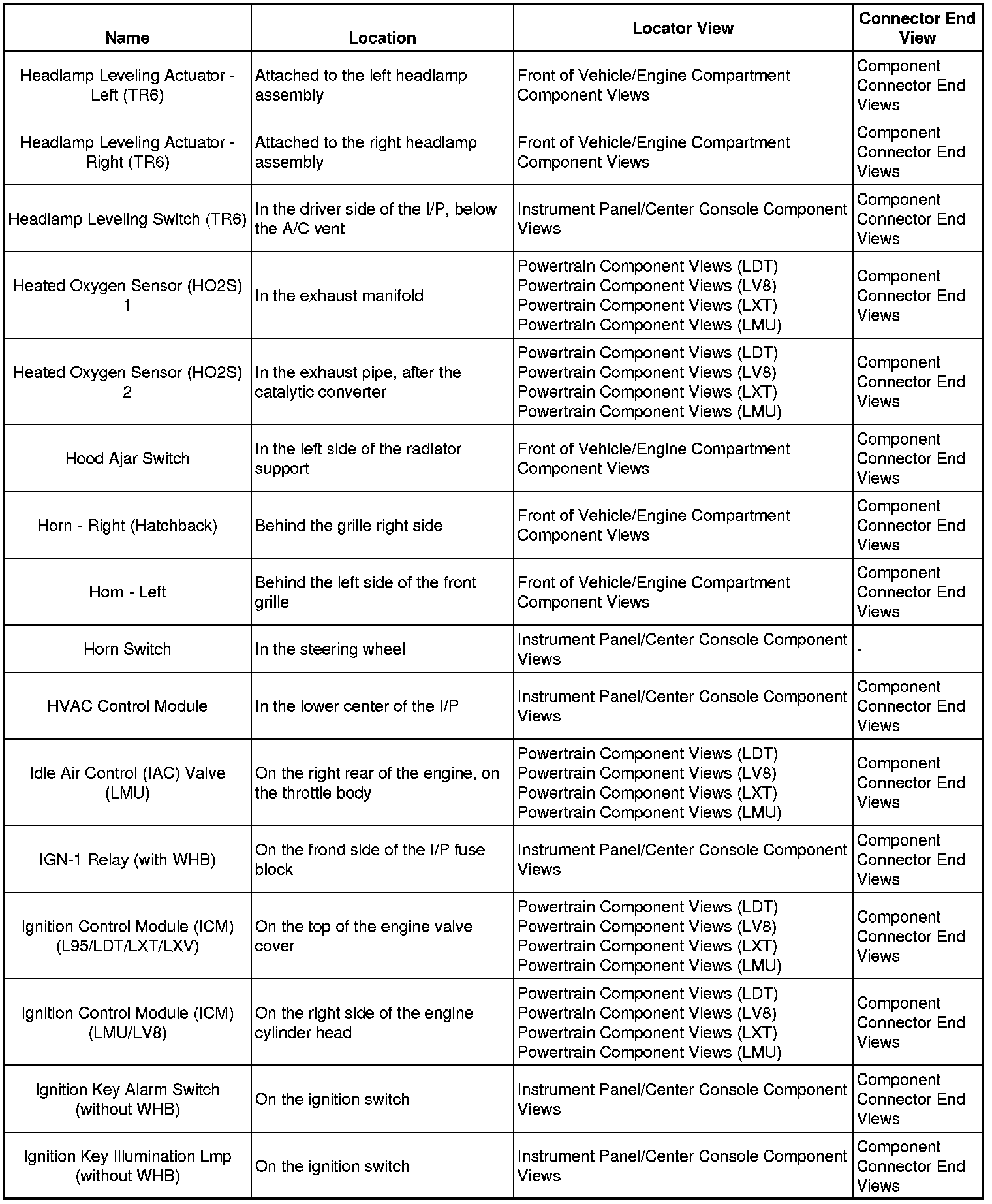

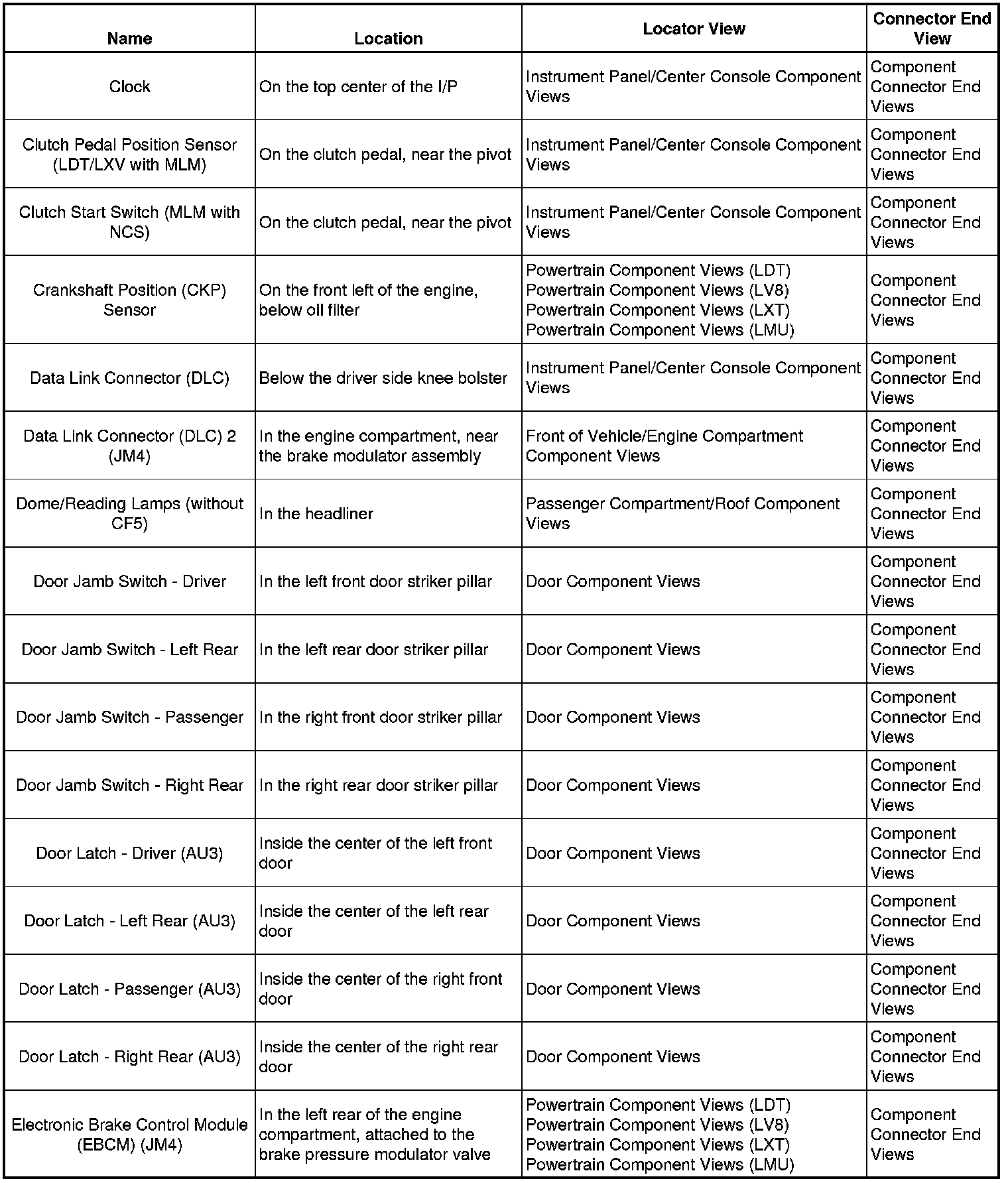

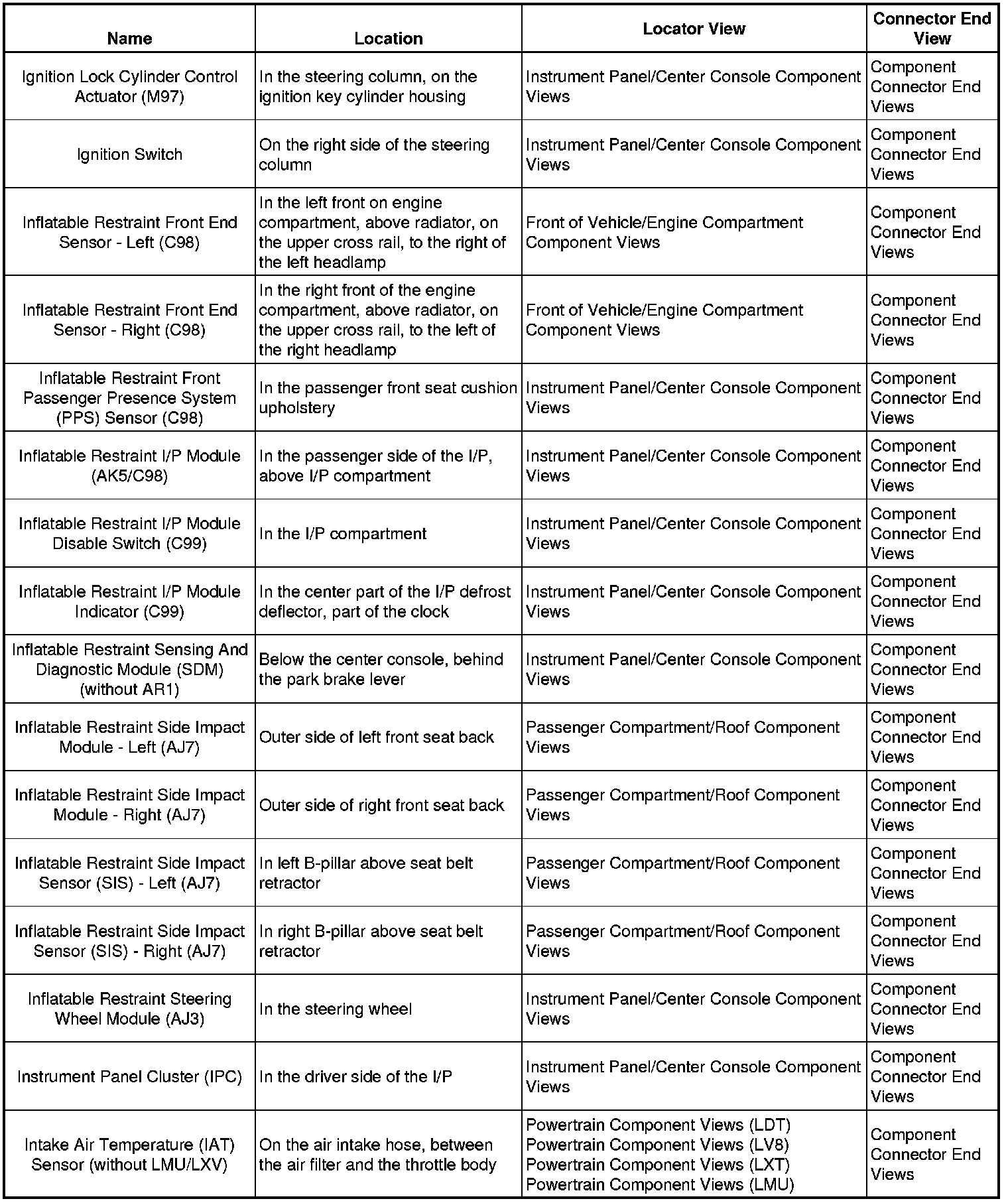

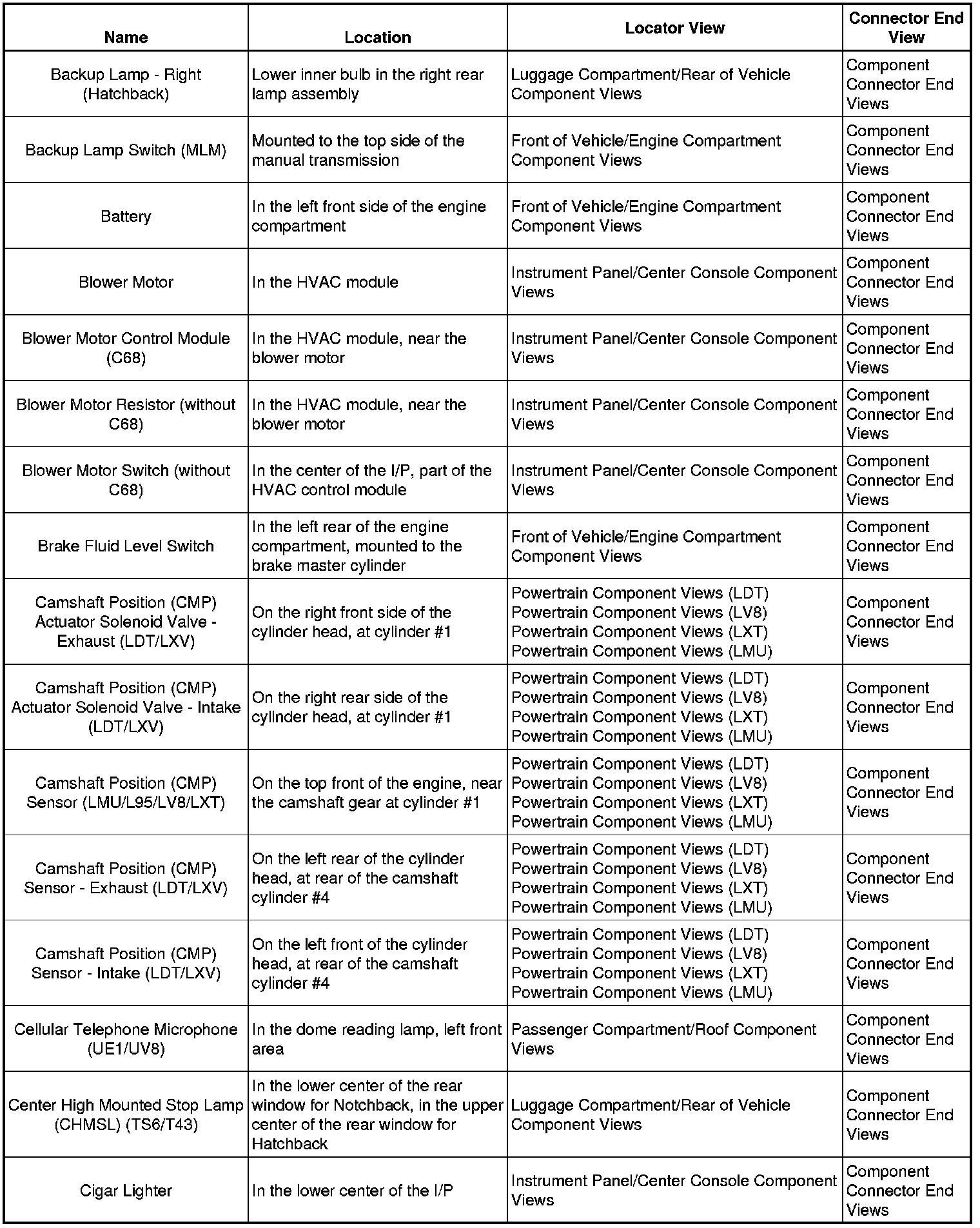

Master Electrical Component List

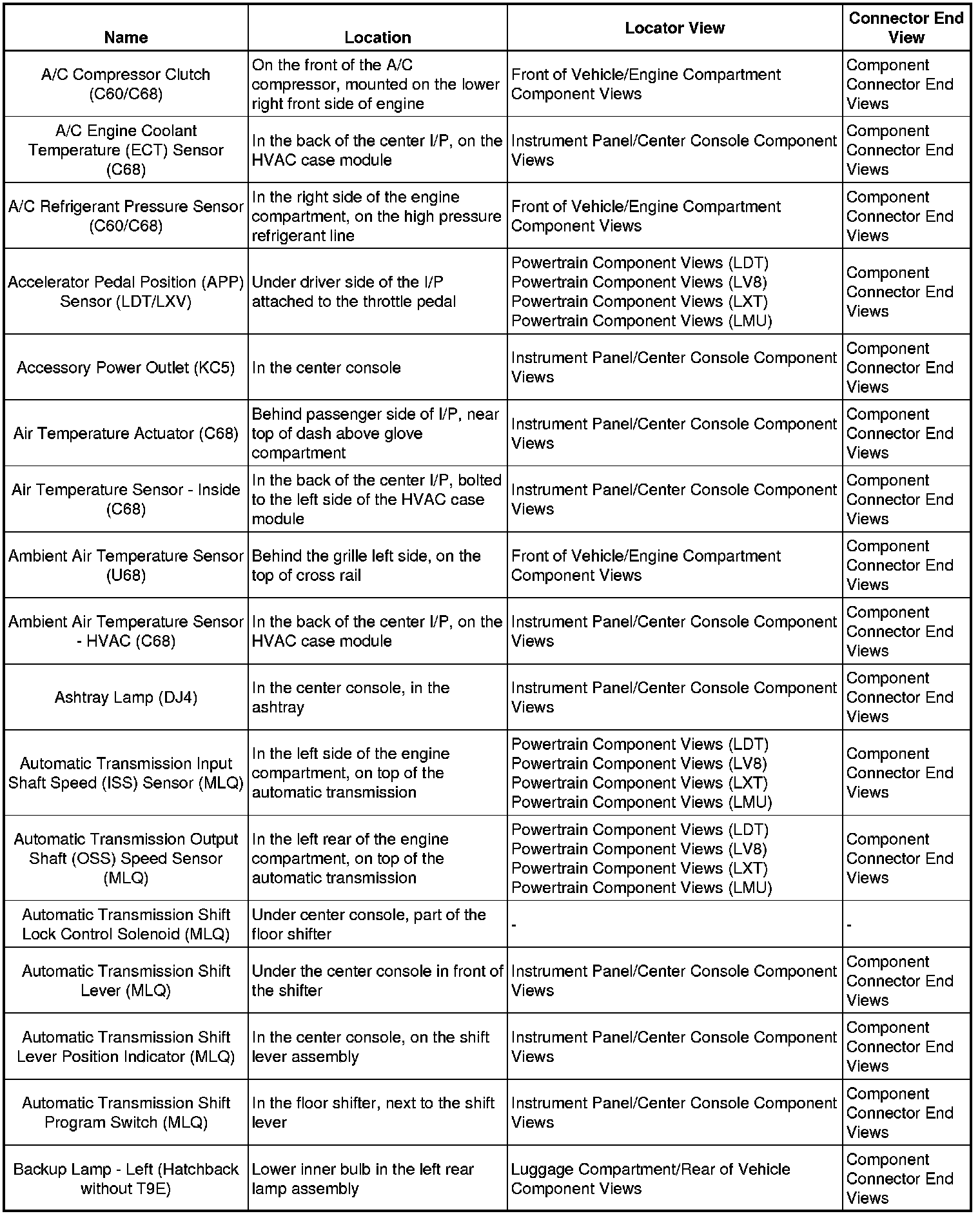

A/C - BA:
BA - CI:
CL - EL:

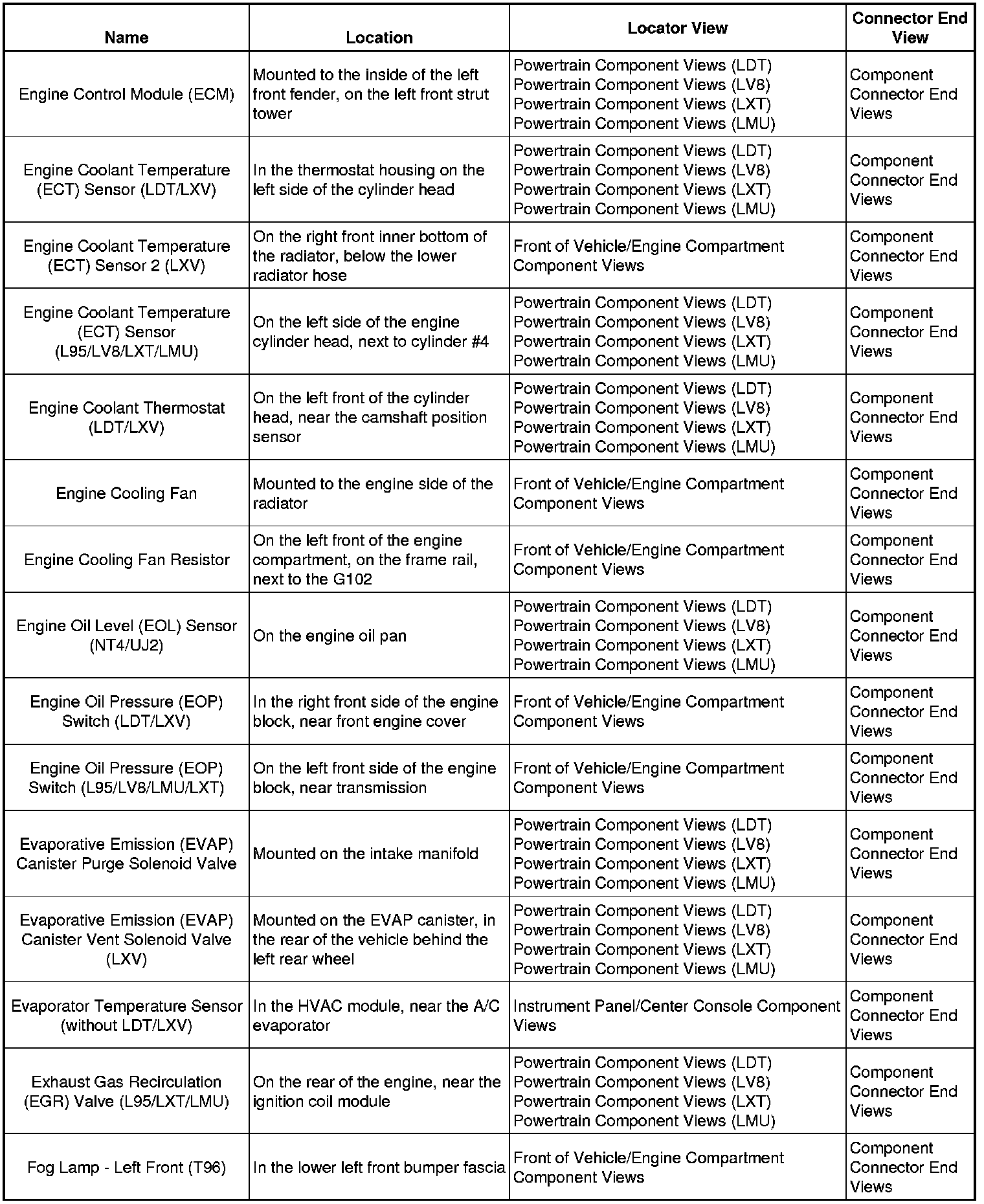

EN - FO:

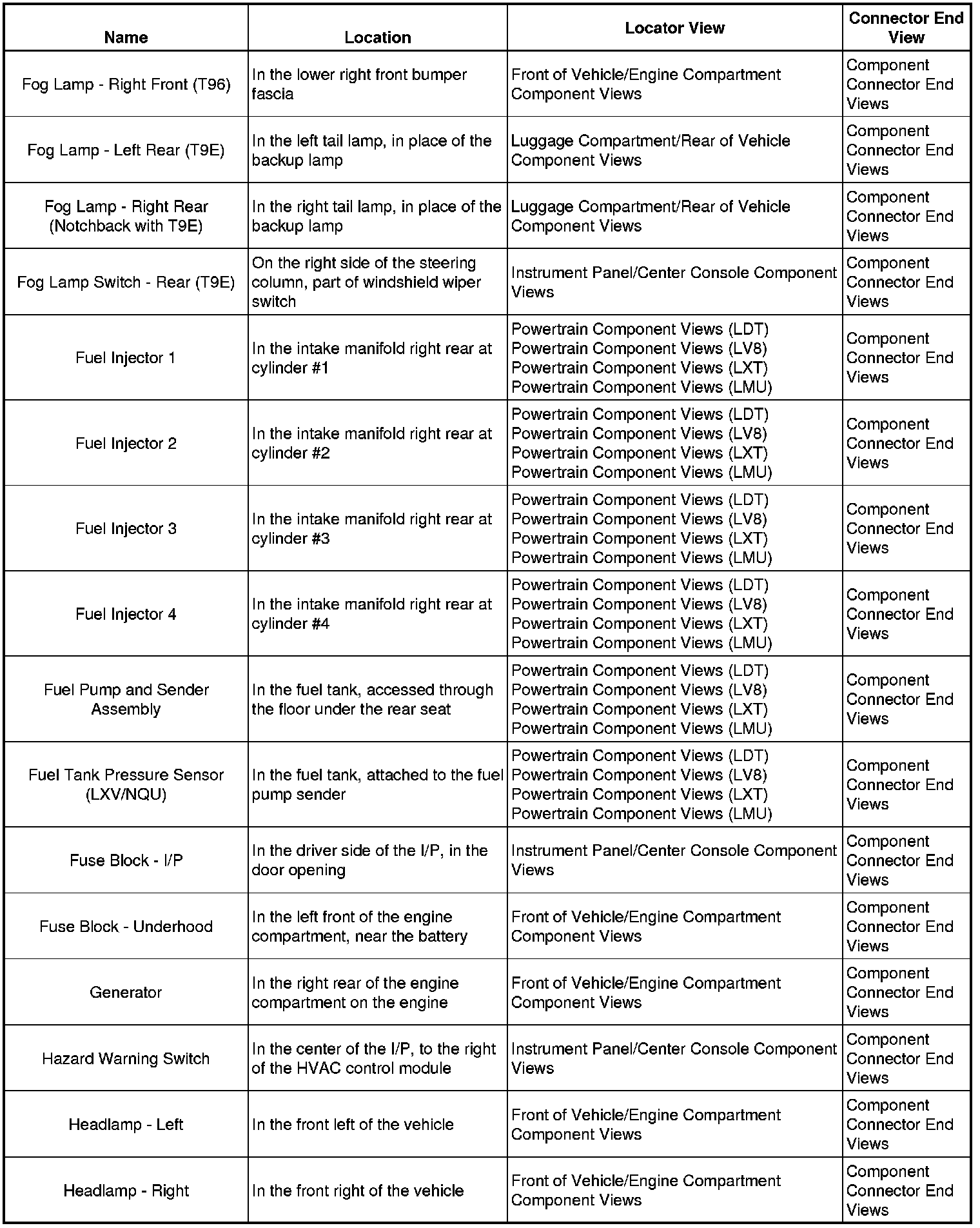

FO - HE:
HE - IG:

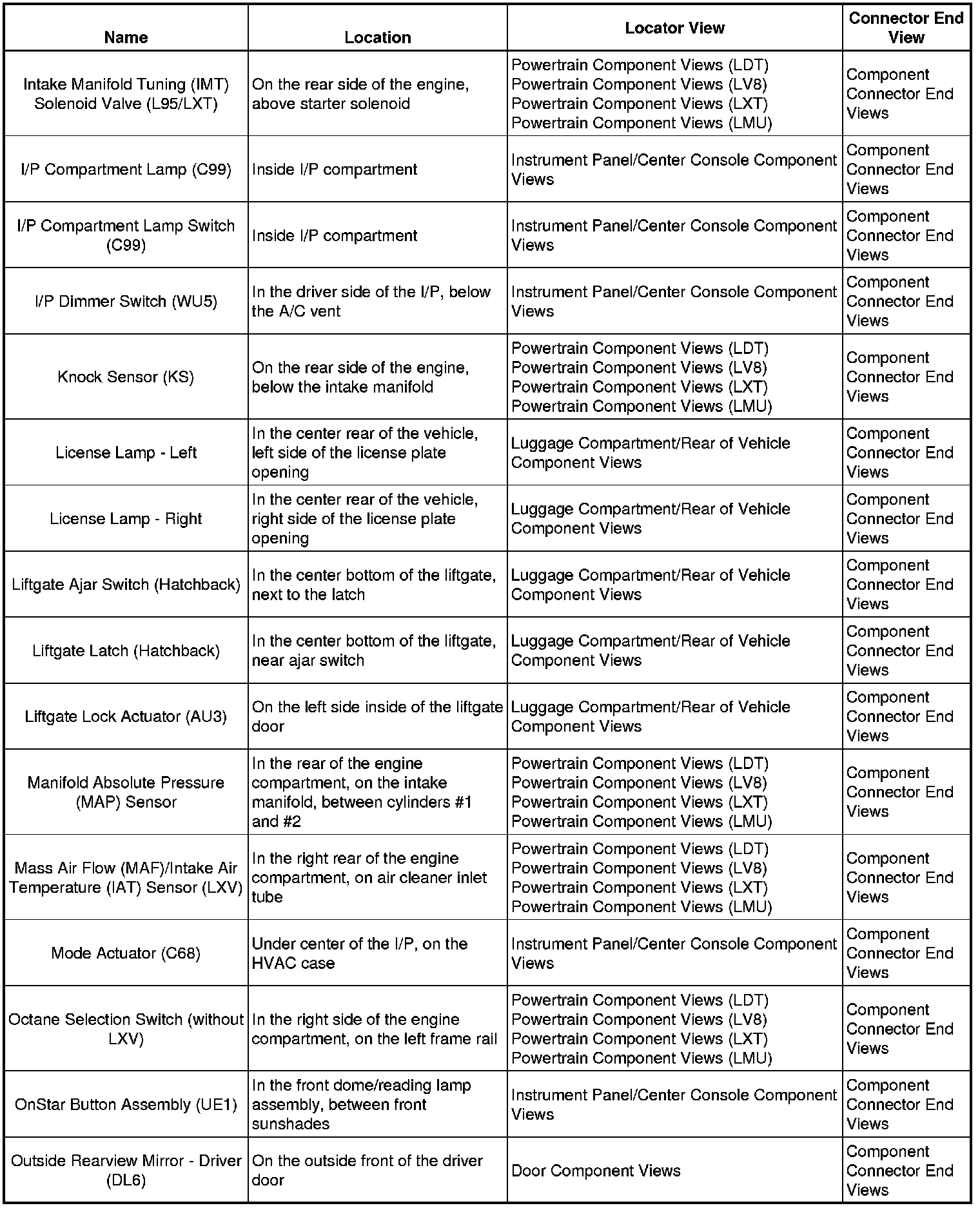

IG - IN:
IN - OU:
OU - RE:

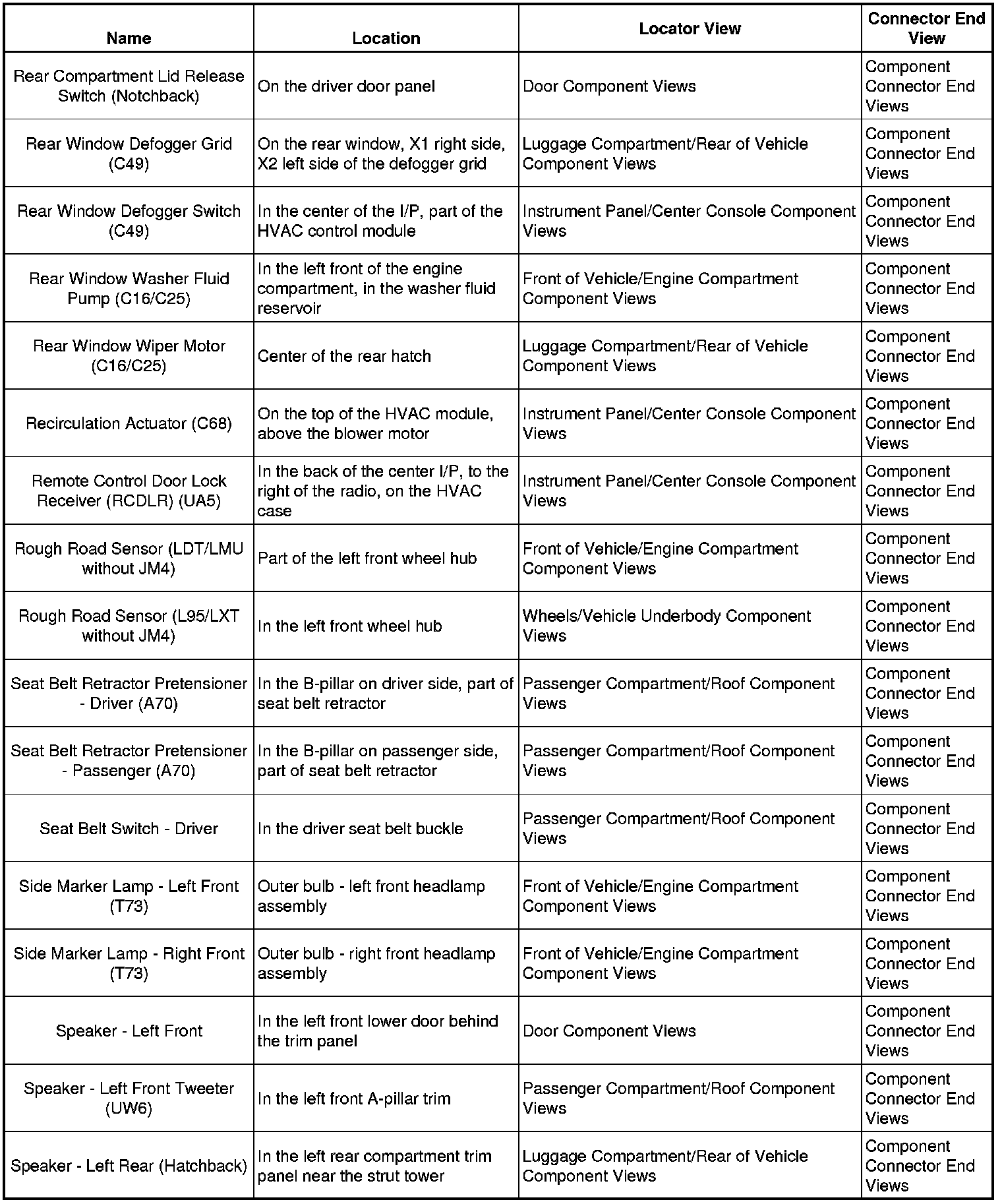

RE - SP:

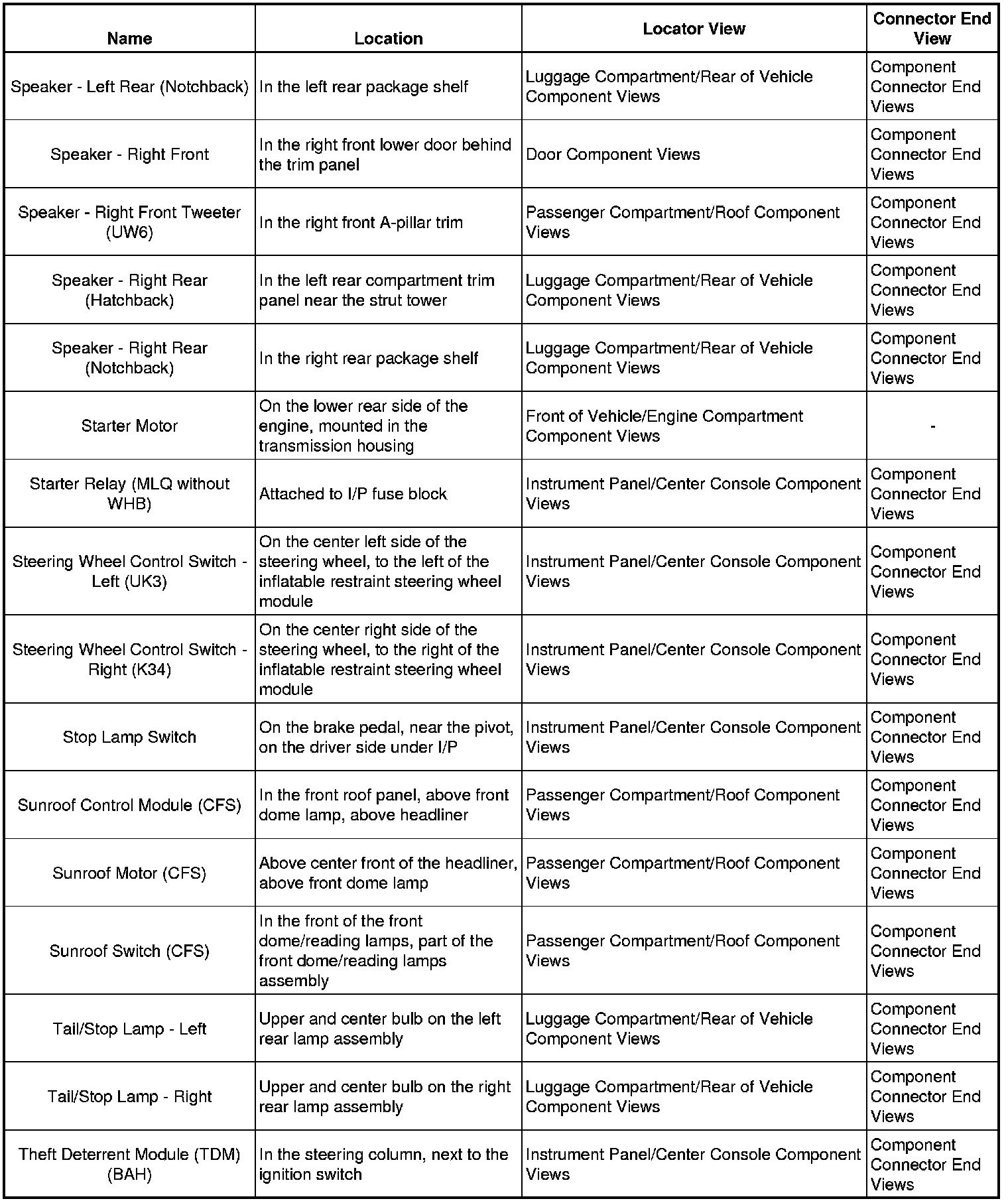

SP - TH:

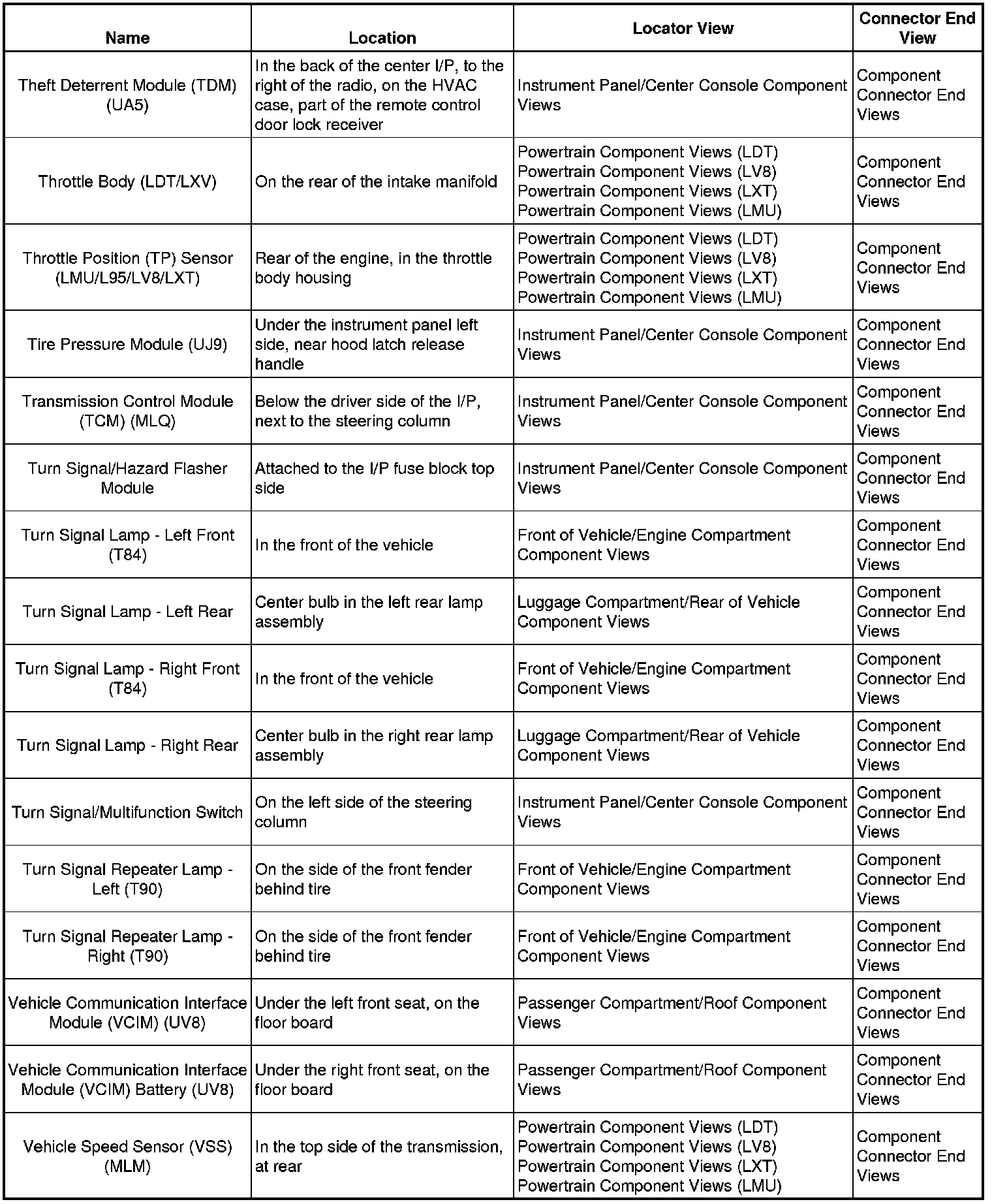

TH - VE:

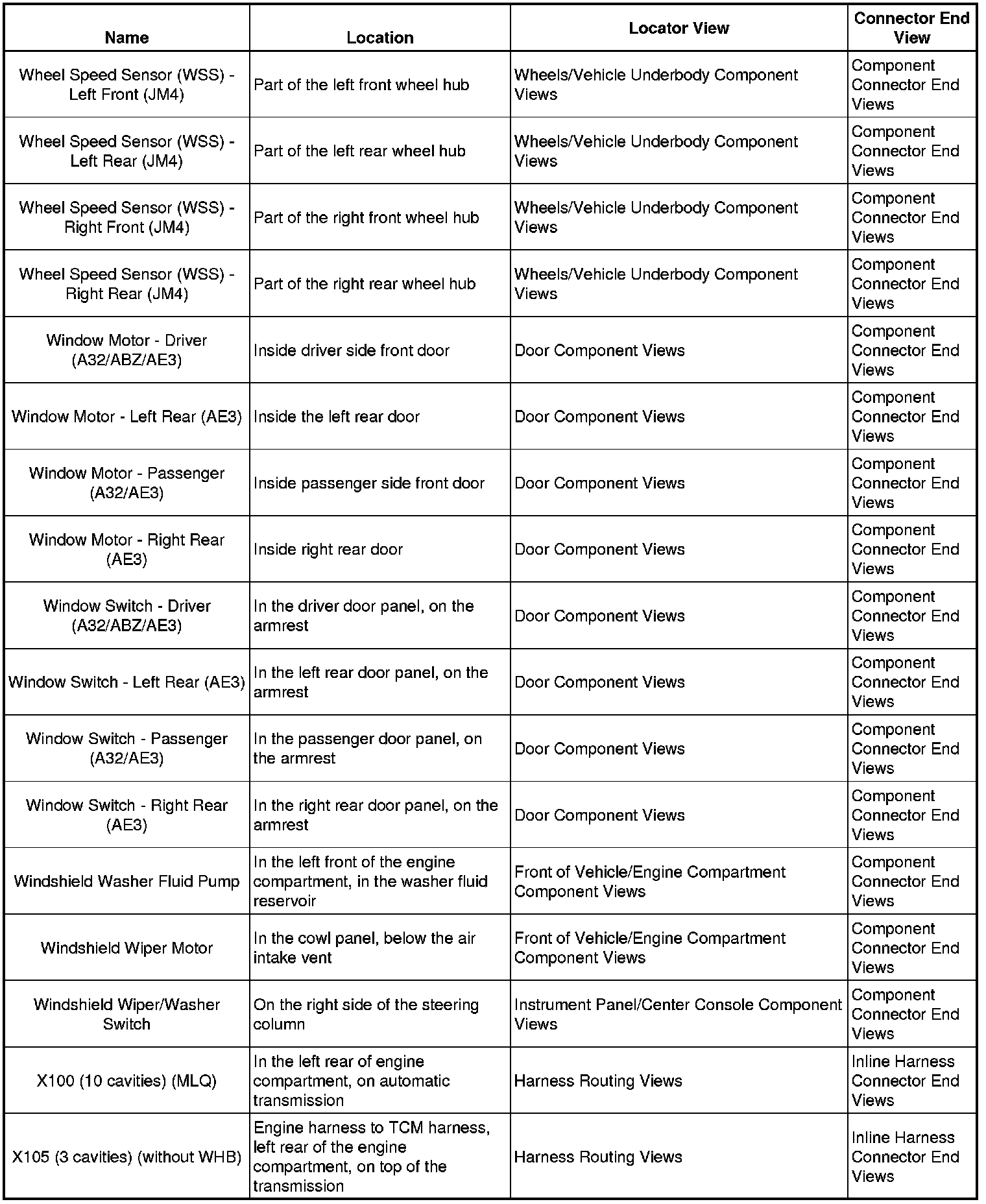

WH - X105:
