Instrument Panel Lower Trim Panel Replacement




Instrument Panel Lower Trim Panel Replacement

Removal Procedure

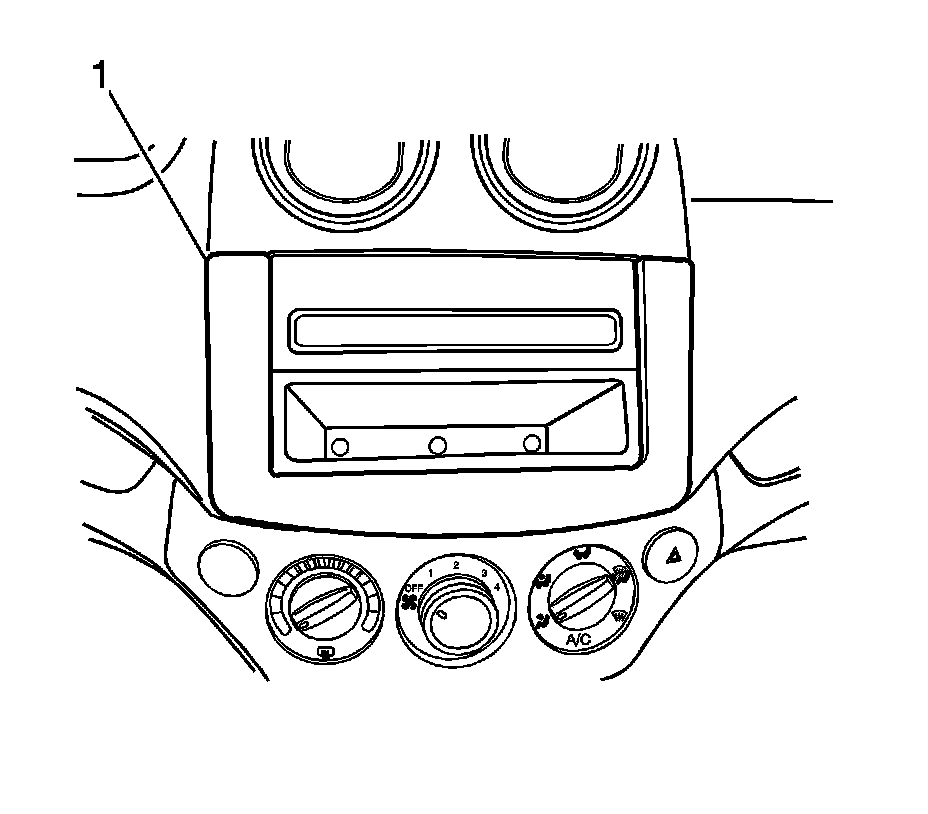

Remove the instrument panel lower trim panel (1) using a taped flat-bladed tool.

Installation Procedure





Install the instrument panel lower trim panel (1).
