Trunk / Liftgate Latch: Diagrams




Component Connector End Views

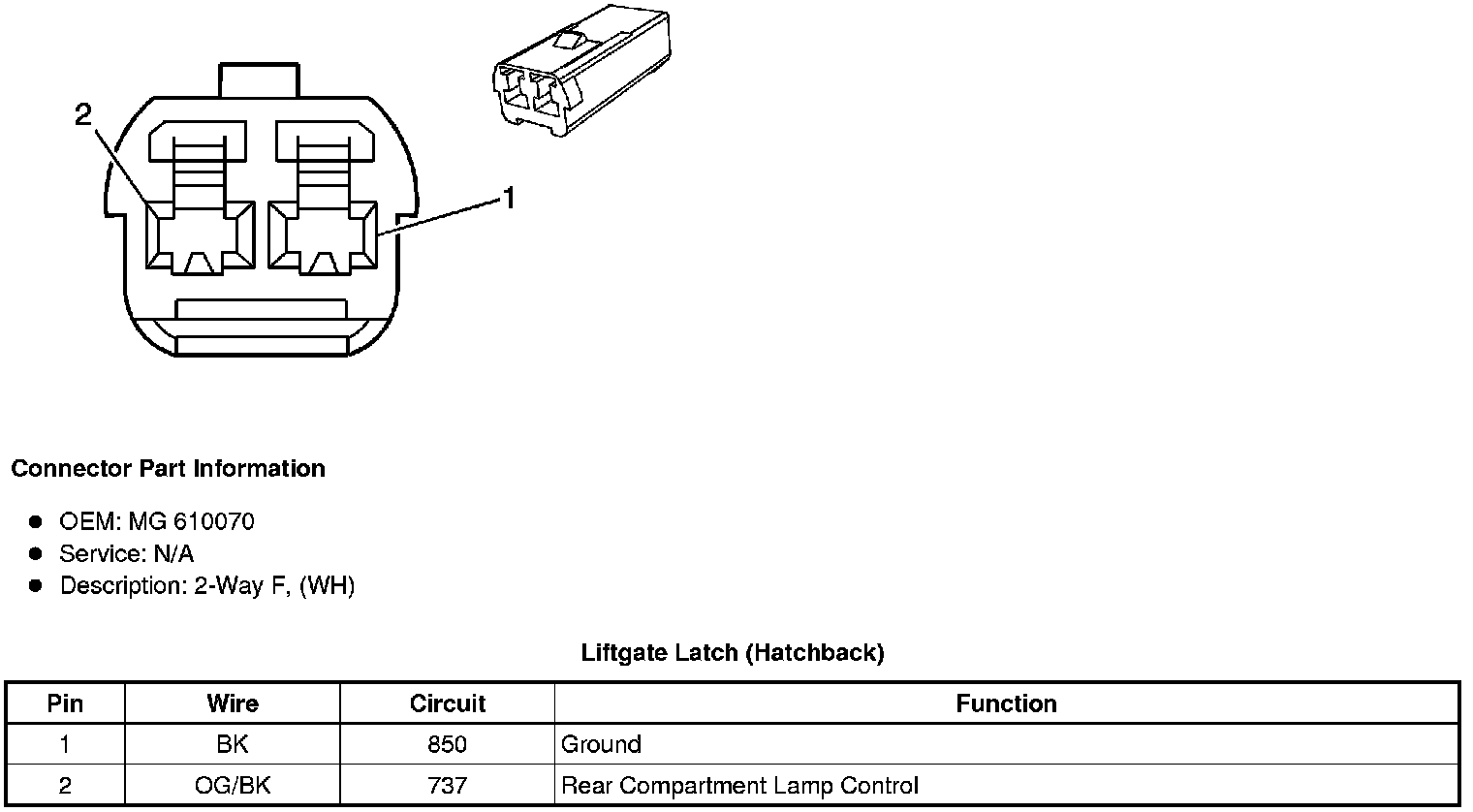

Liftgate Latch (Hatchback)

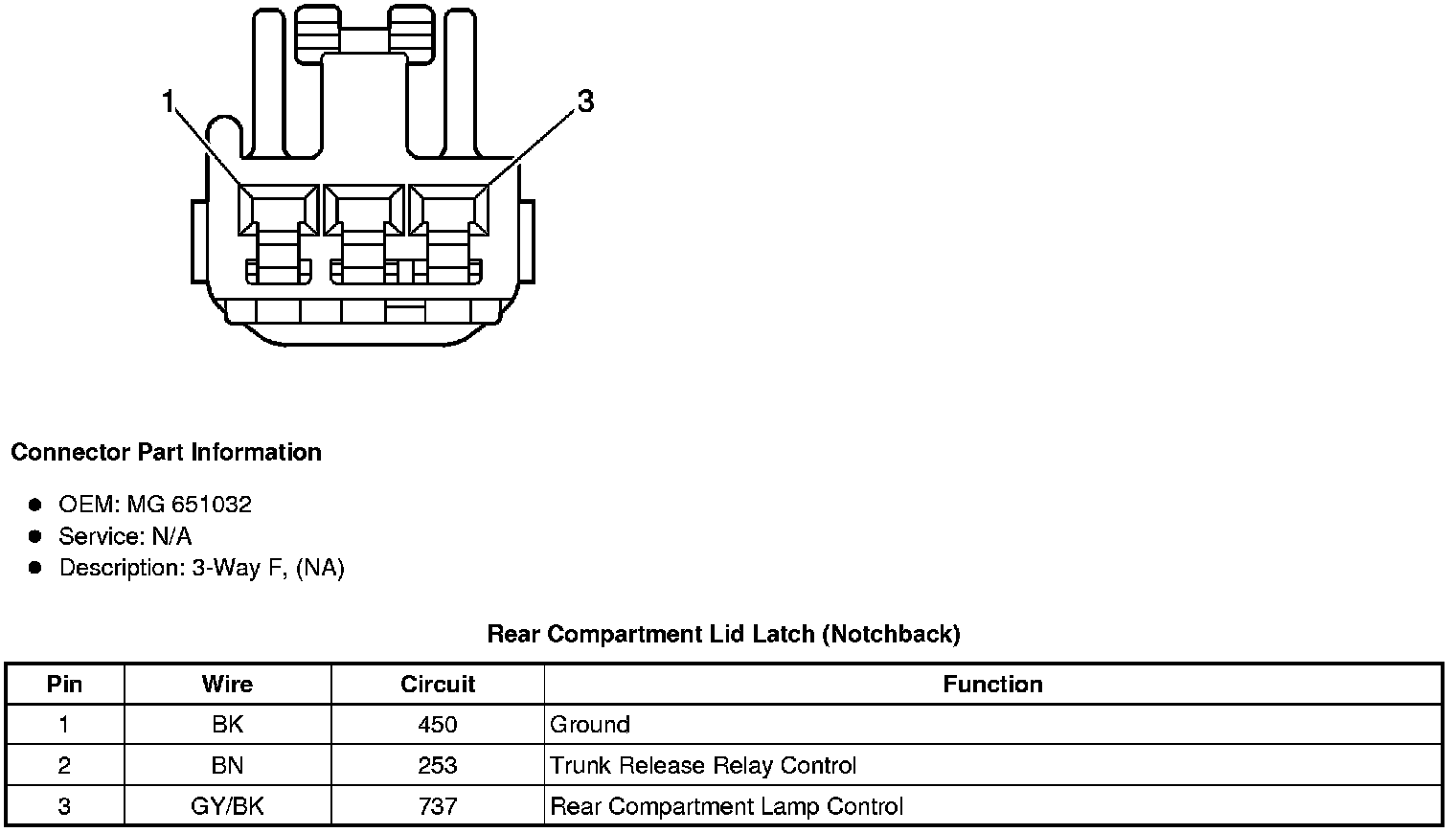

Rear Compartment Lid Latch (Notchback)

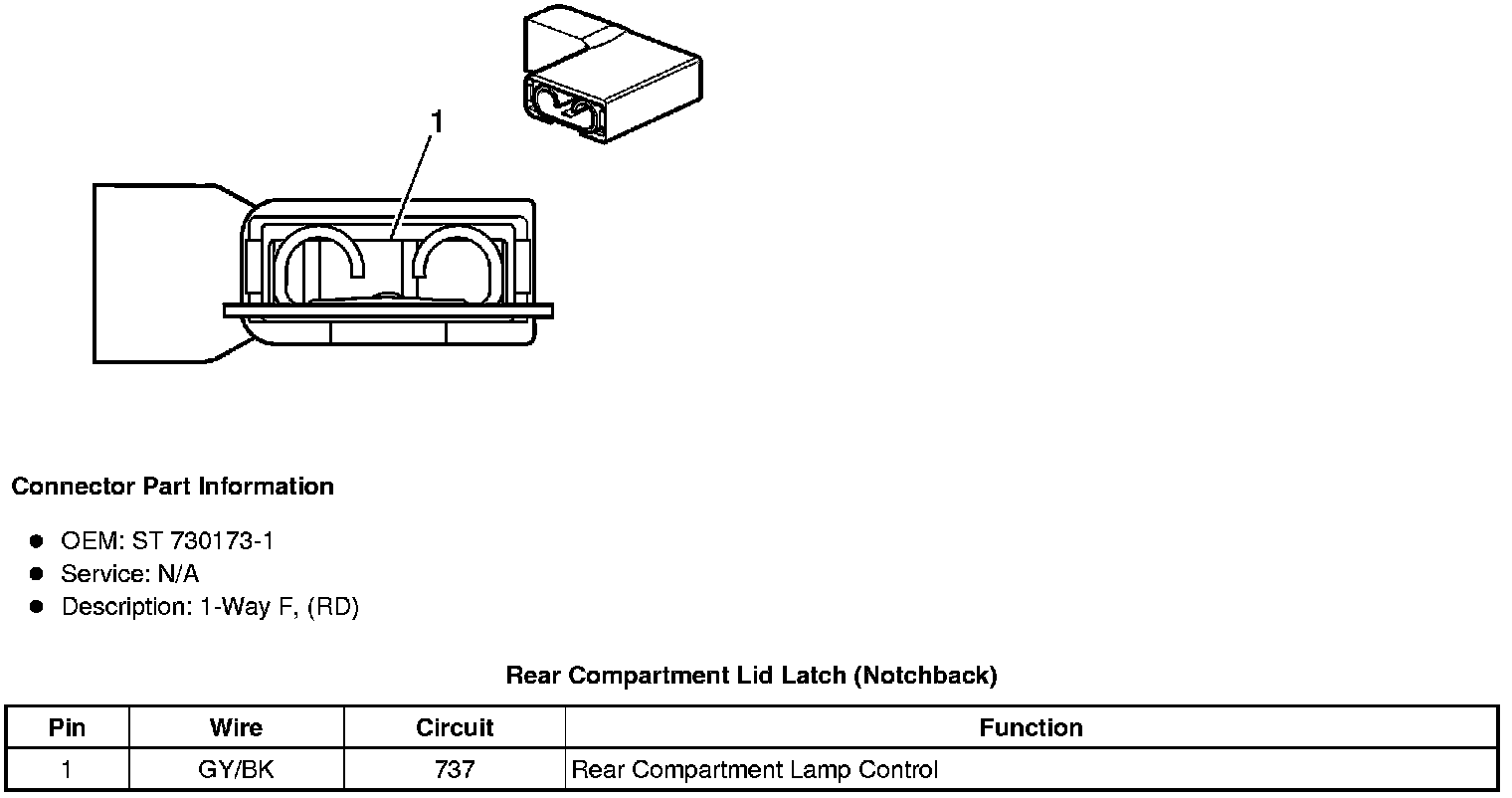

Rear Compartment Lid Latch (Notchback)
