Radio Rear Speaker Replacement (Hatchback)

Radio Rear Speaker Replacement (Hatchback)

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.
2. Remove the rear cargo area side trim panel. Refer to Cargo Area Side Trim Panel Replacement (Hatchback) (Cargo Area Side Trim Panel Replacement (Hatchback)).
3. Disconnect the electrical connector.

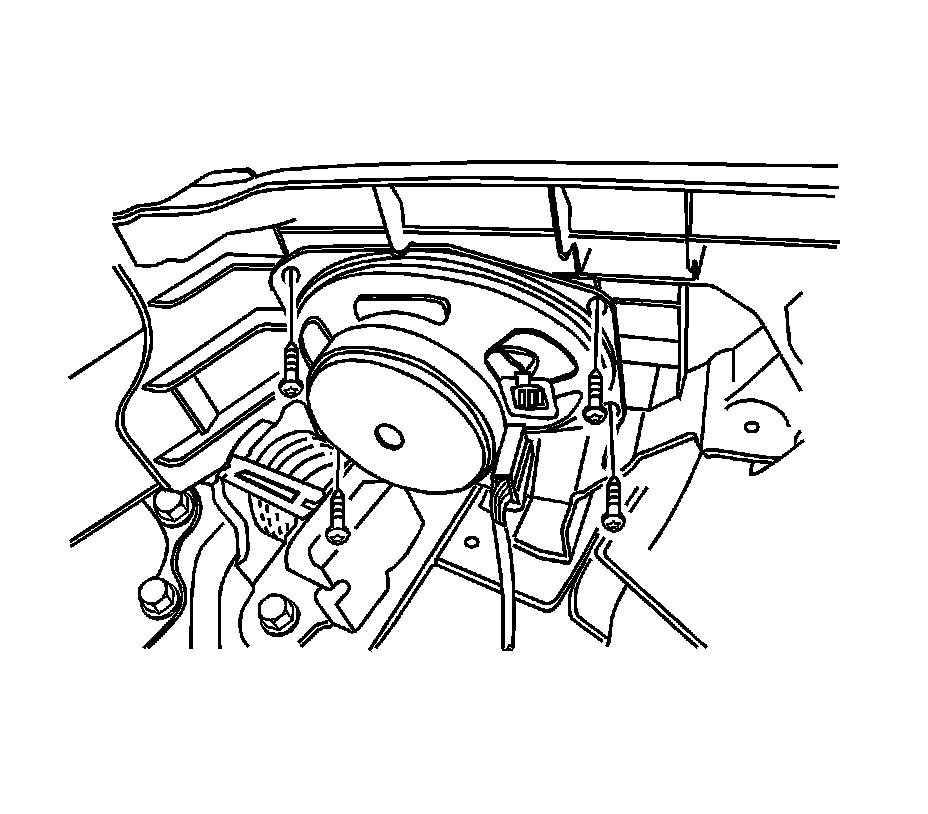

4. Remove the screws and the rear speaker.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the rear speaker with the screws and tighten to 3 Nm (27 lb in).
2. Connect the electrical connector.
3. Install the rear cargo area side trim panel. Refer to Cargo Area Side Trim Panel Replacement (Hatchback) (Cargo Area Side Trim Panel Replacement (Hatchback)).
4. Connect the negative battery cable.
