Front Upper Speaker Replacement




Front Upper Speaker Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).

1. Disconnect the negative battery cable.

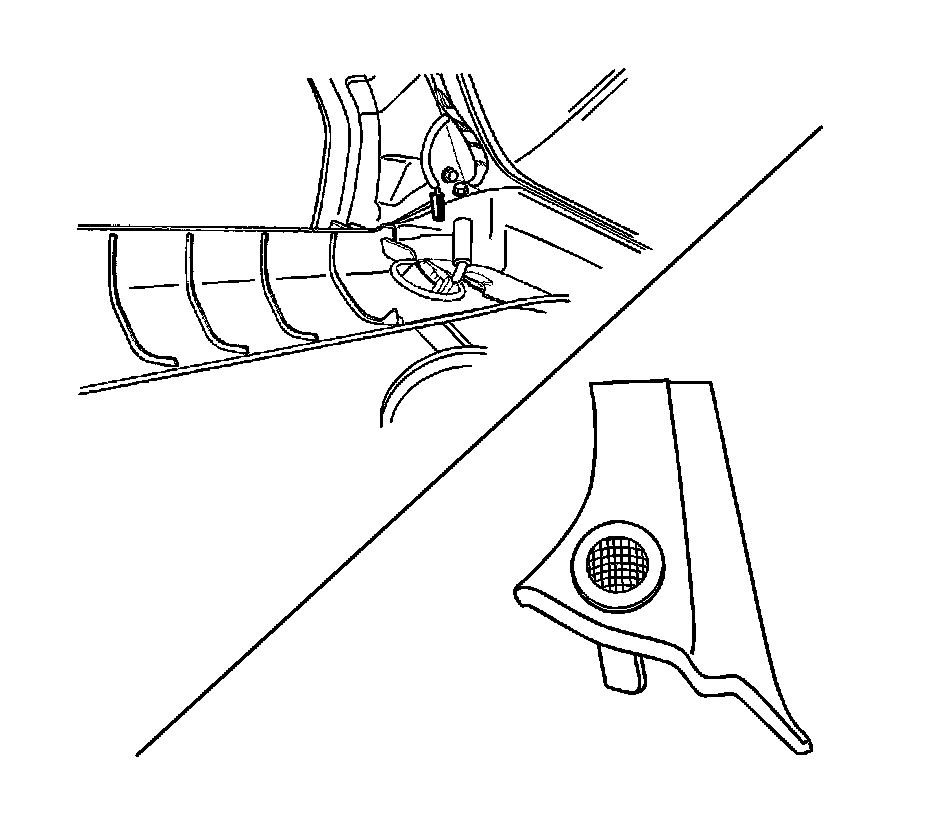

2. Pry off the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement (Windshield Pillar Garnish Molding Replacement).
3. Disconnect the electrical connector.
4. Remove the tweeter.

Installation Procedure




1. Install the tweeter.
2. Connect the electrical connector.
3. Install the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement (Windshield Pillar Garnish Molding Replacement).
4. Connect the negative battery cable.
