Transmission Cooler Pipes and Hoses Replacement (Outlet)

Transmission Cooler Pipes and Hoses Replacement (Outlet)

Removal Procedure




1. Drain the transaxle fluid.

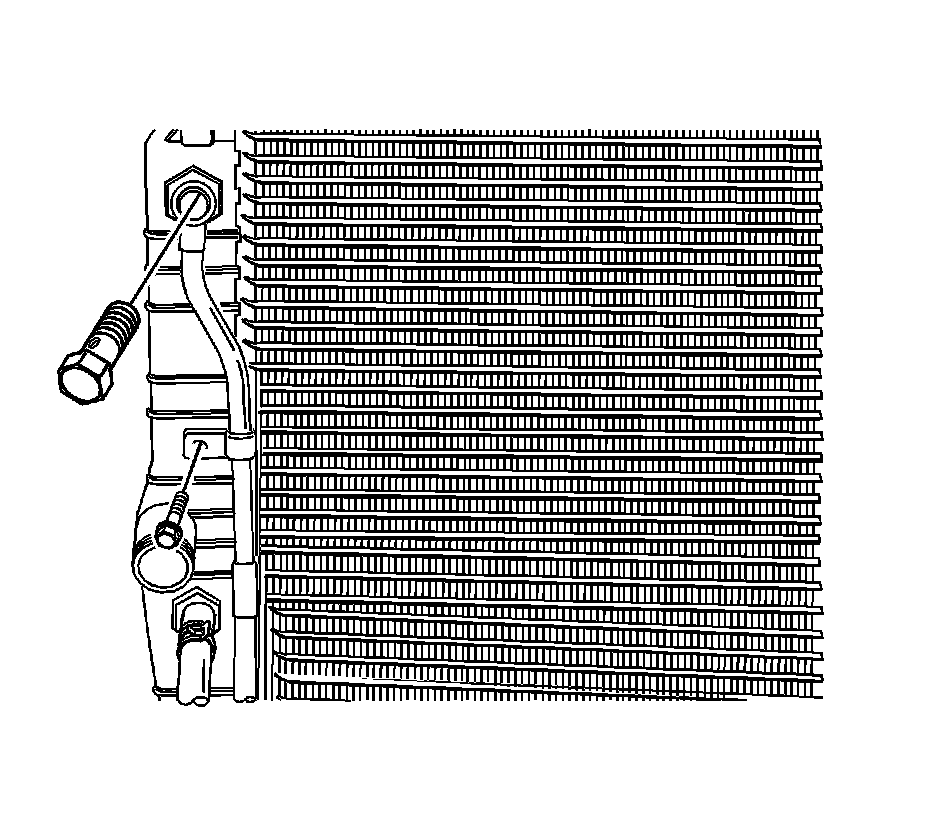

2. Remove the front outlet pipe union bolt from the radiator.
3. Remove the front outlet pipe clip bolt from the radiator.

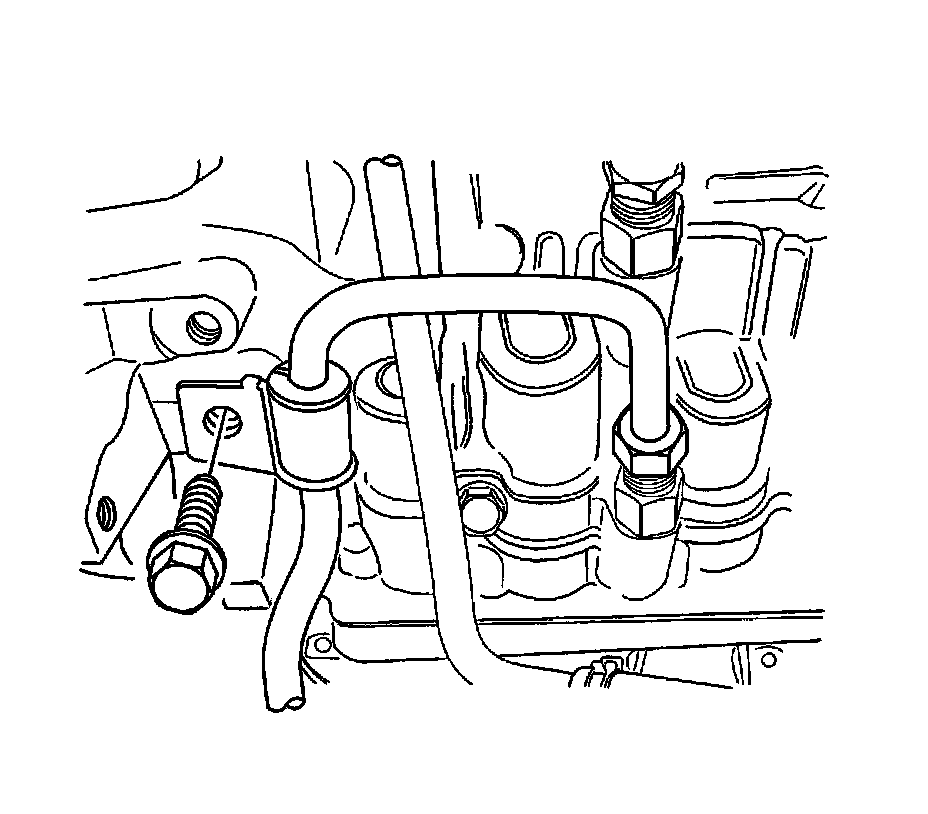

4. Remove the rear outlet pipe clip bolt from the transaxle.
5. Remove the rear outlet pipe fitting nut from the transaxle.
6. Remove the fluid cooler outlet pipe and hoses.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the fluid cooler rear outlet pipe fitting nut and tighten to 35 Nm (26 lb ft).
2. Install the fluid cooler rear outlet pipe clip bolt and tighten to 9 Nm (80 lb in).

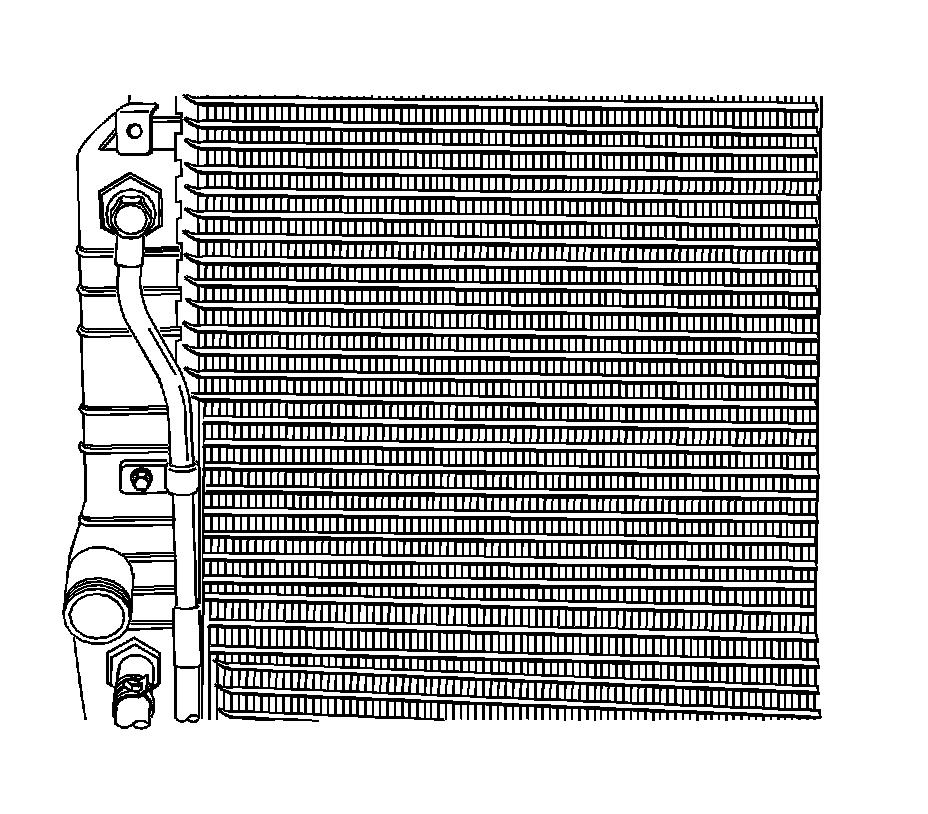

3. Install the front outlet pipe union bolt and tighten to 35 Nm (26 lb ft).
4. Install the front outlet pipe clip bolt and tighten to 9 Nm (80 lb in).
5. Fill the transaxle with the fluid.
