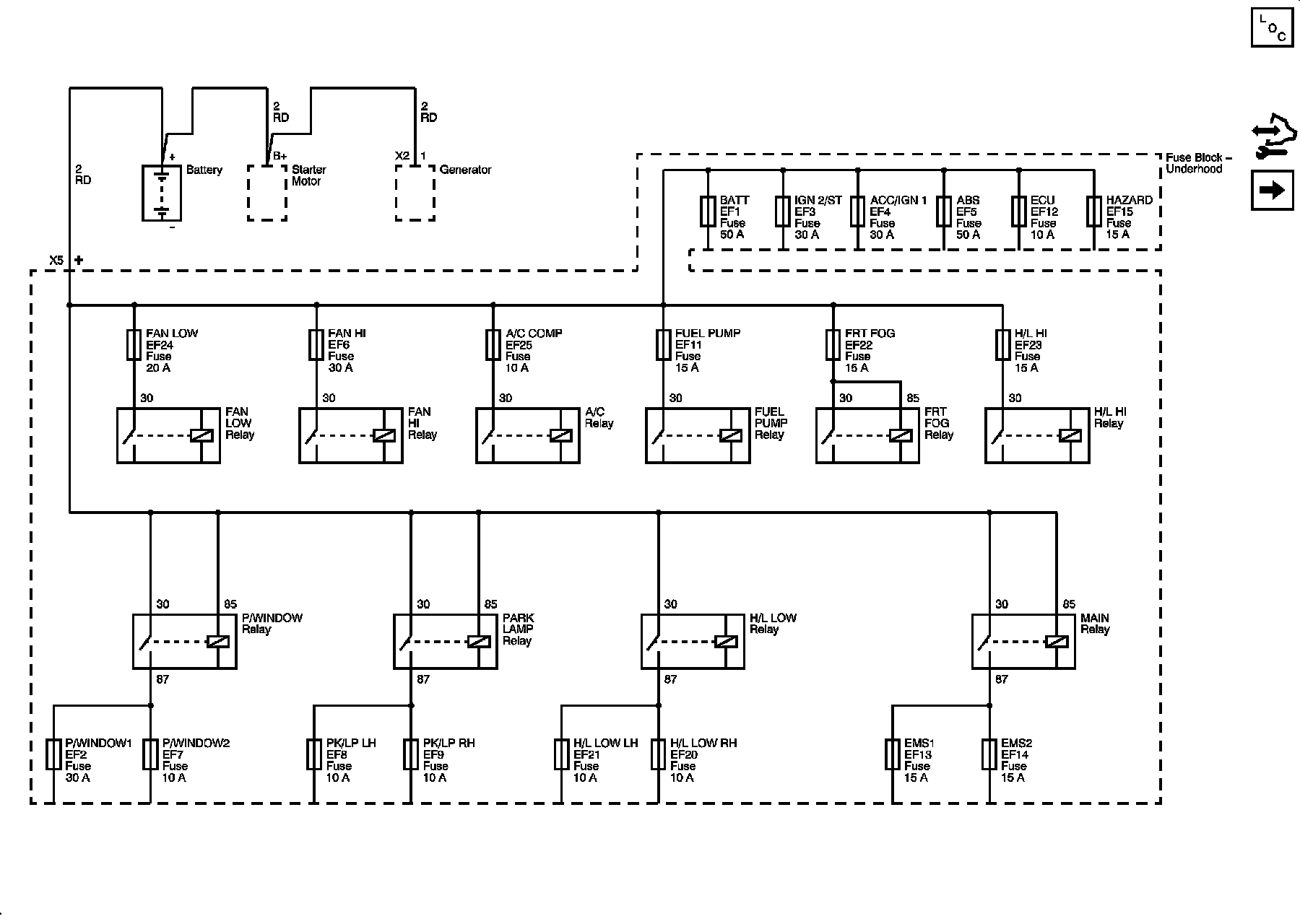

Power Distribution Diagram 1




Power Distribution Schematics (without WHB)

Fuse Block - Underhood - Battery Feed
