Alternator: Diagrams




Component Connector End Views

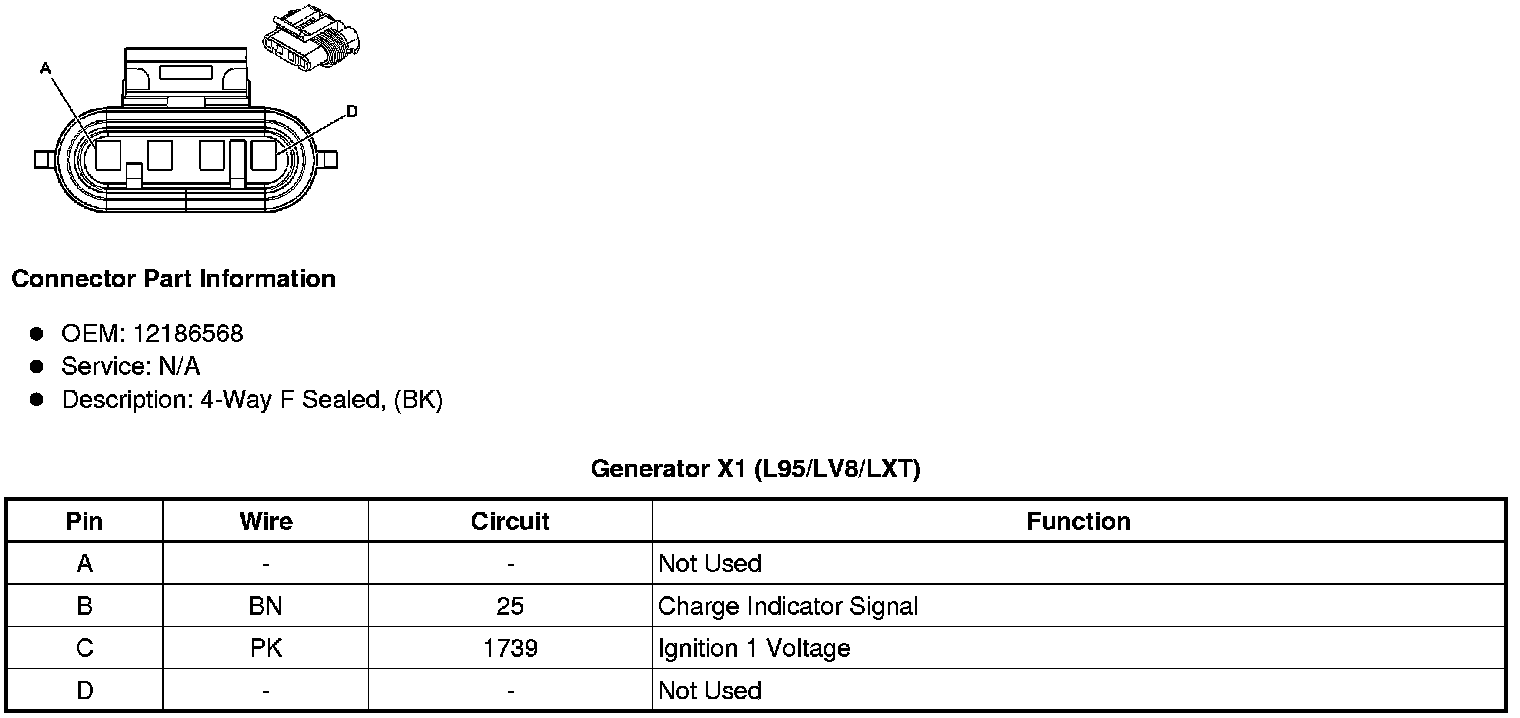

Generator X1 (L95/LV8/LXT)






Generator X1 (LDT)

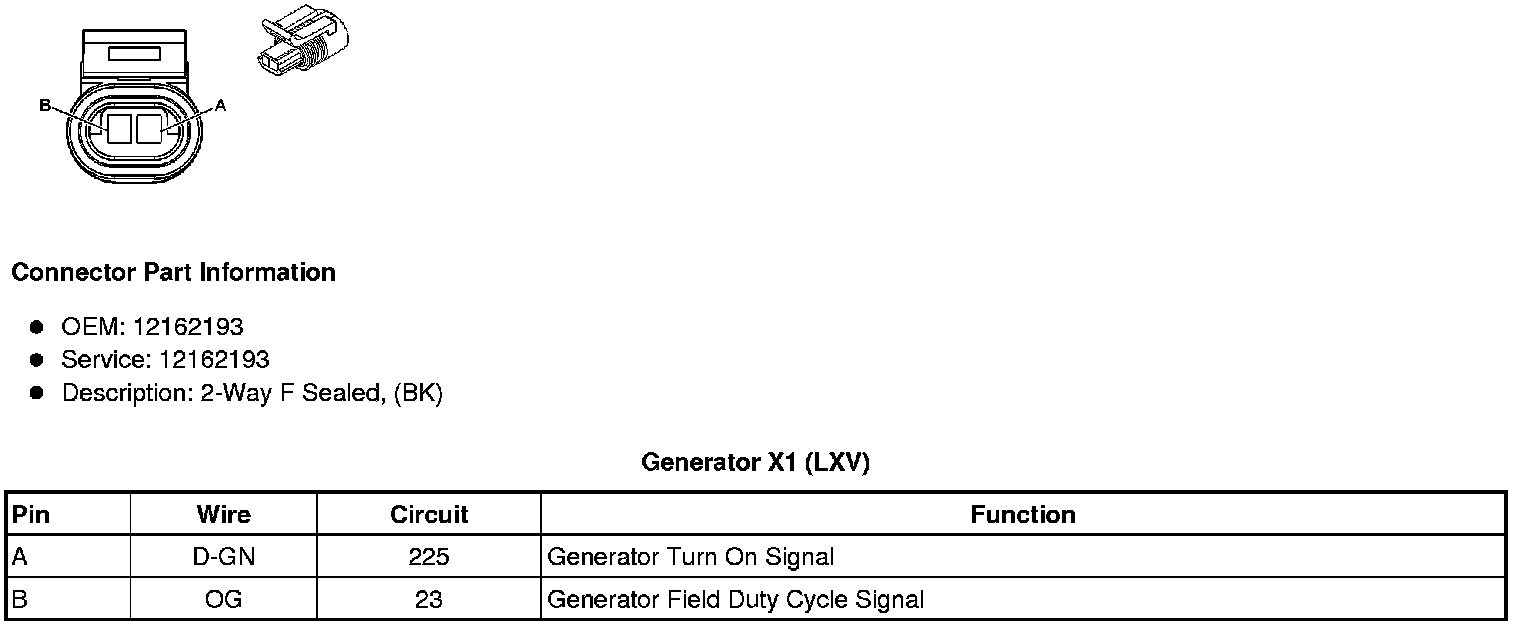

Generator X1 (LXV)

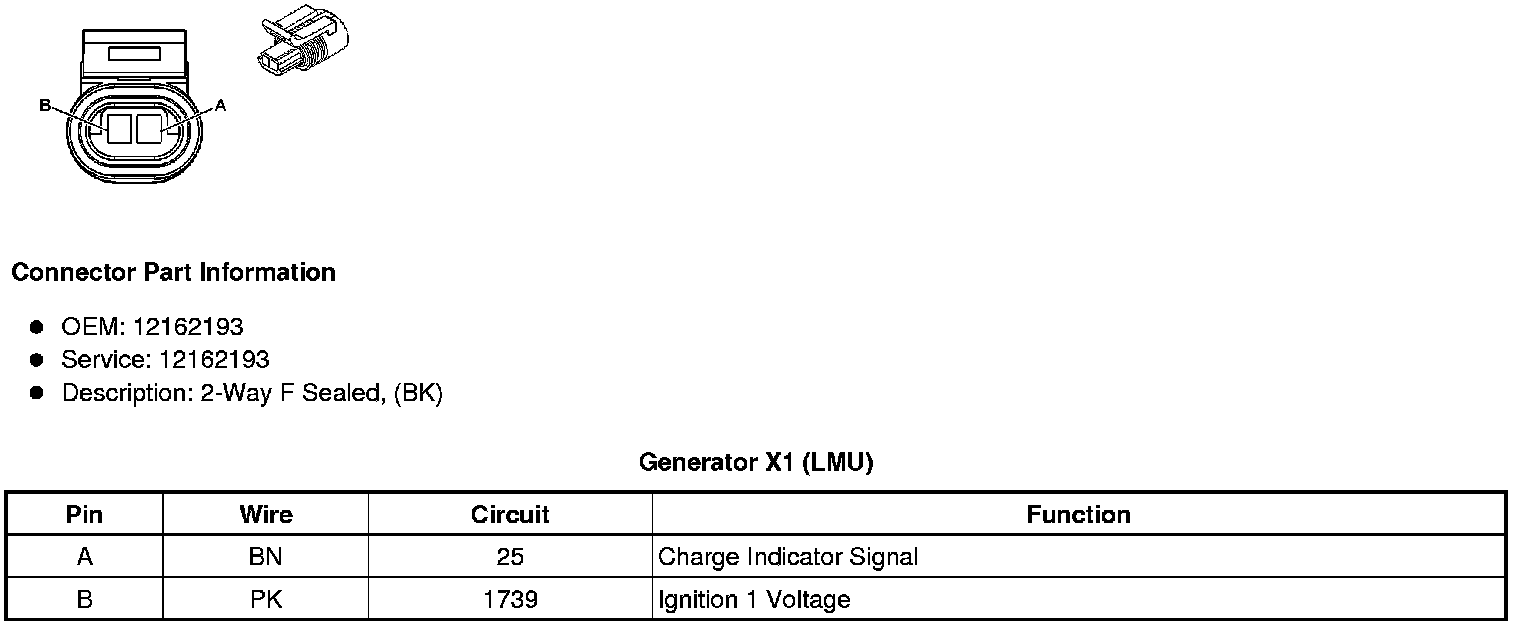

Generator X1 (LMU)

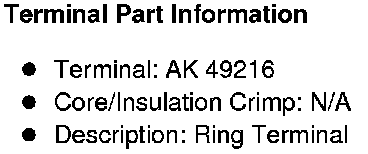

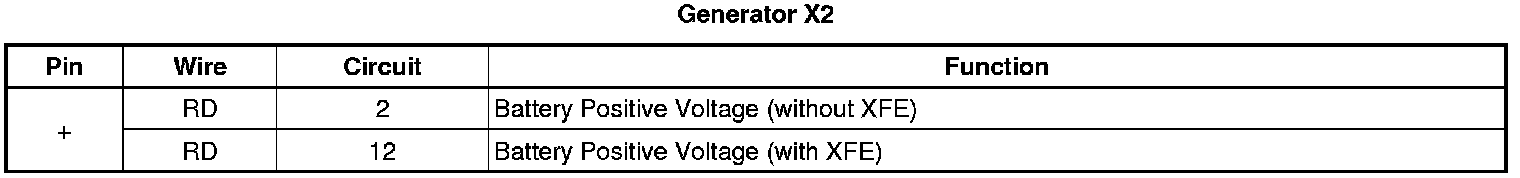

Generator X2
