Seat Belt Replacement - Center Rear

Seat Belt Replacement - Center Rear

Removal Procedure




1. Pull the rear seat knob and fold the rear seat cushion.

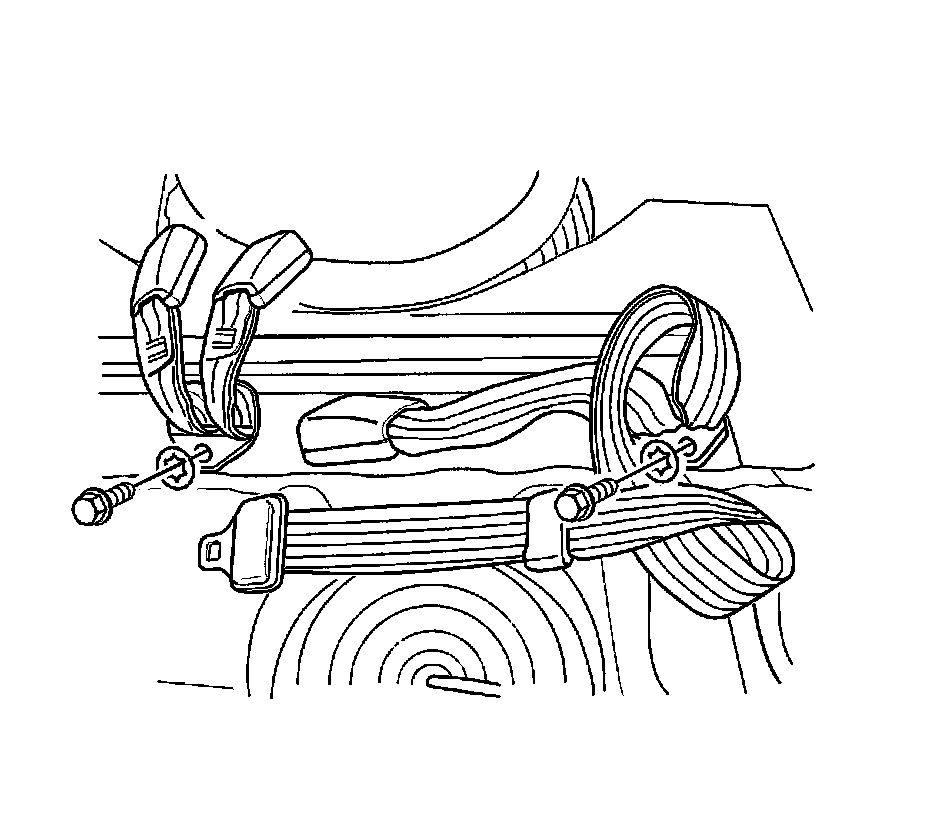

2. Remove the bolts and the seat belt anchors.
3. Remove the left rear cargo area trim panel and remove the bolt from the rear center seat belt retractor.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the seat belt anchors with the bolts and tighten to 38 Nm (28 lb ft).
2. Install the rear center seat belt retractor with the bolt and tighten to 38 Nm (28 lb ft).
3. Install the rear cargo area trim panel and unfold the rear seat.
