Without Variable Camshaft Phasing

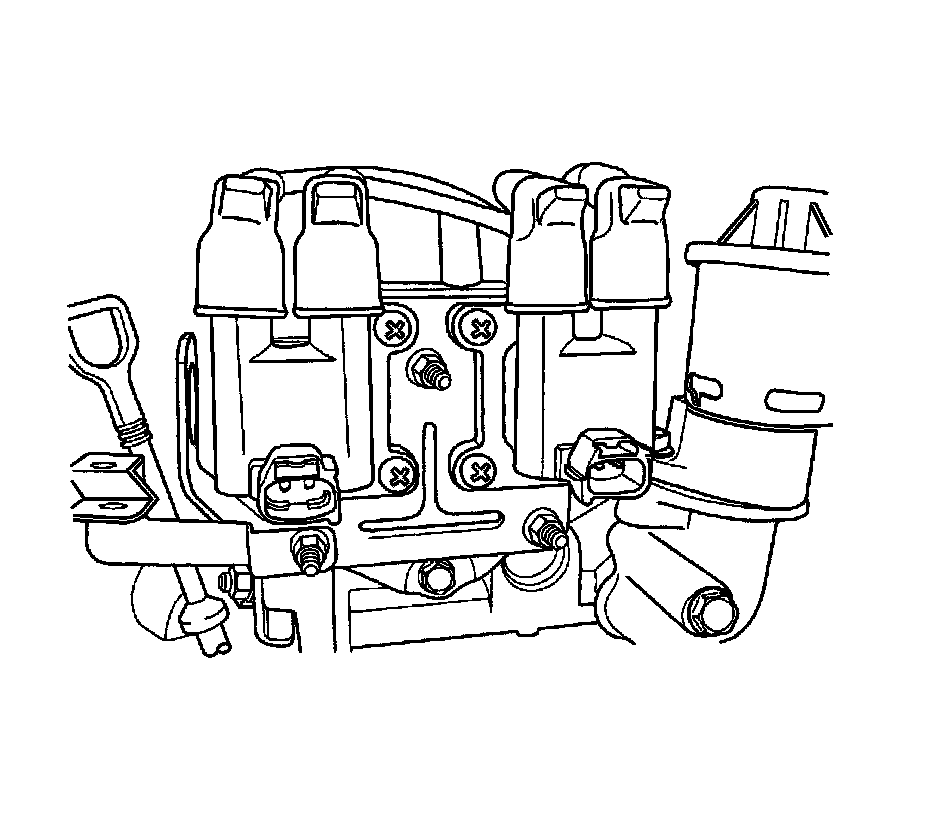

Ignition Coil Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).
1. Disconnect the negative battery cable.
2. Disconnect the electronic ignition (EI) system ignition coil connector.
3. Note the ignition wire location and remove the ignition wire.
4. Remove the EI system ignition coil retaining nuts.
5. Remove the EI system ignition coil.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the EI system ignition coil into the mounting location and install the retaining nuts.

Tighten the EI system ignition coil retaining nuts to 10 Nm (89 lb in).

2. Connect the EI system ignition coil connector.
3. Connect the negative battery cable.
