EGR Valve: Diagrams




Component Connector End Views

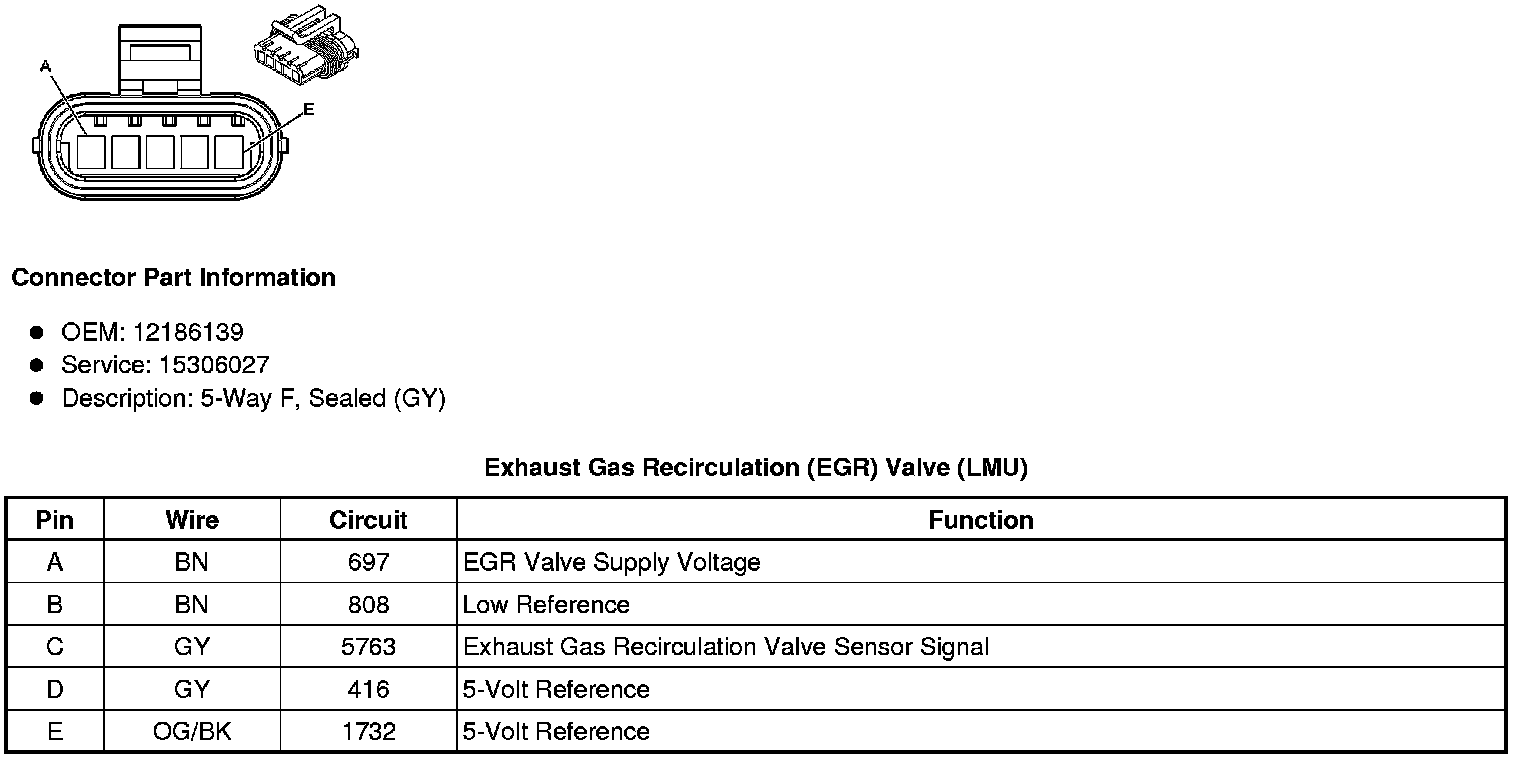

Exhaust Gas Recirculation (EGR) Valve (LMU)

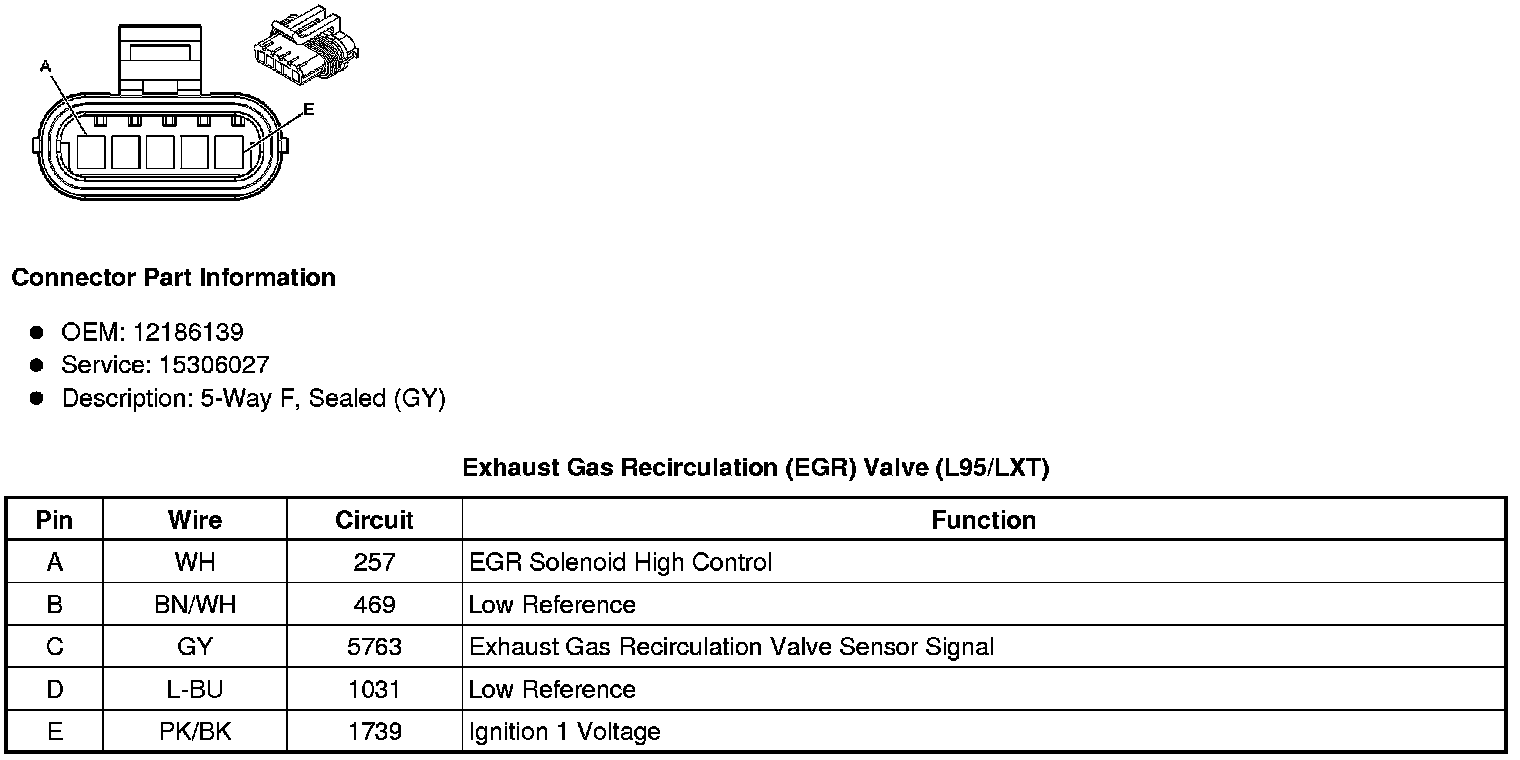

Exhaust Gas Recirculation (EGR) Valve (L95/LXT)
