Rough Road Sensor: Diagrams
Component Connector End Views

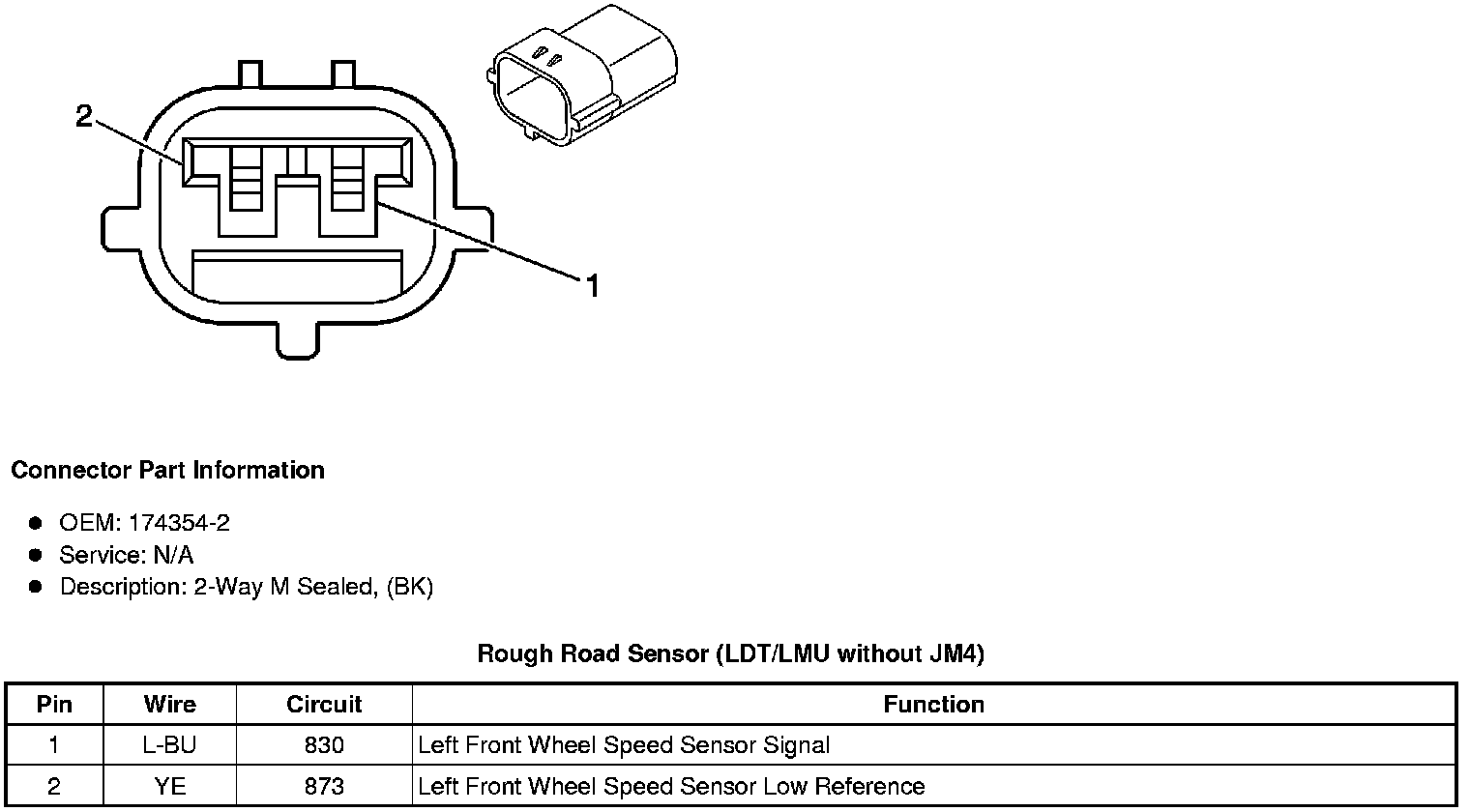

Rough Road Sensor
(LDT/LMU without JM4)

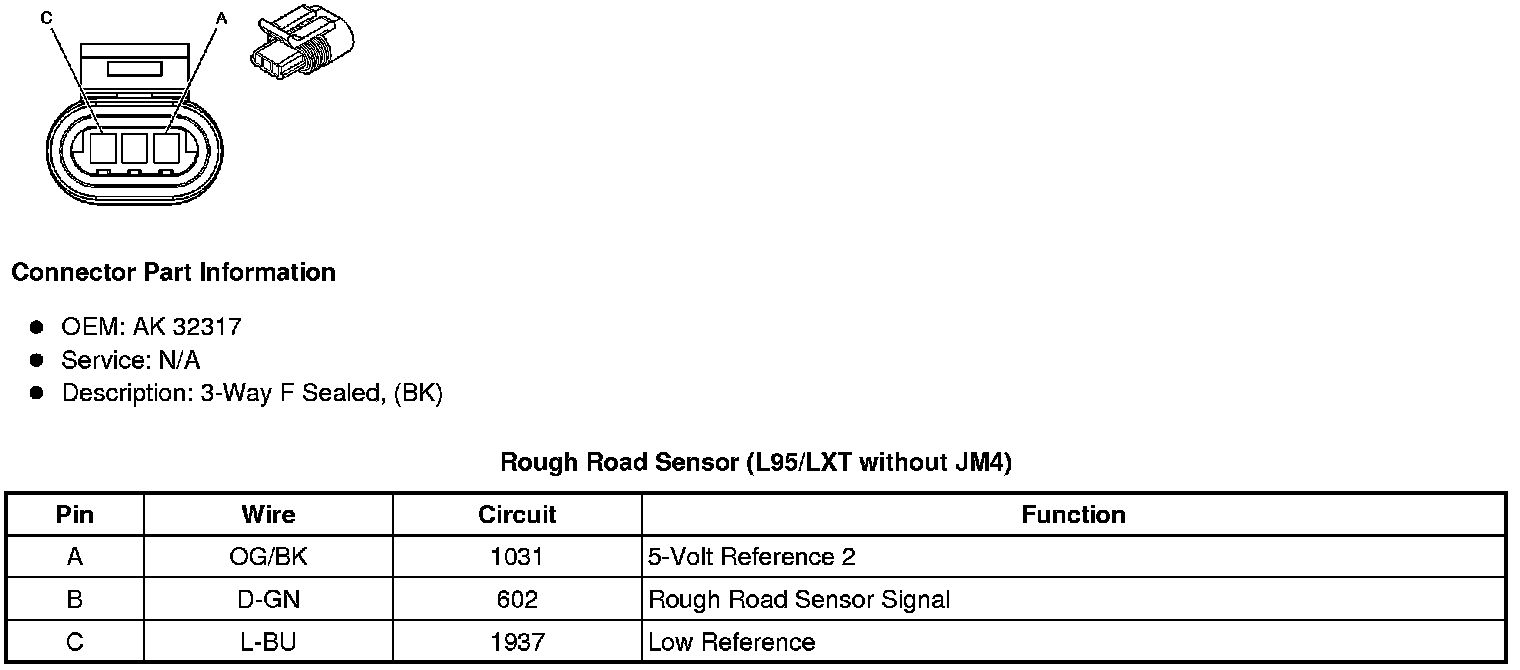

Rough Road Sensor
(L95/LXT without JM4)
