X402




Inline Harness Connector End Views

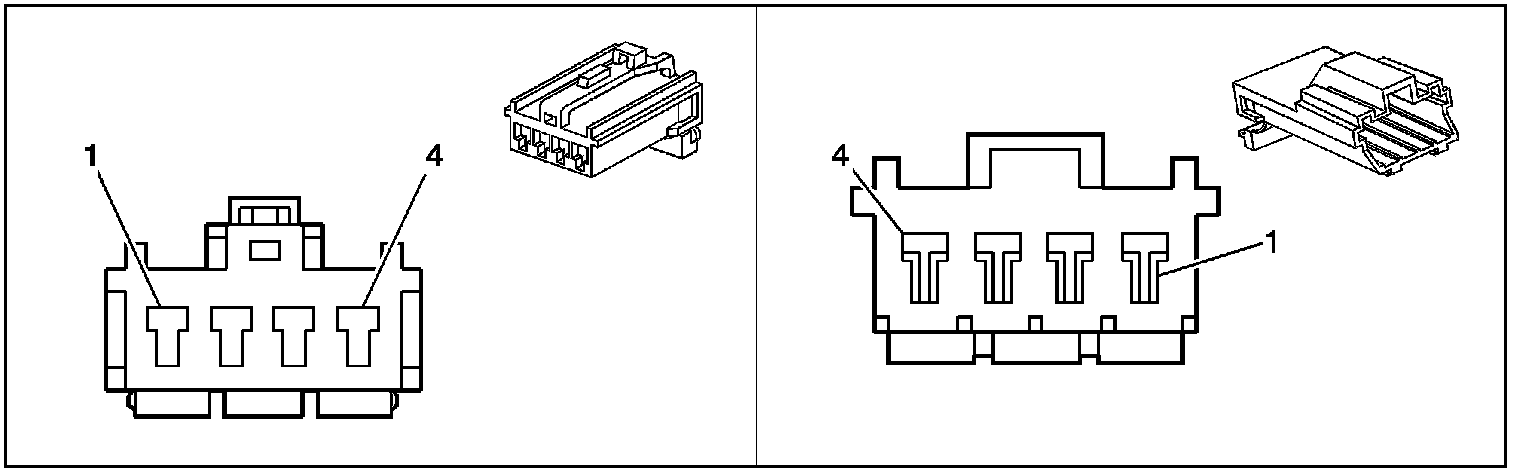

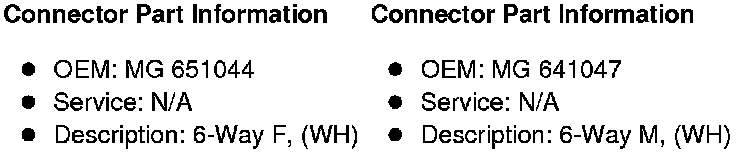

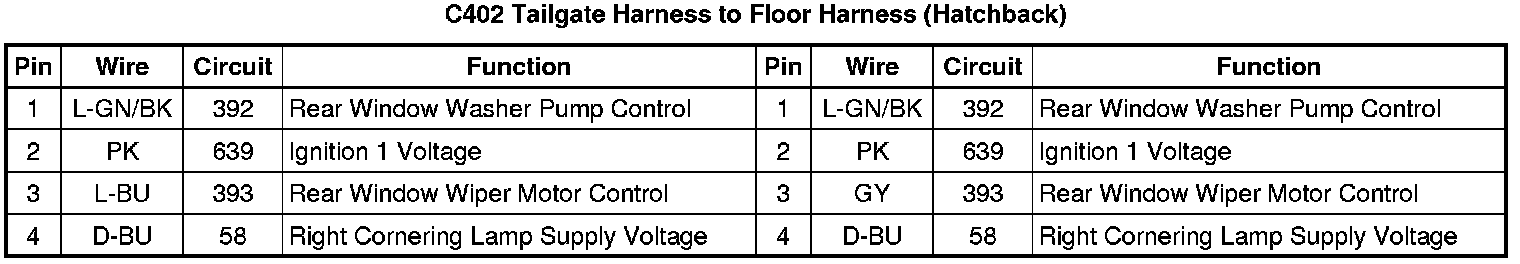

C402 Tailgate Harness to Floor Harness (Hatchback)

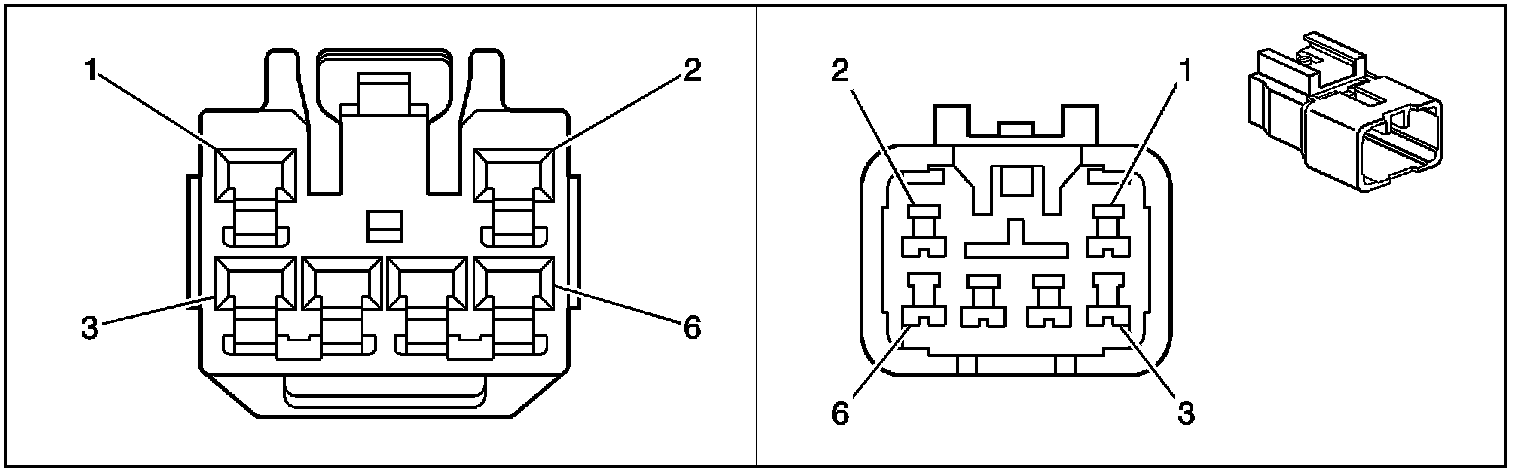

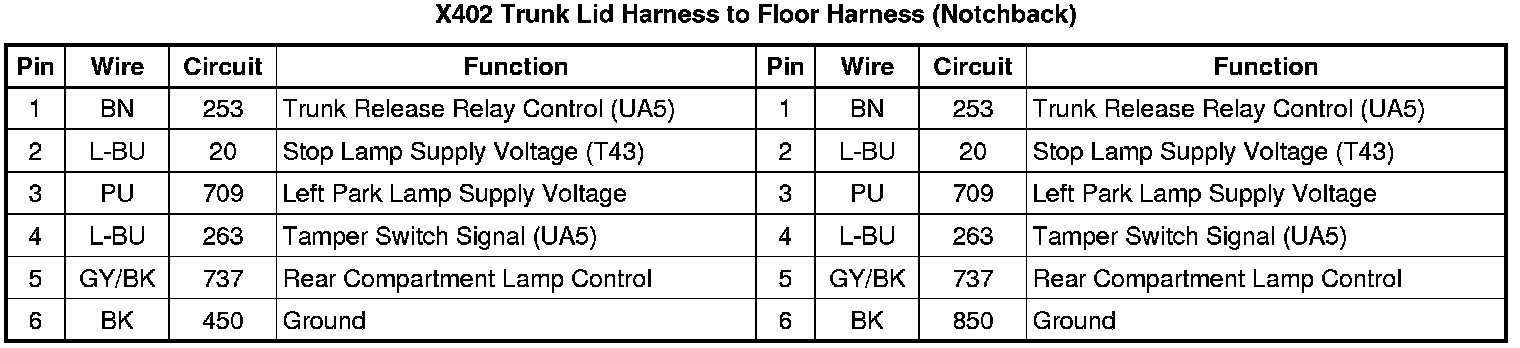

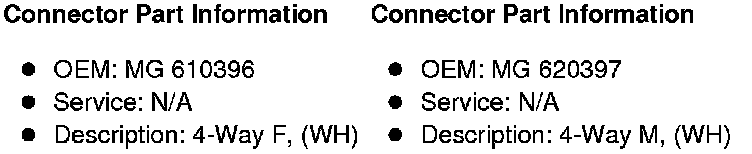

X402 Trunk Lid Harness to Floor Harness (Notchback)
