X201




Inline Harness Connector End Views

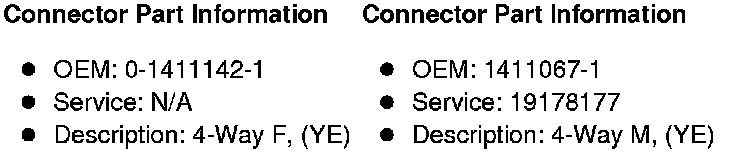

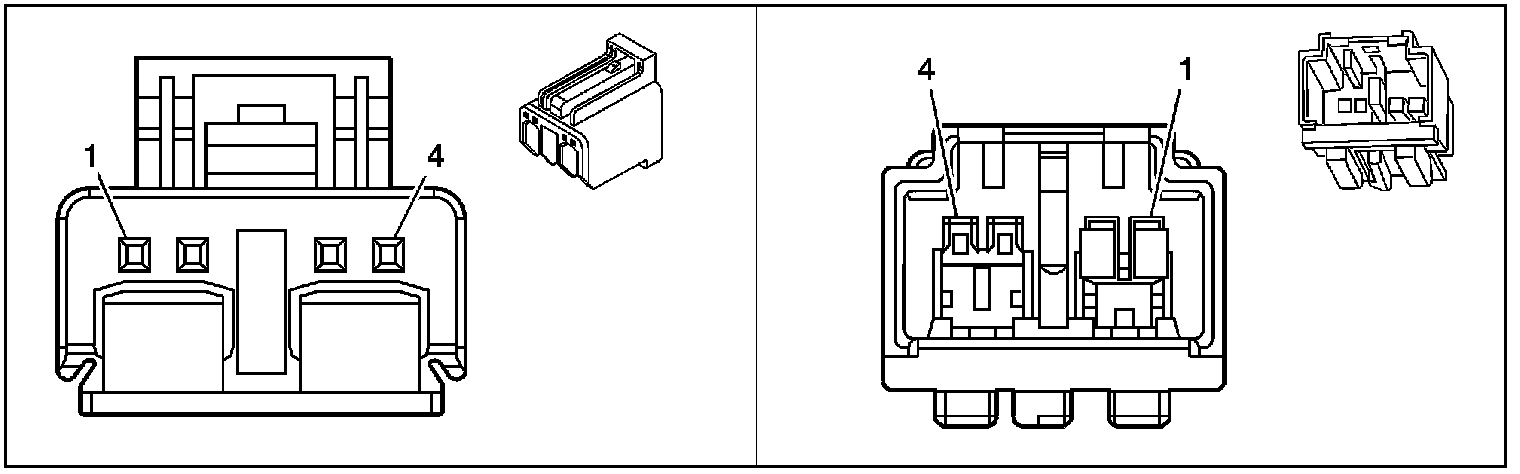

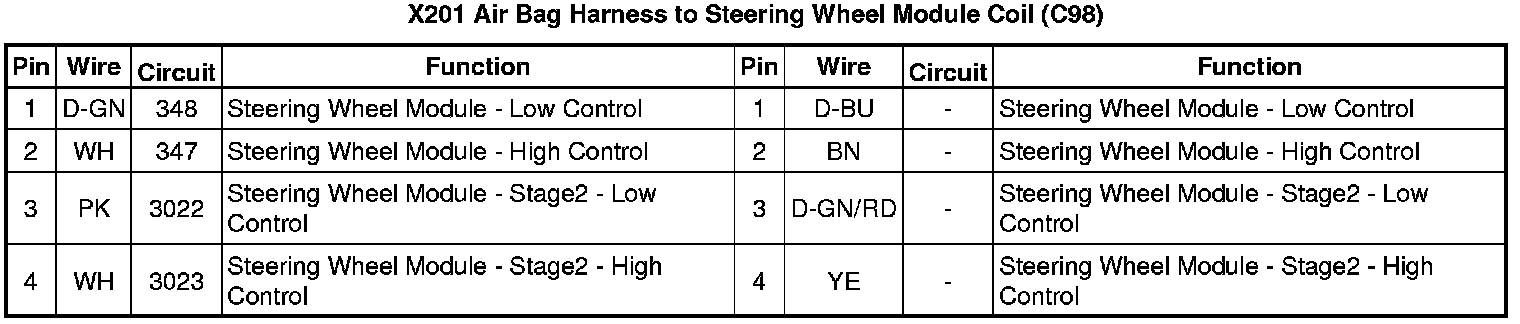

X201 Air Bag Harness to Steering Wheel Module Coil (C98)

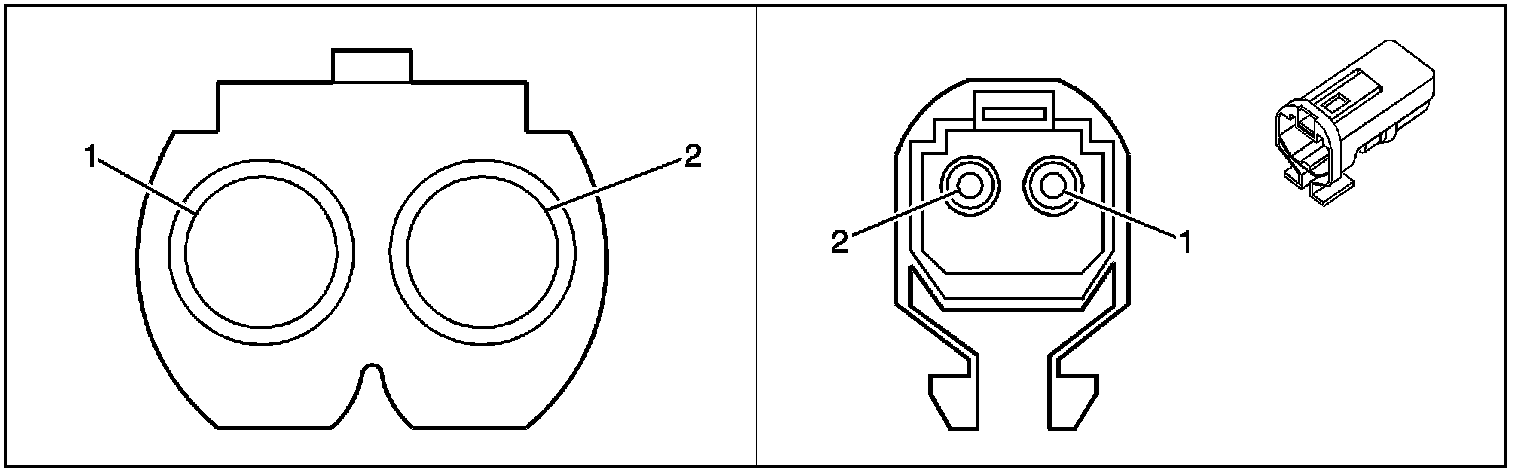

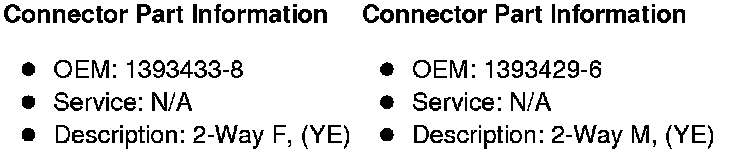

X201 Air Bag Harness to Steering Wheel Module Coil (AJ3 without C98)
