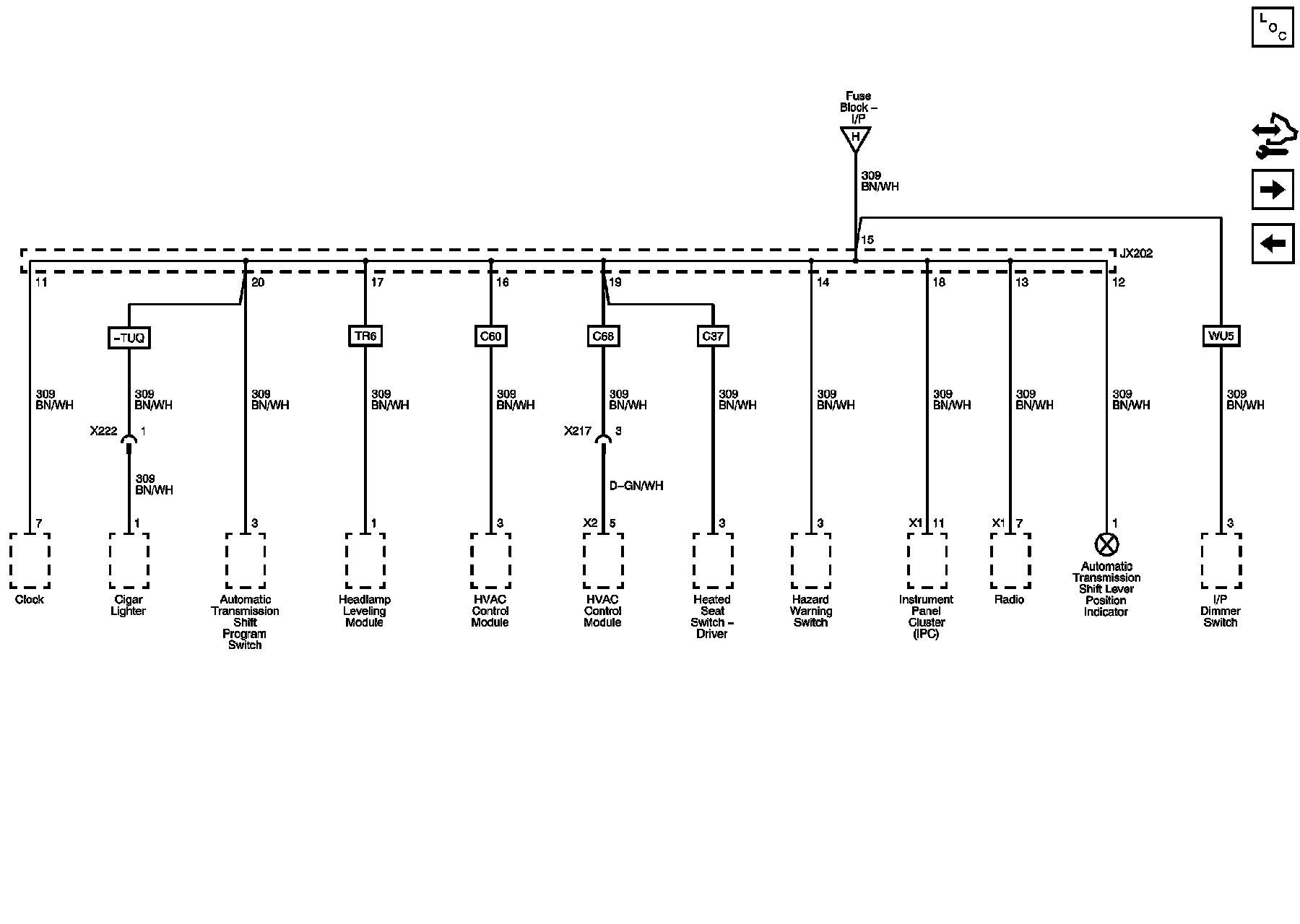

Power Distribution Diagram 7




Power Distribution Schematics (without WHB)

Fuse Block - Underhood - PK/LP RH Fuse (2 of 2)
