Mode Valve Actuator Replacement

Mode Valve Actuator Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).
1. Disconnect the negative battery cable.
2. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair).
3. Disconnect the electrical connector.

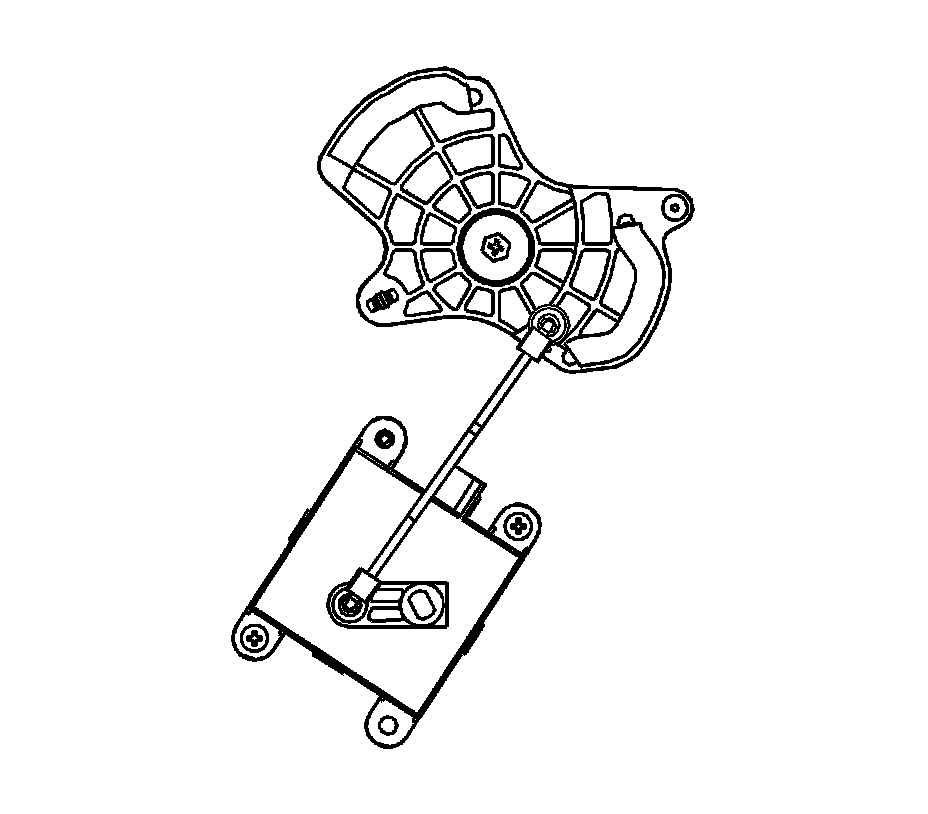

4. Remove the motor actuating rod by snapping out it out of the lever with needle-nose pliers.
5. Remove the motor retaining bolts.
6. Remove the mode door motor.

Installation Procedure




1. Install the mode door motor.
2. Install the motor retaining screws and tighten.
3. Install the actuating rod.
4. Connect the electrical connector.
5. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair).
6. Connect the negative battery cable.
