Air Inlet Valve Actuator Replacement

Air Inlet Valve Actuator Replacement

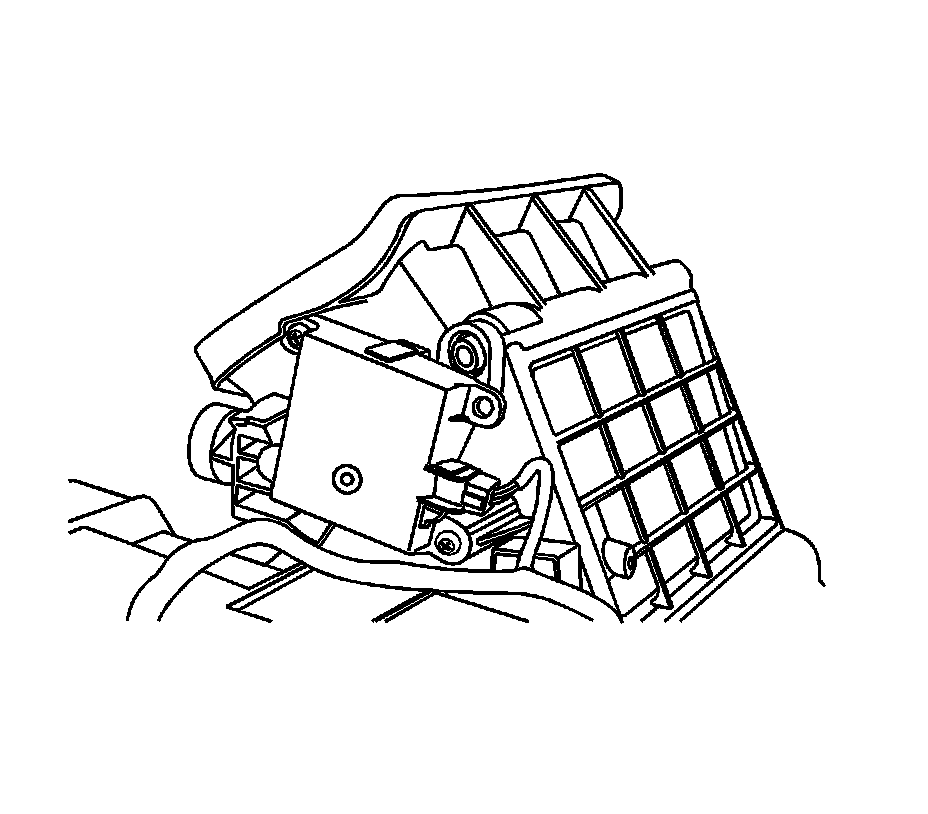

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).
1. Disconnect the negative battery cable.
2. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair).
3. Disconnect the electrical connector.
4. Remove the motor retaining screws.
5. Remove the motor.

Installation Procedure




1. Install the motor.
2. Install the motor retaining bolts and tighten.
3. Connect the electrical connector.
4. Install the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair)
5. Connect the negative battery cable.
