Air Door Actuator / Motor: Diagrams




Component Connector End Views

Air Temperature Actuator (C68)






Mode Actuator (C68)






Recirculation Actuator (C60)

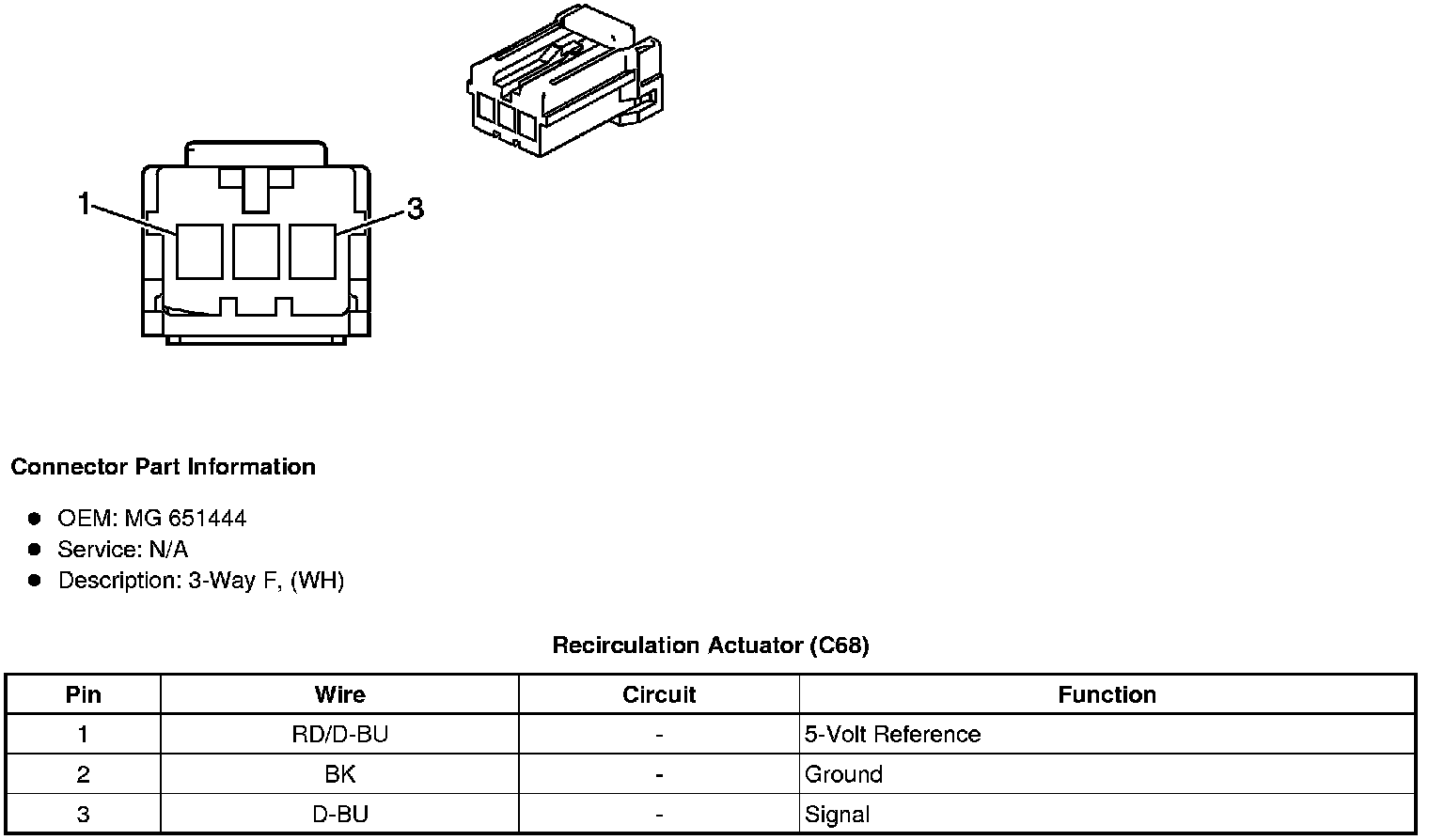

Recirculation Actuator (C68)
