System Diagram




Starting and Charging Schematics

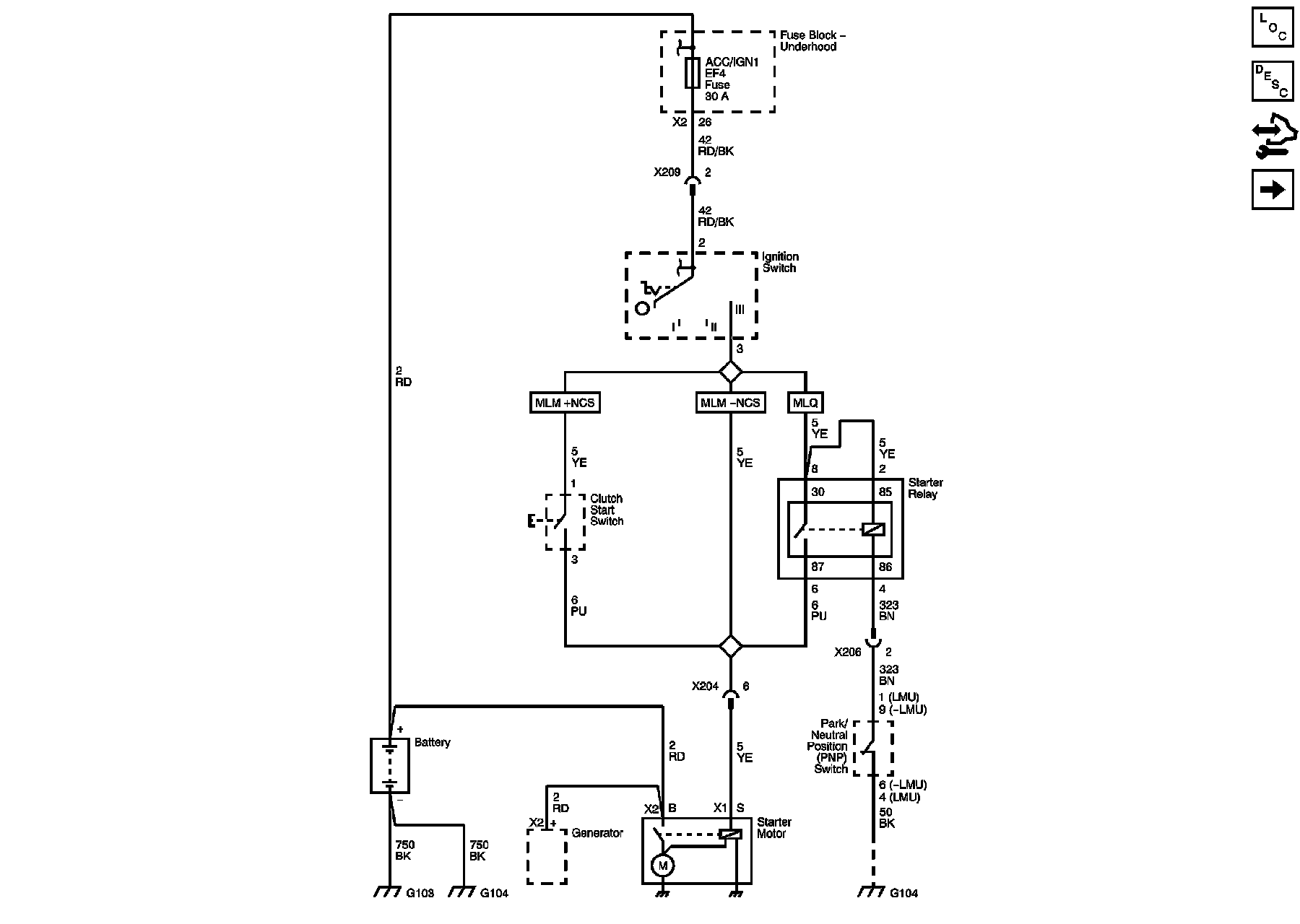

Starting System (without WHB)

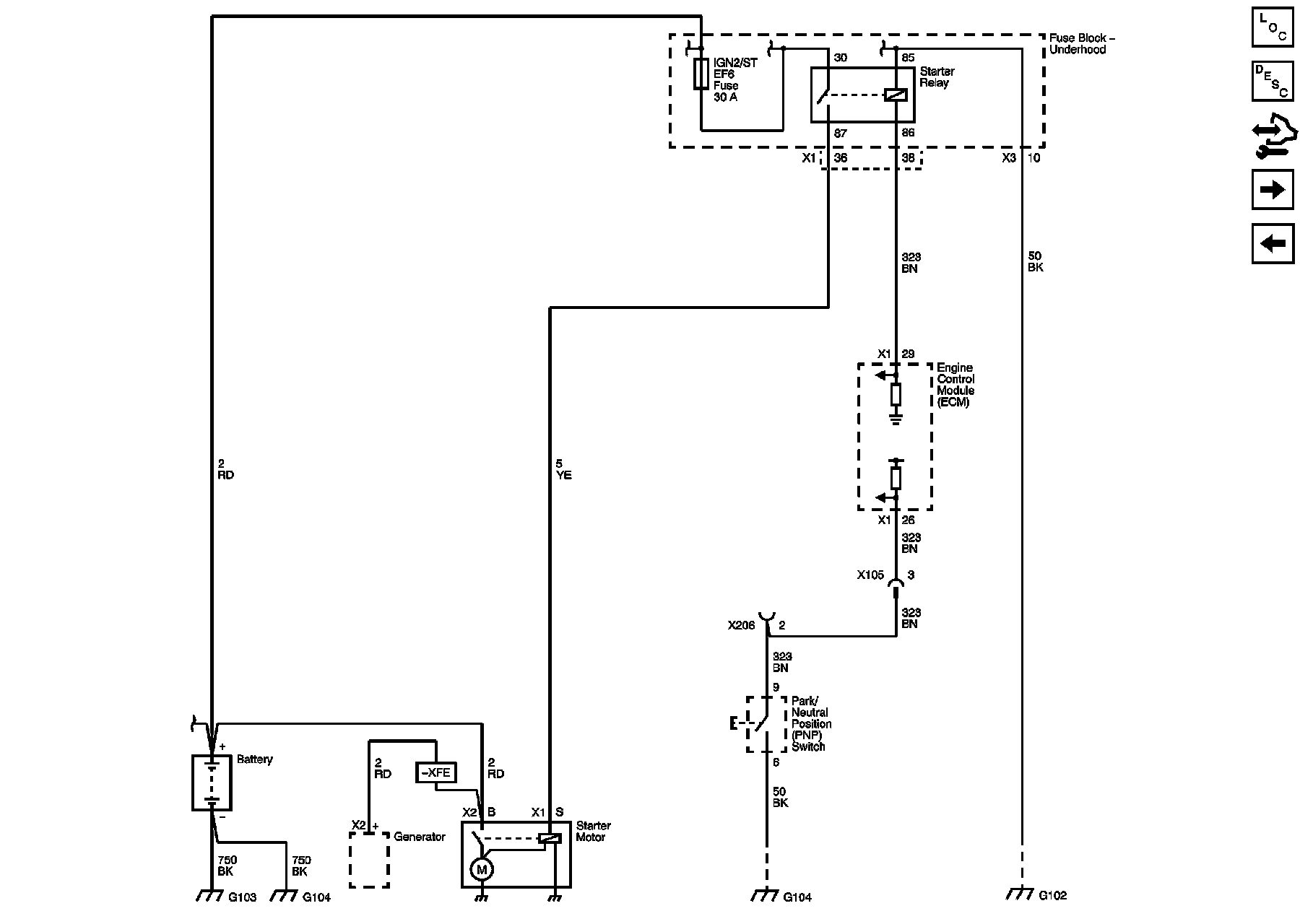

Starting System (with WHB)

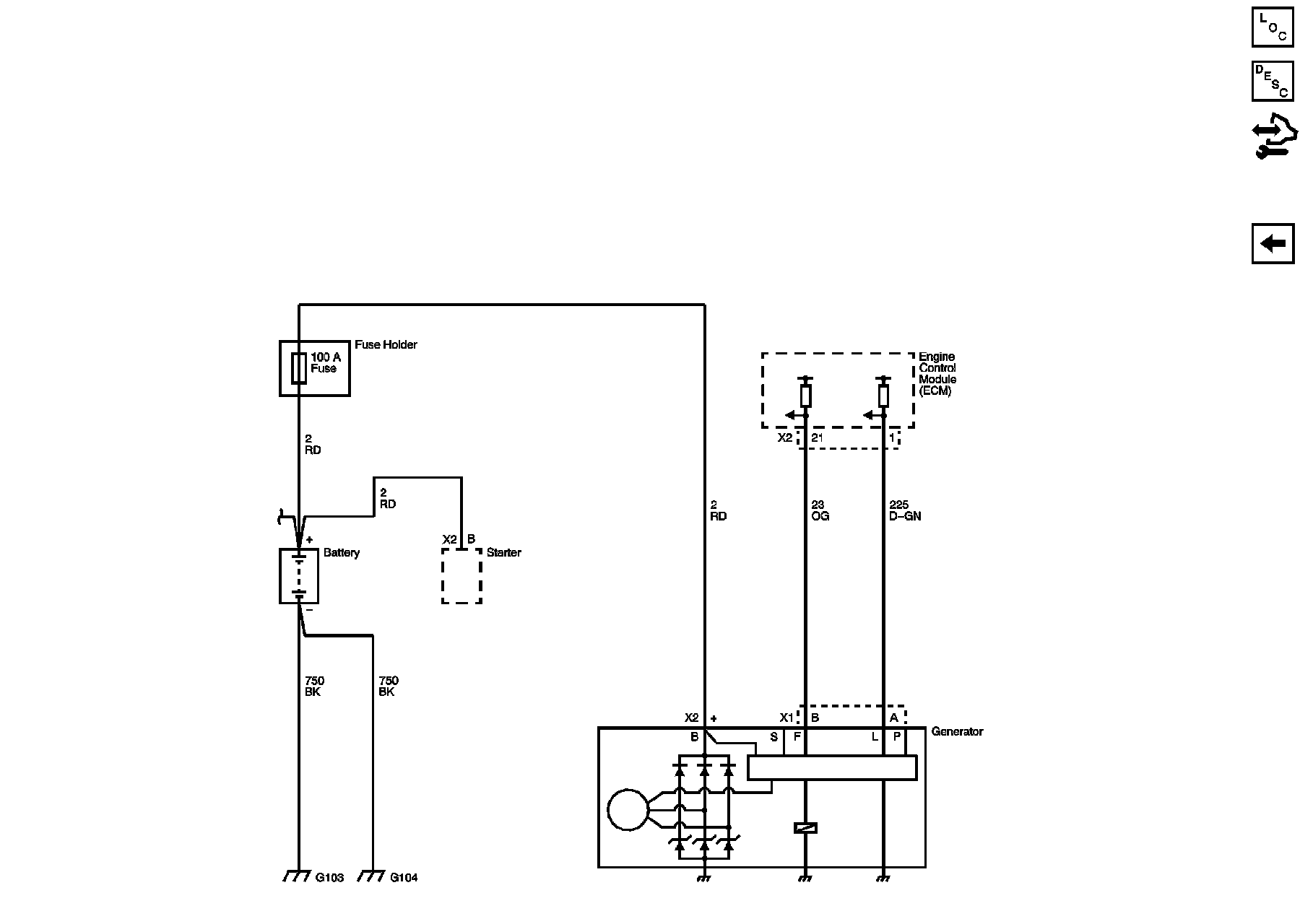

Charging System (without WHB)

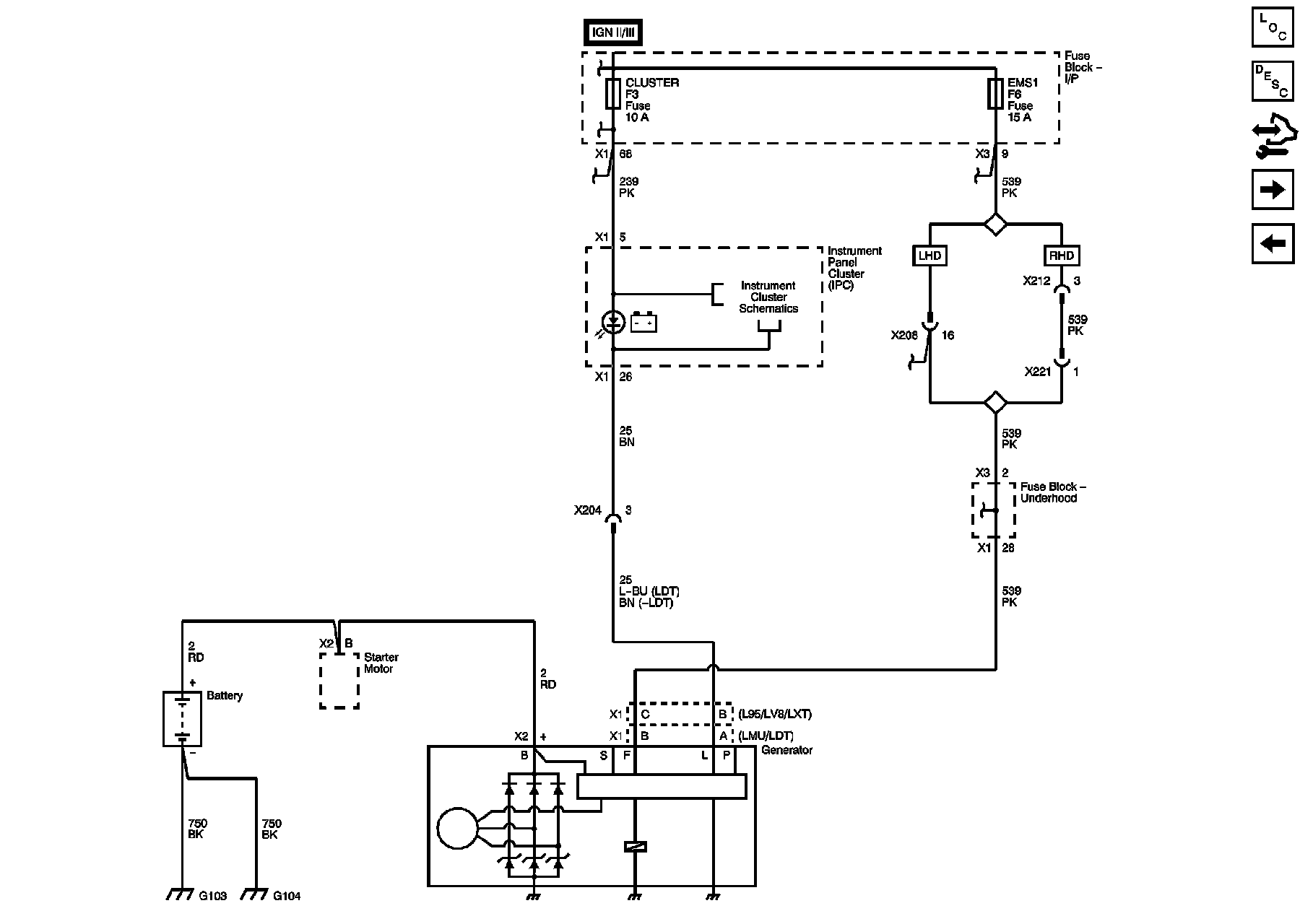

Charging System (with WHB)
