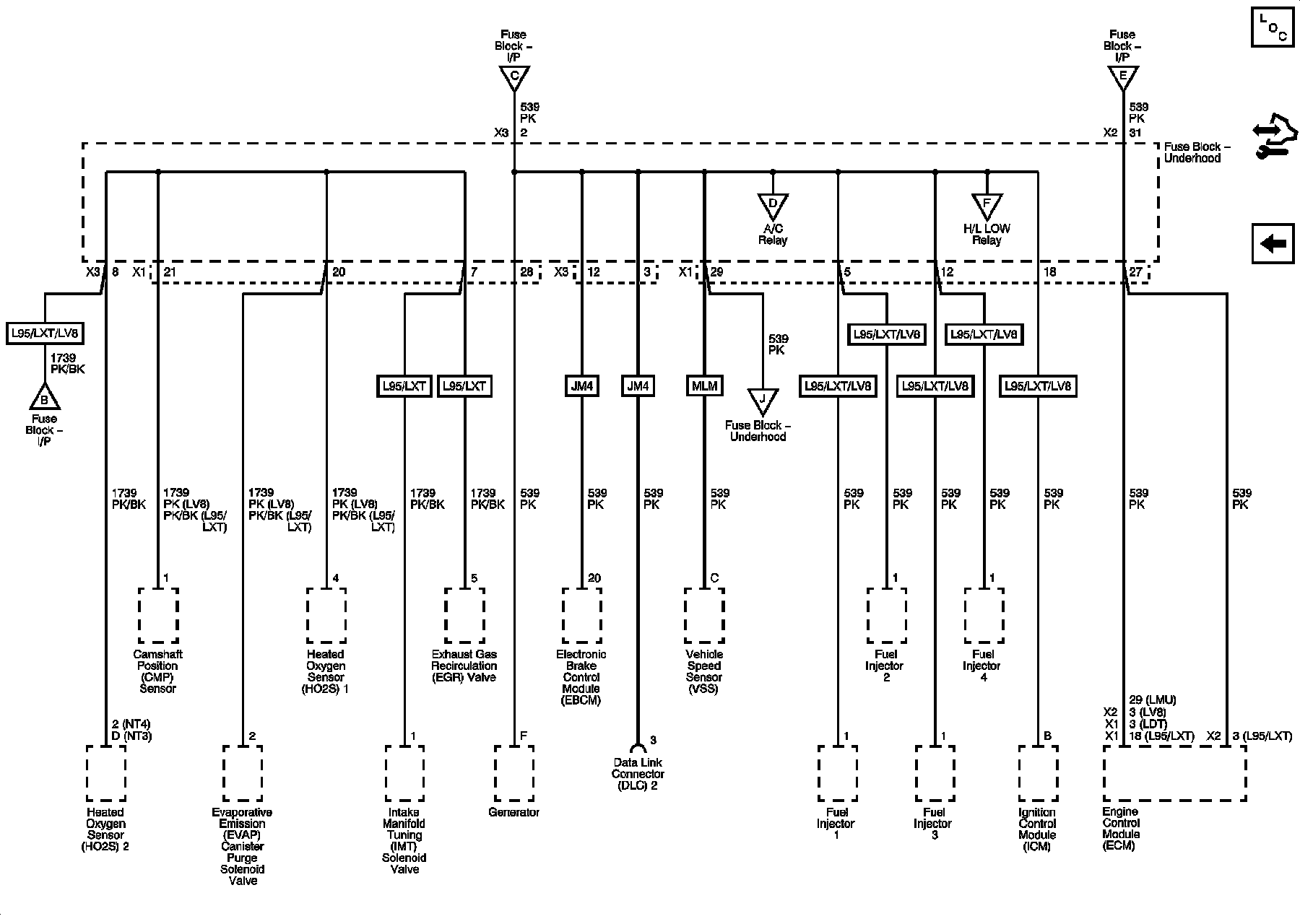

Power Distribution Diagram 11




Power Distribution Schematics (without WHB)

EMS1, EMS2 Fuses (2 of 2)
