Power Distribution Diagram 7




Power Distribution Schematics (with WHB)

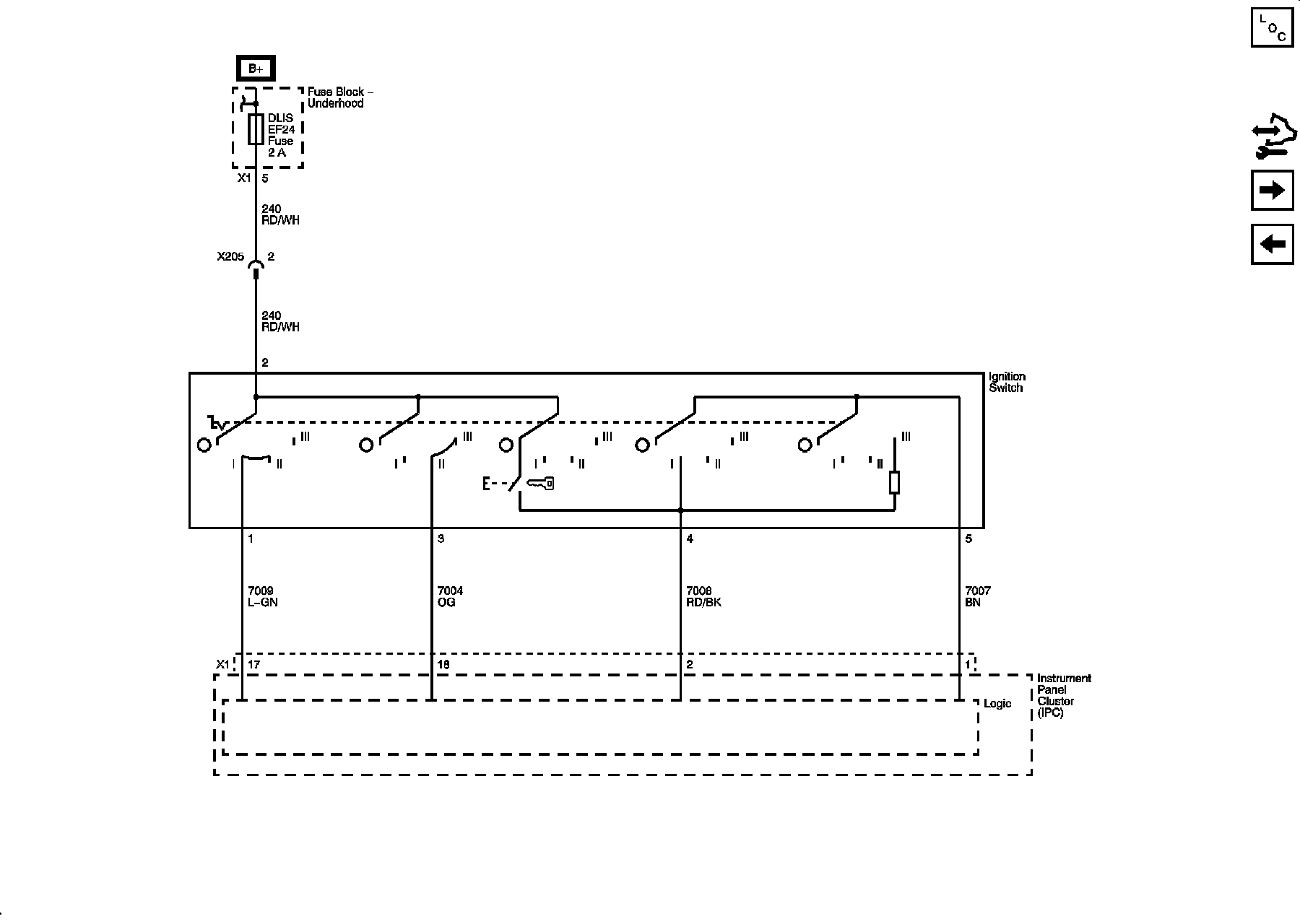

Fuse Block - Underhood - DLIS Fuse and Ignition Switch
