Power Distribution Diagram 6




Power Distribution Schematics (with WHB)

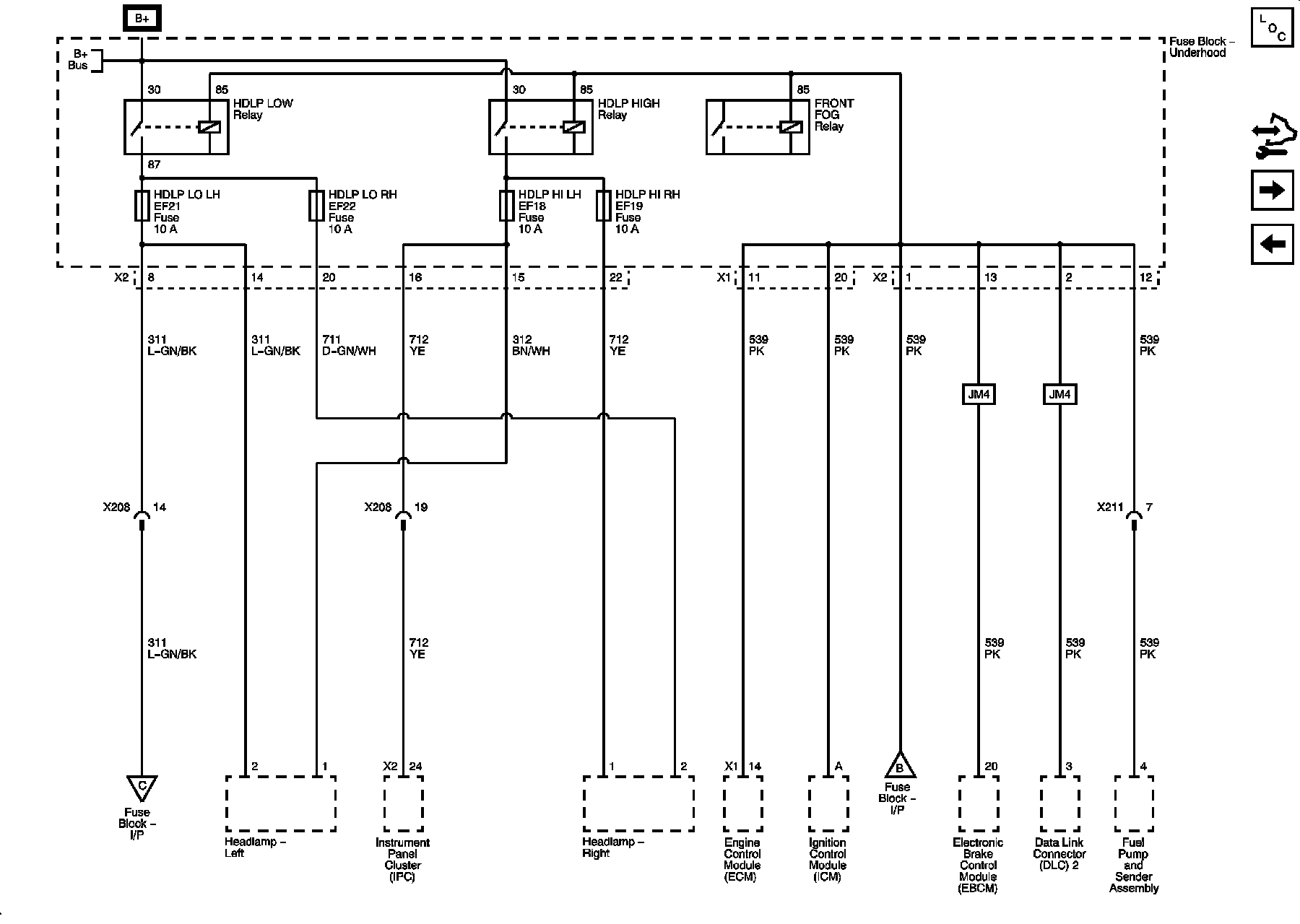

Fuse Block - Underhood - HDLP Fuses, FRONT FOG and HDLP Relays
