Pontiac
>>
2009
>>
Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution Diagrams (with WHB)
>>
Power Distribution Diagram 3
Power Distribution Diagram 3
Power Distribution Schematics (with WHB)
Fuse Block

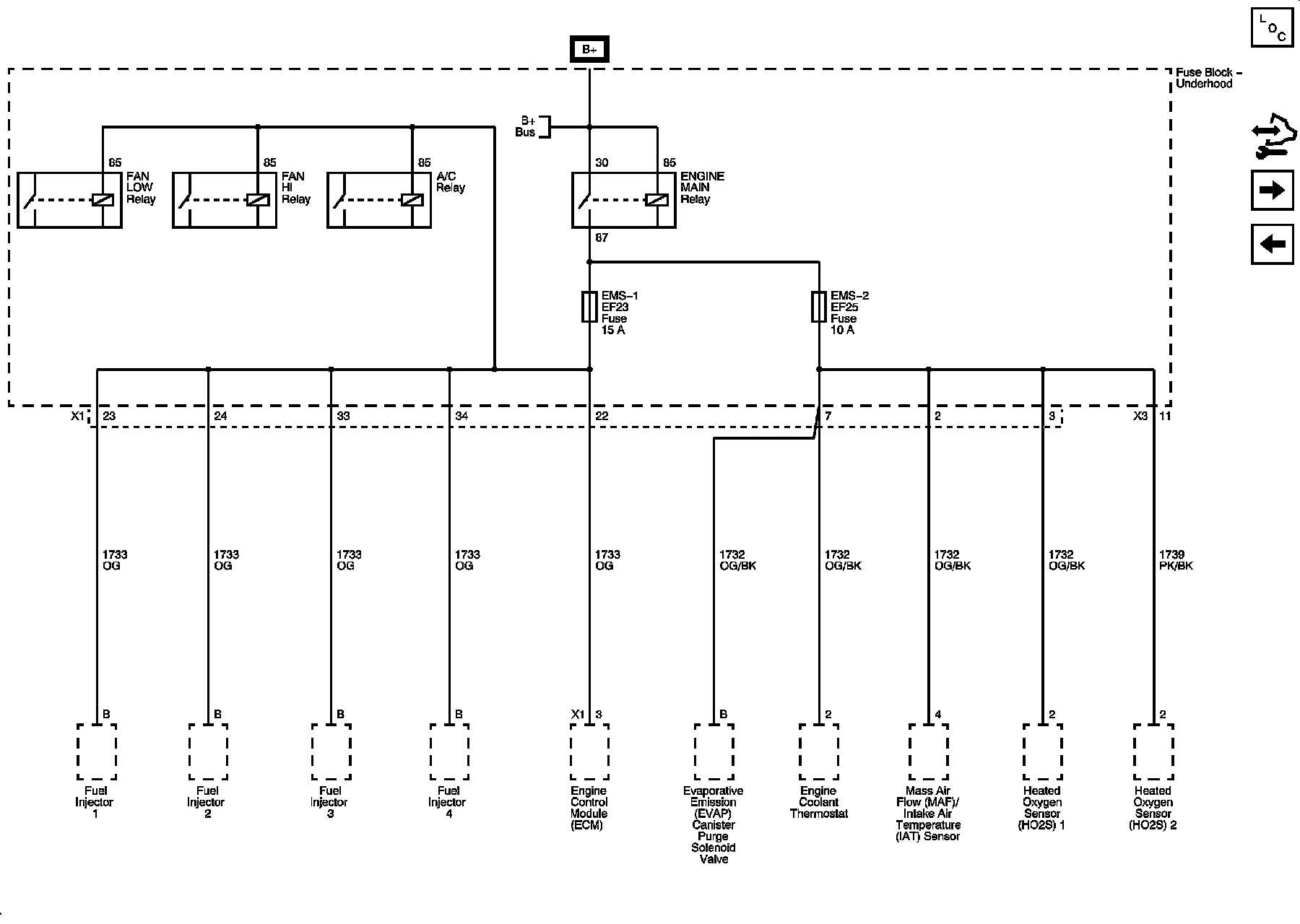

- Underhood - EMS-1, EMS-2 Fuses, and ENGINE MAIN, FAN LOW, FAN HI, A/C Relays
