Wave (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution Diagrams (with WHB)
>>
Power Distribution Diagram 2
Power Distribution Diagram 2
Power Distribution Schematics (with WHB)
Fuse Block

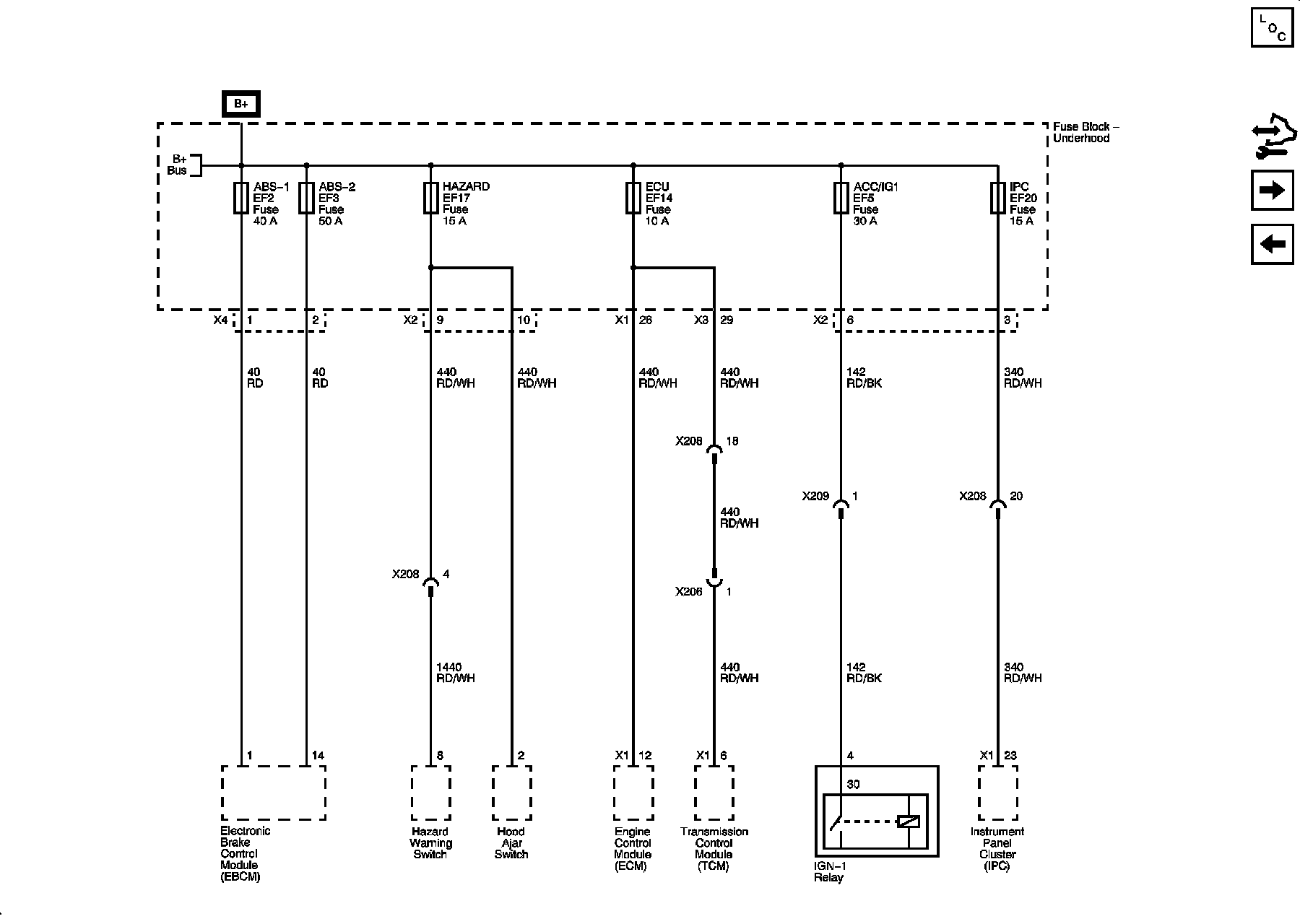

- Underhood - ABS-1, ABS-2, HAZARD, ECU, ACC/IG1, IPC Fuses
