Data Communication Schematics (with WHB)




Data Communication Schematics (with WHB)

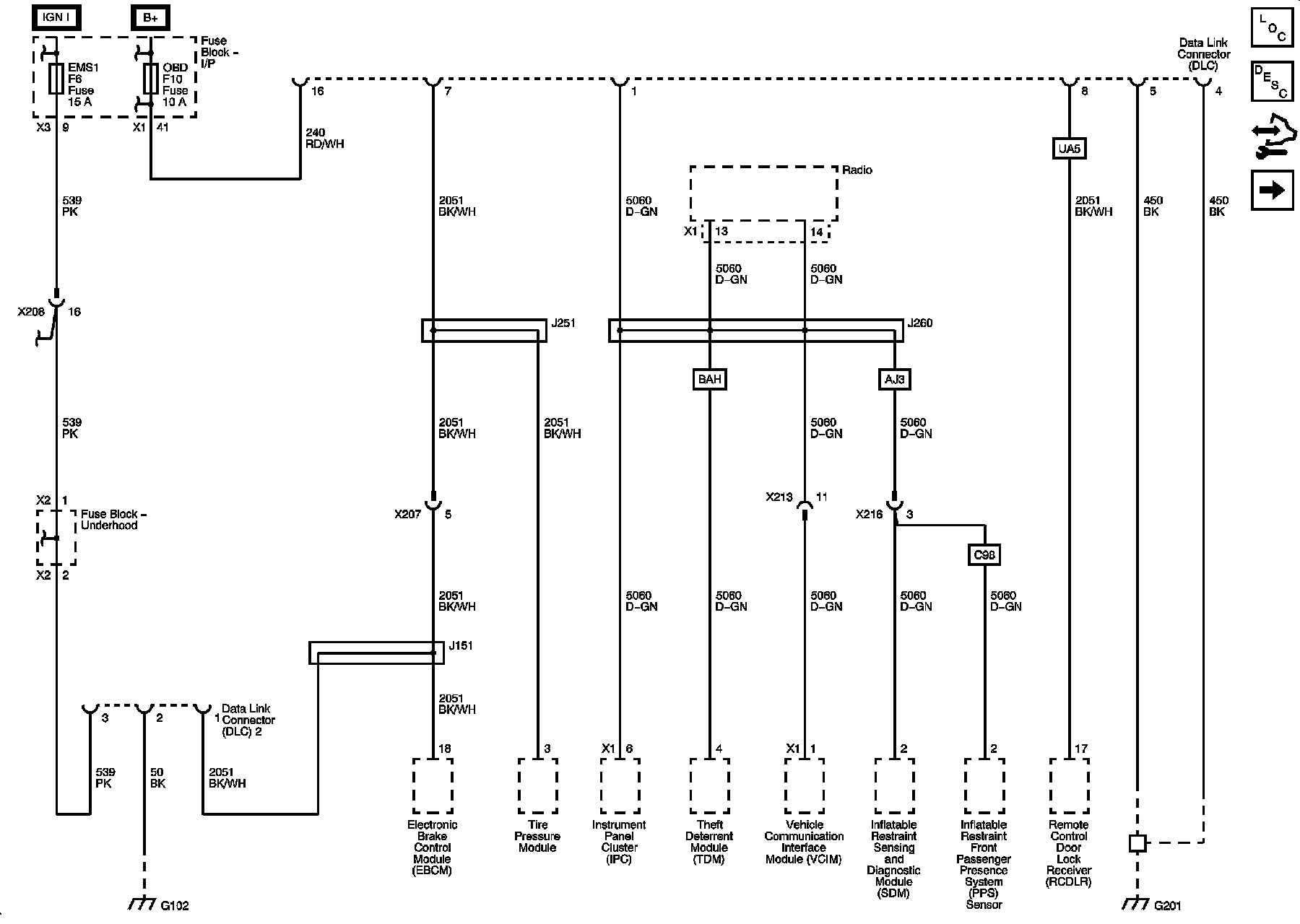

Power, Ground, Data Link Connector, Low Speed GMLAN

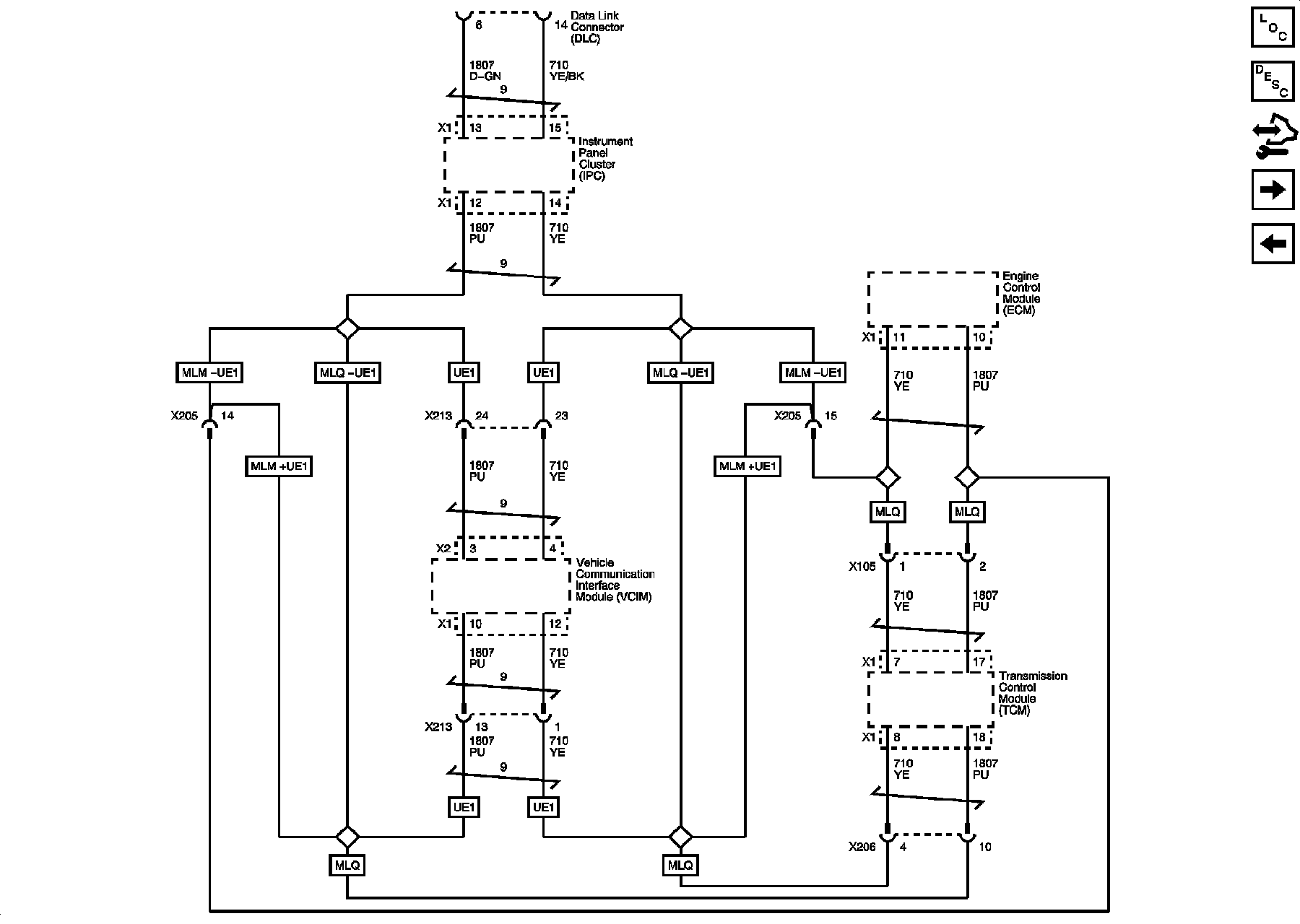

High Speed GMLAN

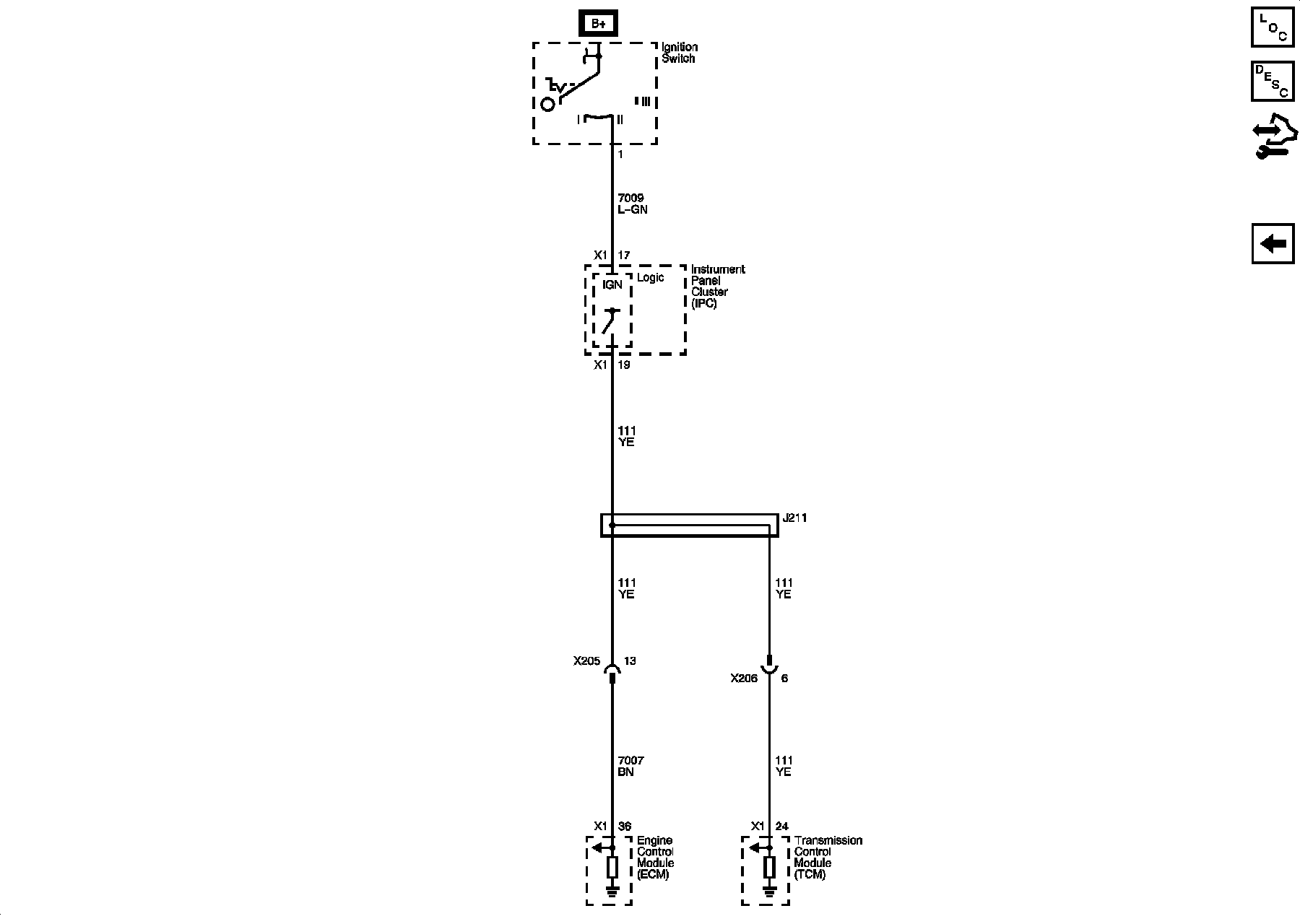

Accessory Wake Up
