HVAC Schematics (without WHB)




HVAC Schematics (without WHB)

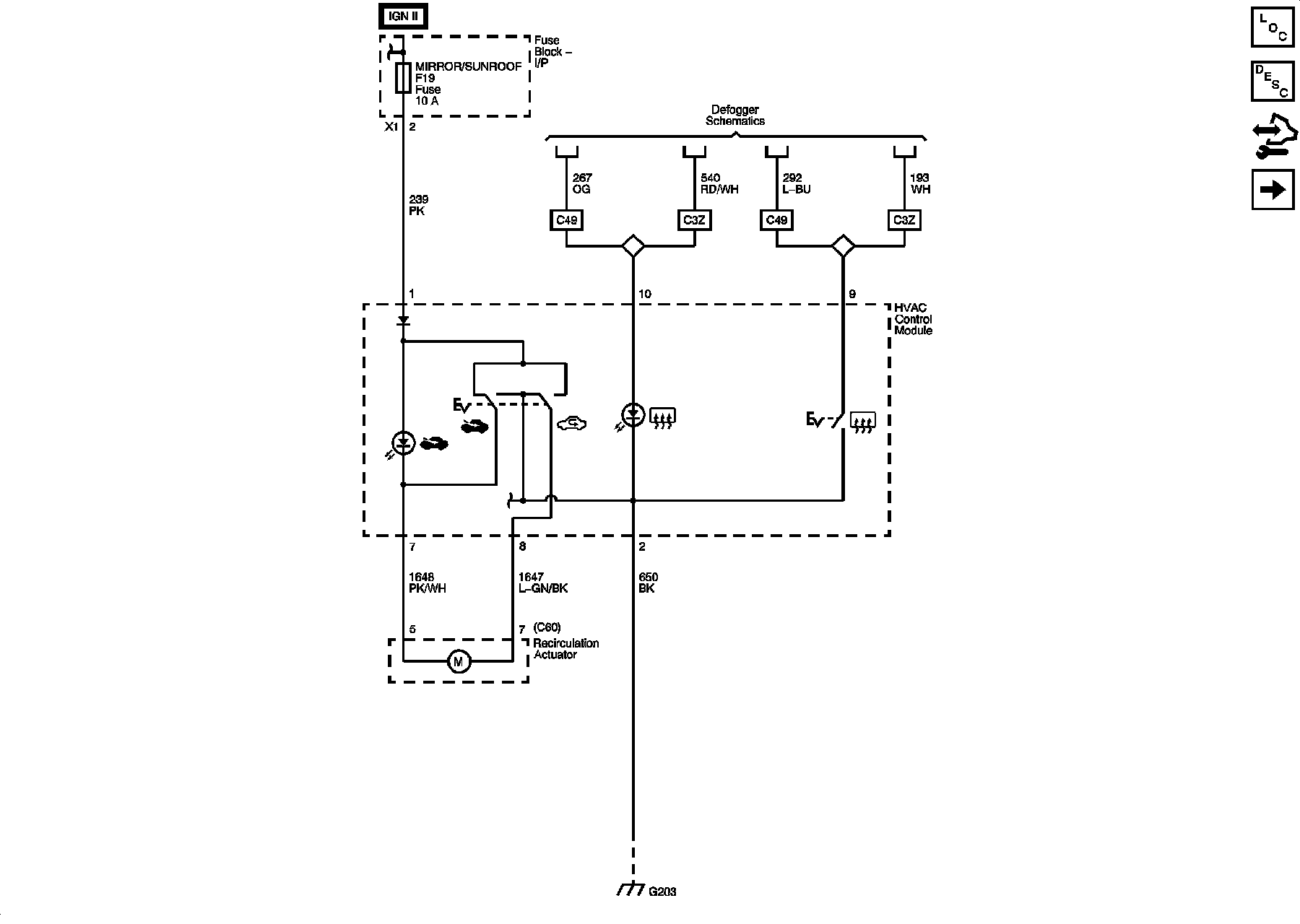

Power, Ground, Subsystem References

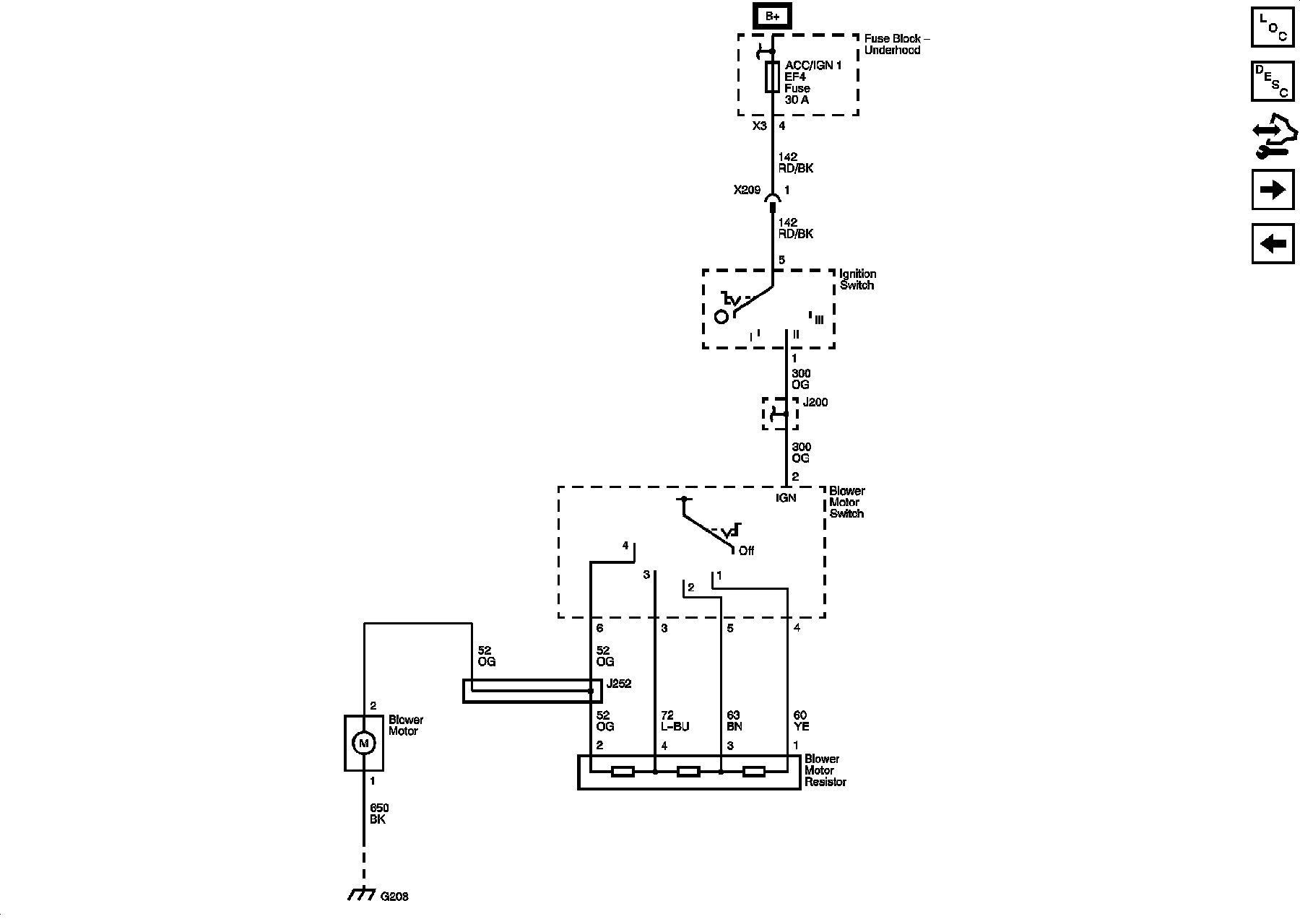

Blower Controls

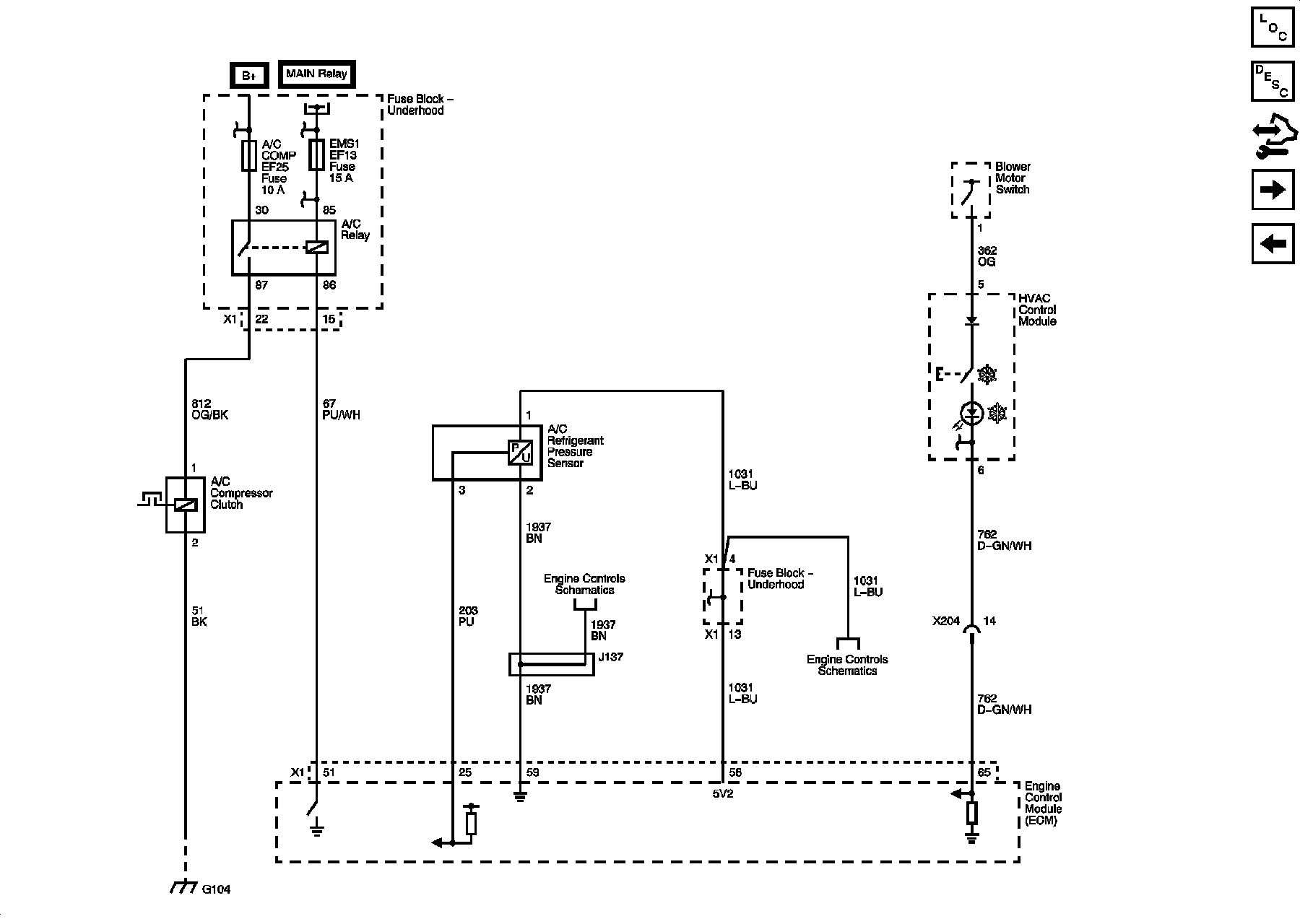

Compressor Controls (LDT)

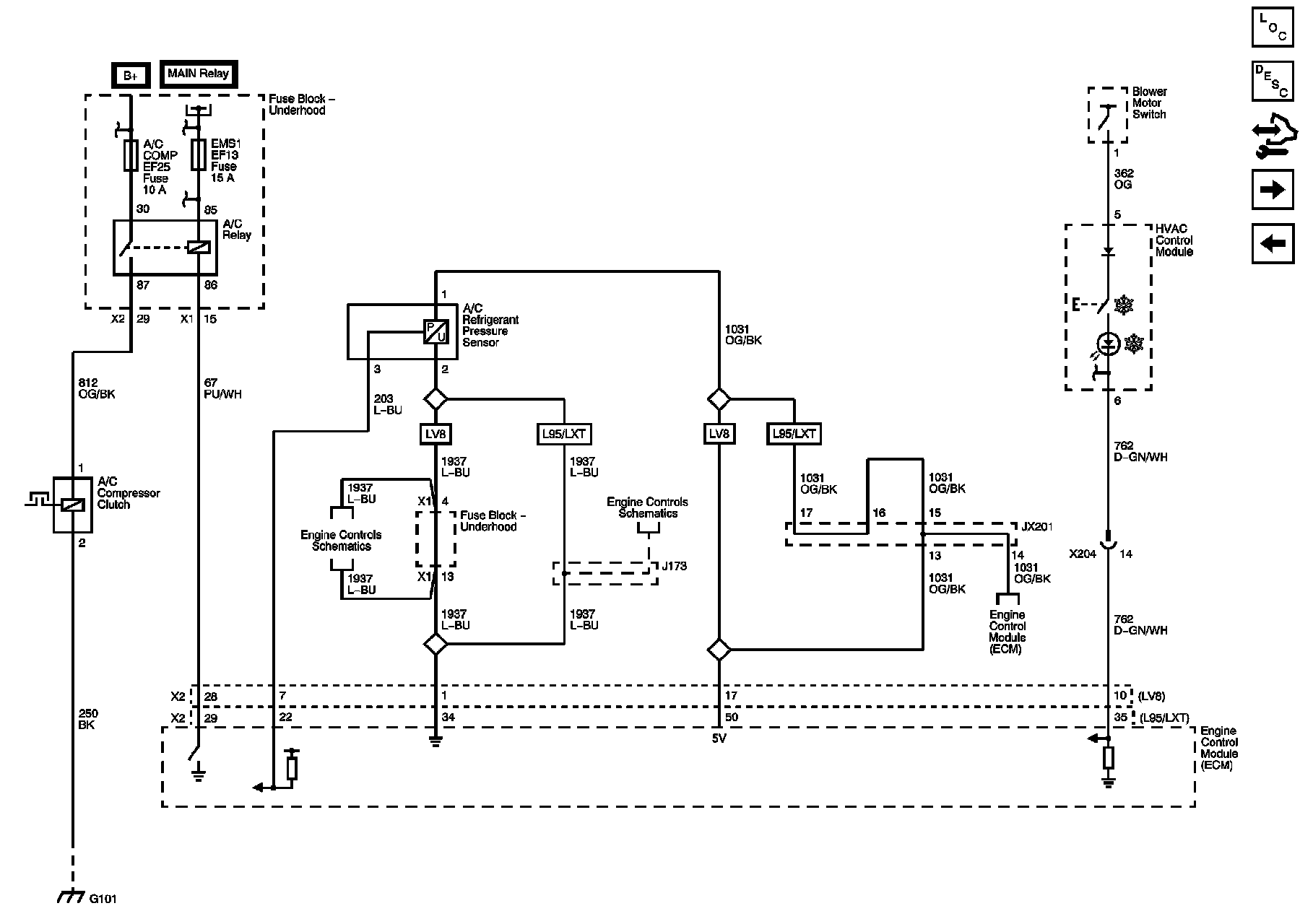

Compressor Controls (L95/LV8/LXT)

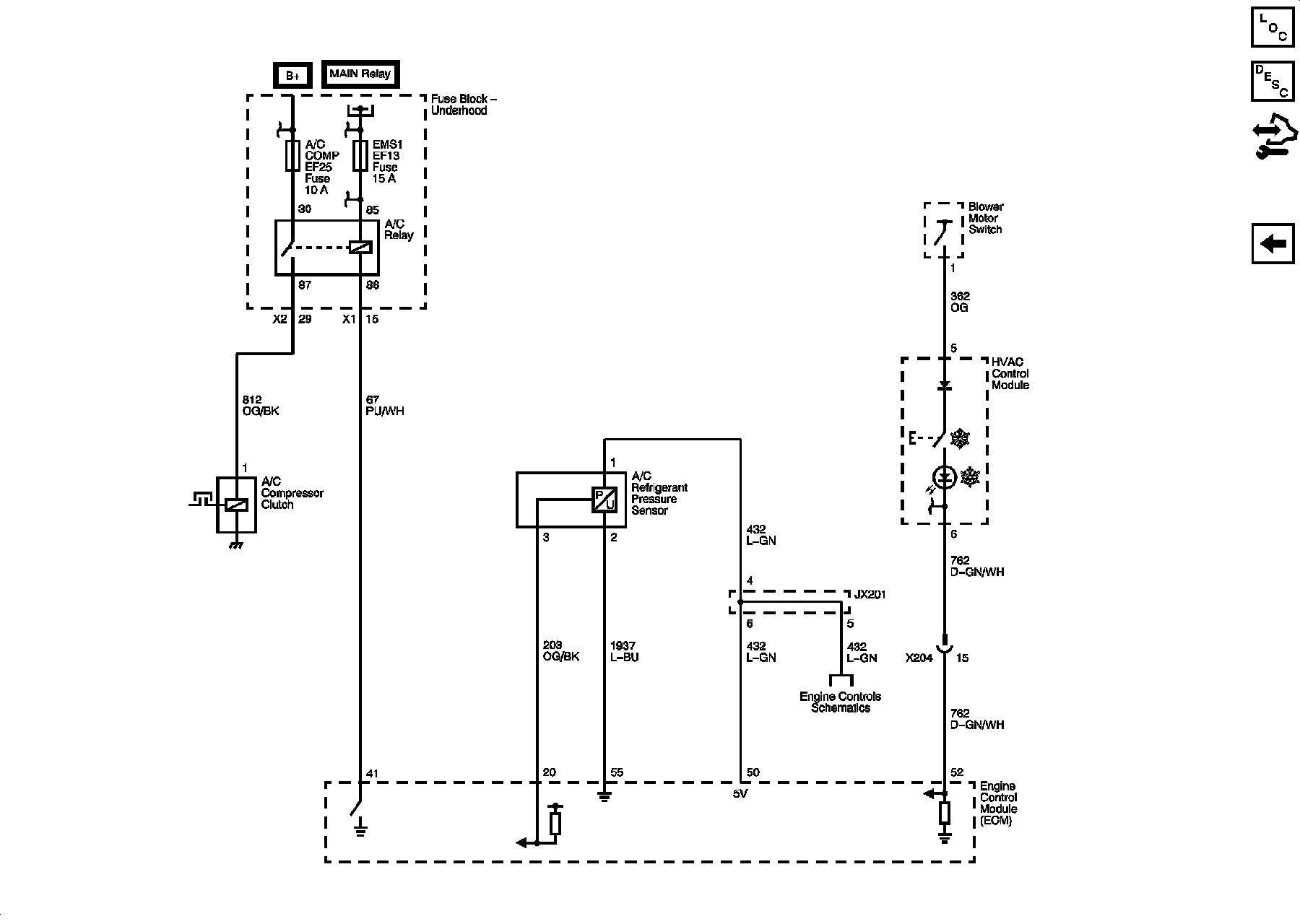

Compressor Controls (LMU)
