A - Z Index
Master Electrical Component List

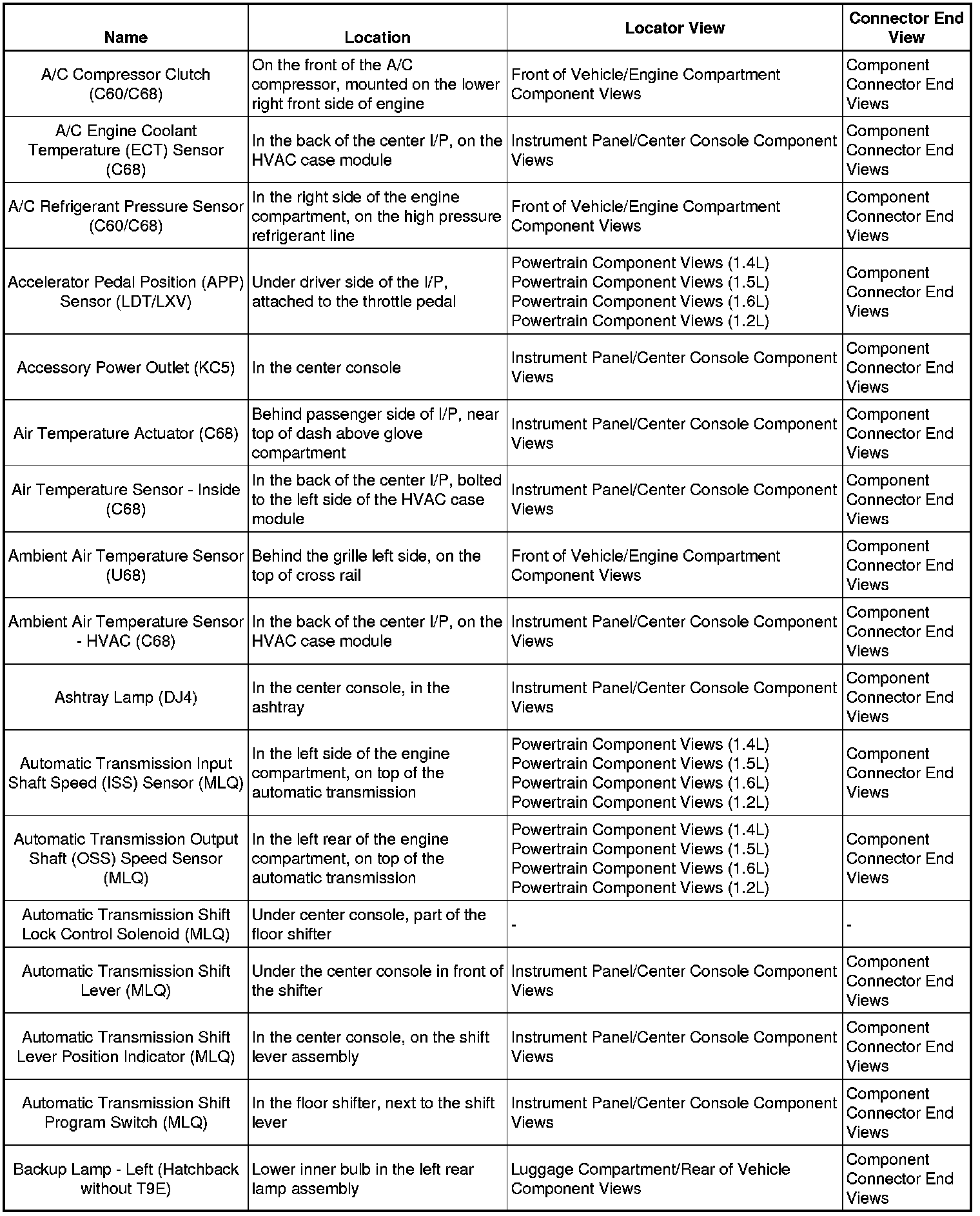

A/C - Ba:

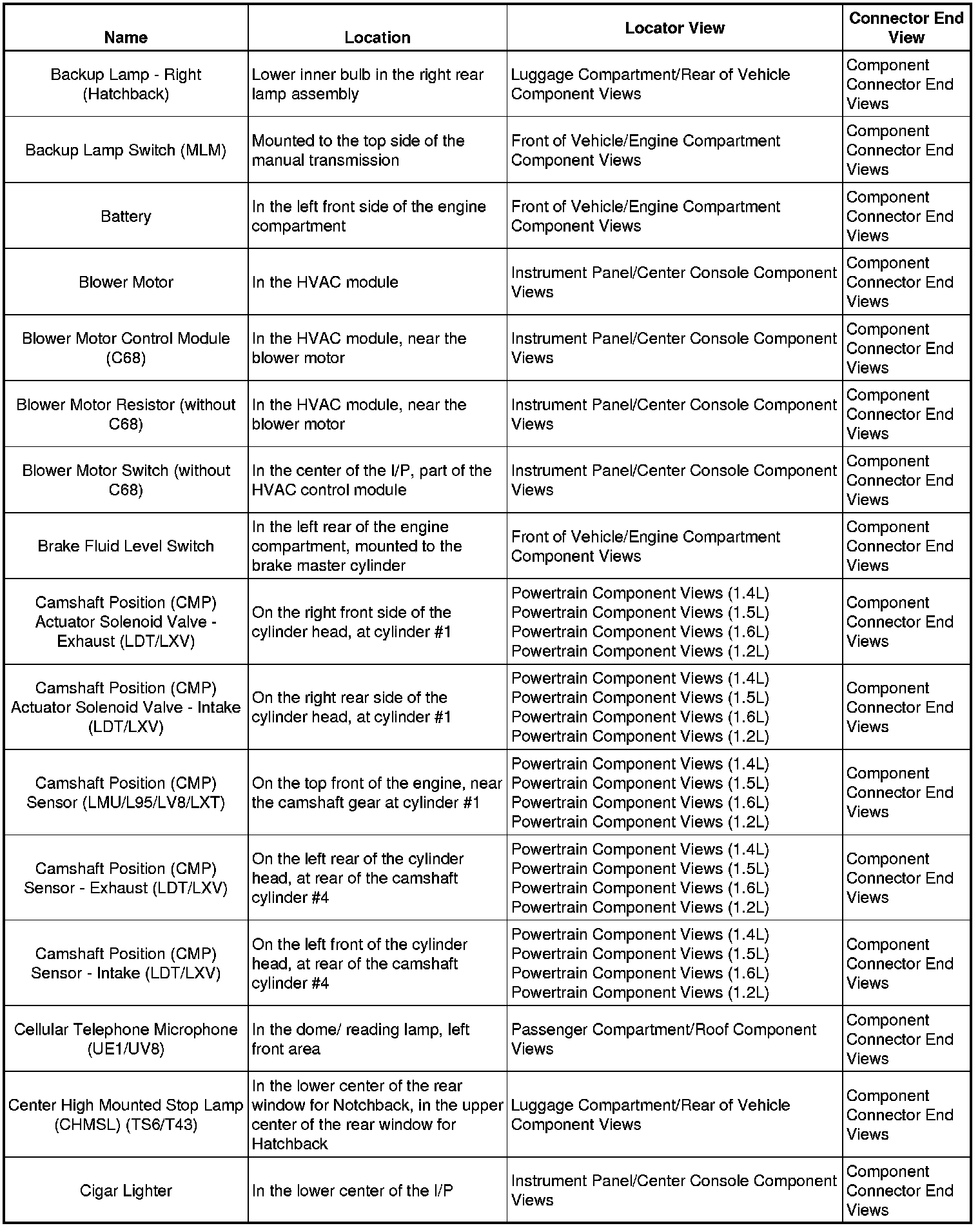

Ba - Ci:

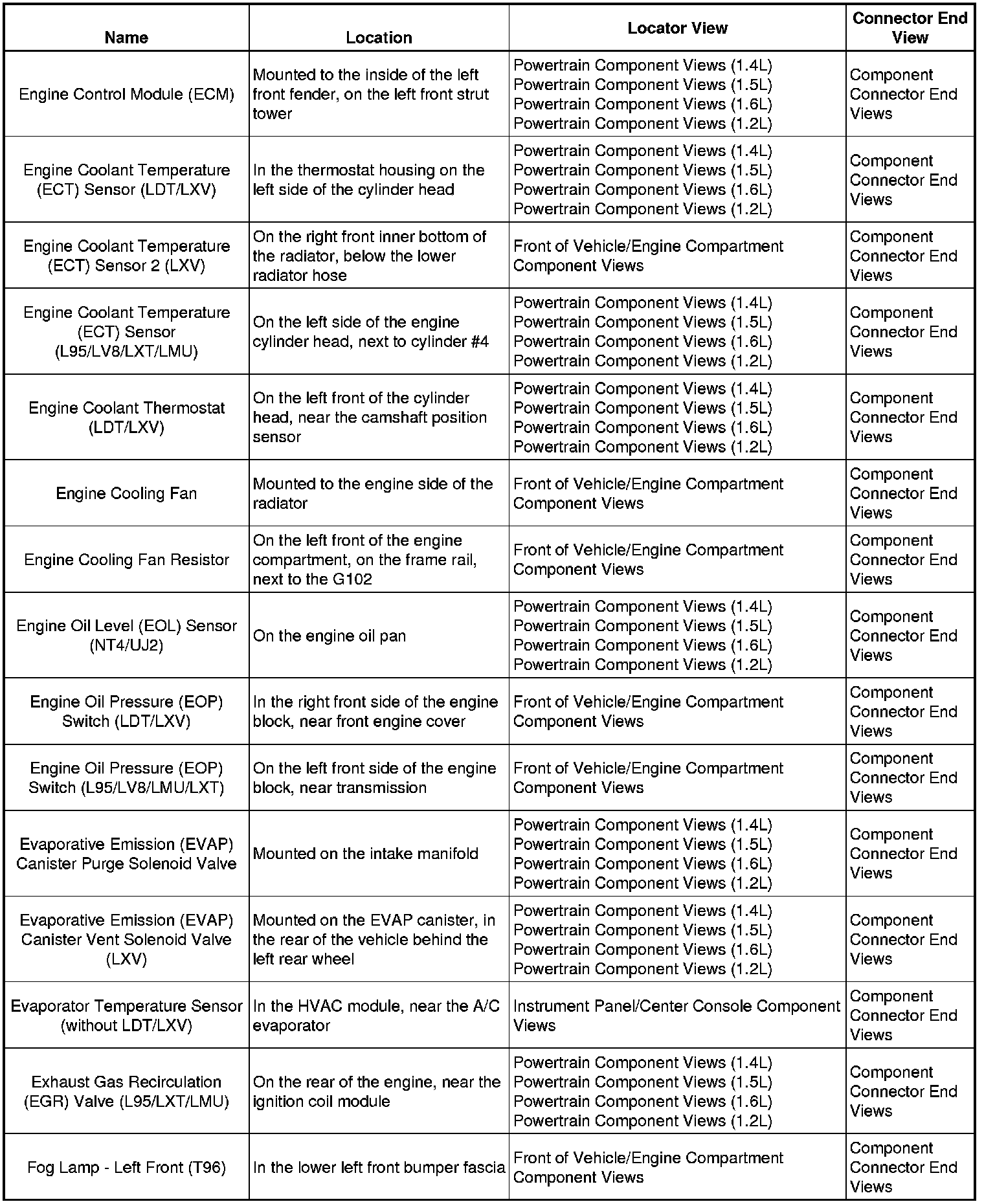

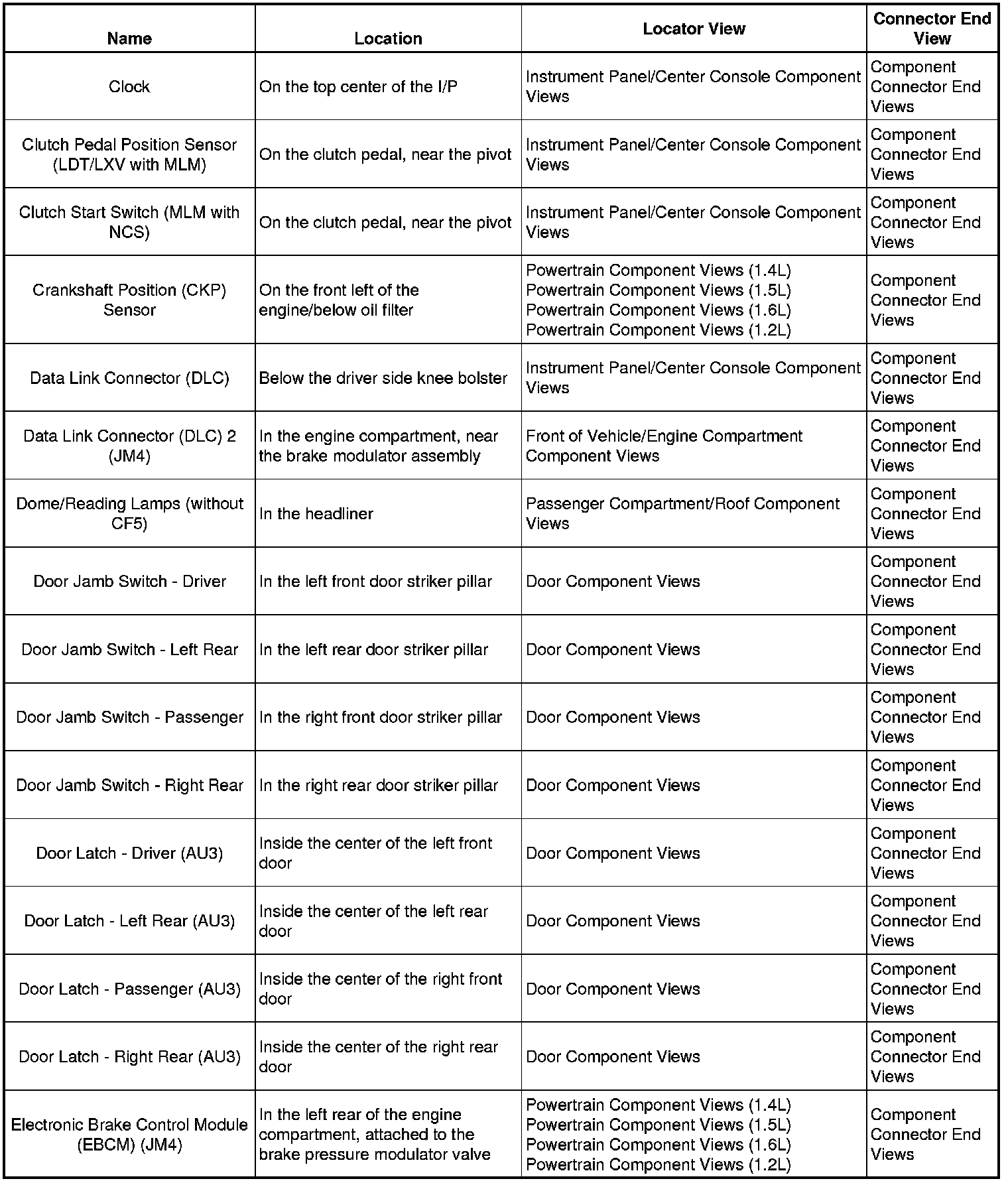

Cl - El:

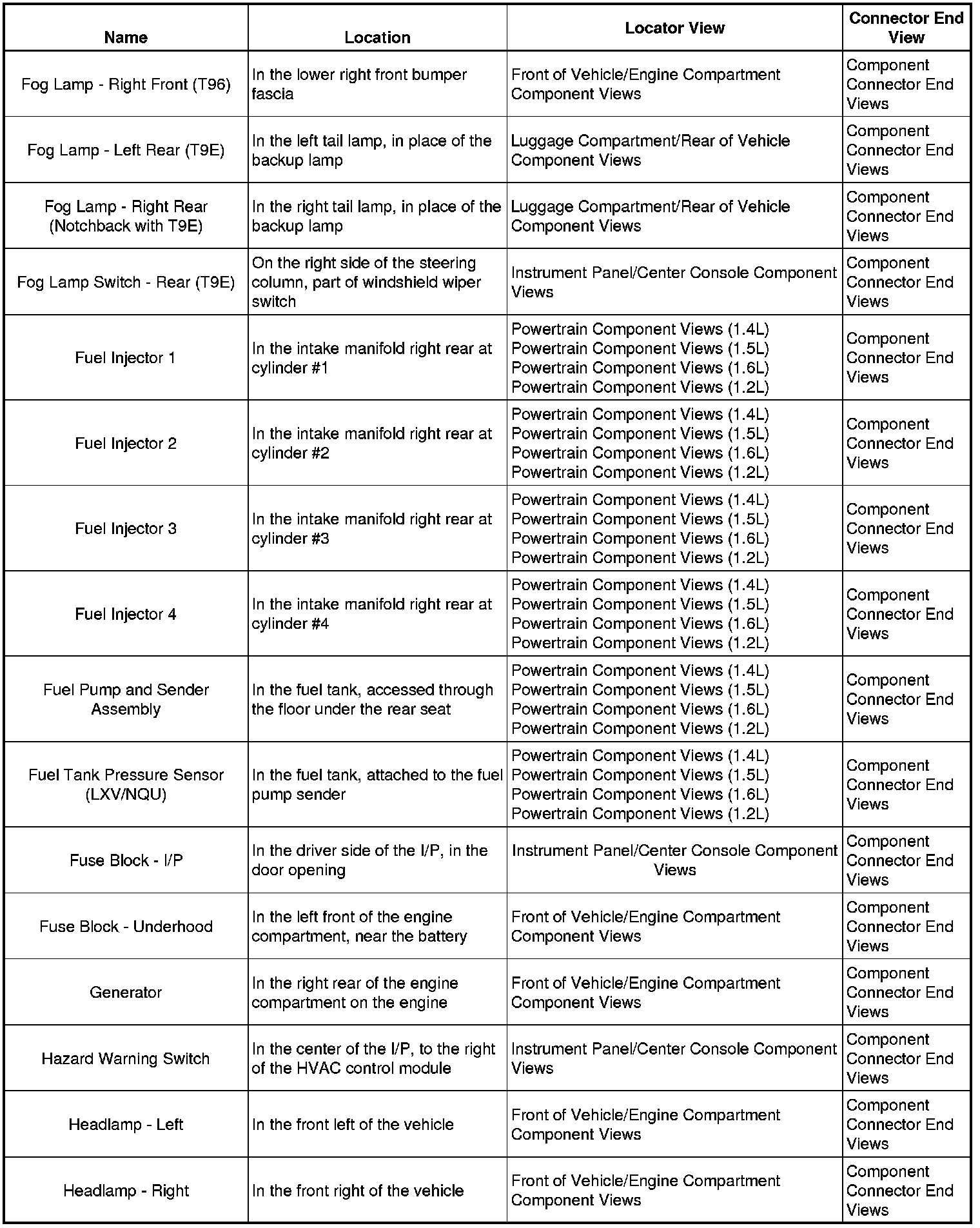

En - Fo:
Fo - He:

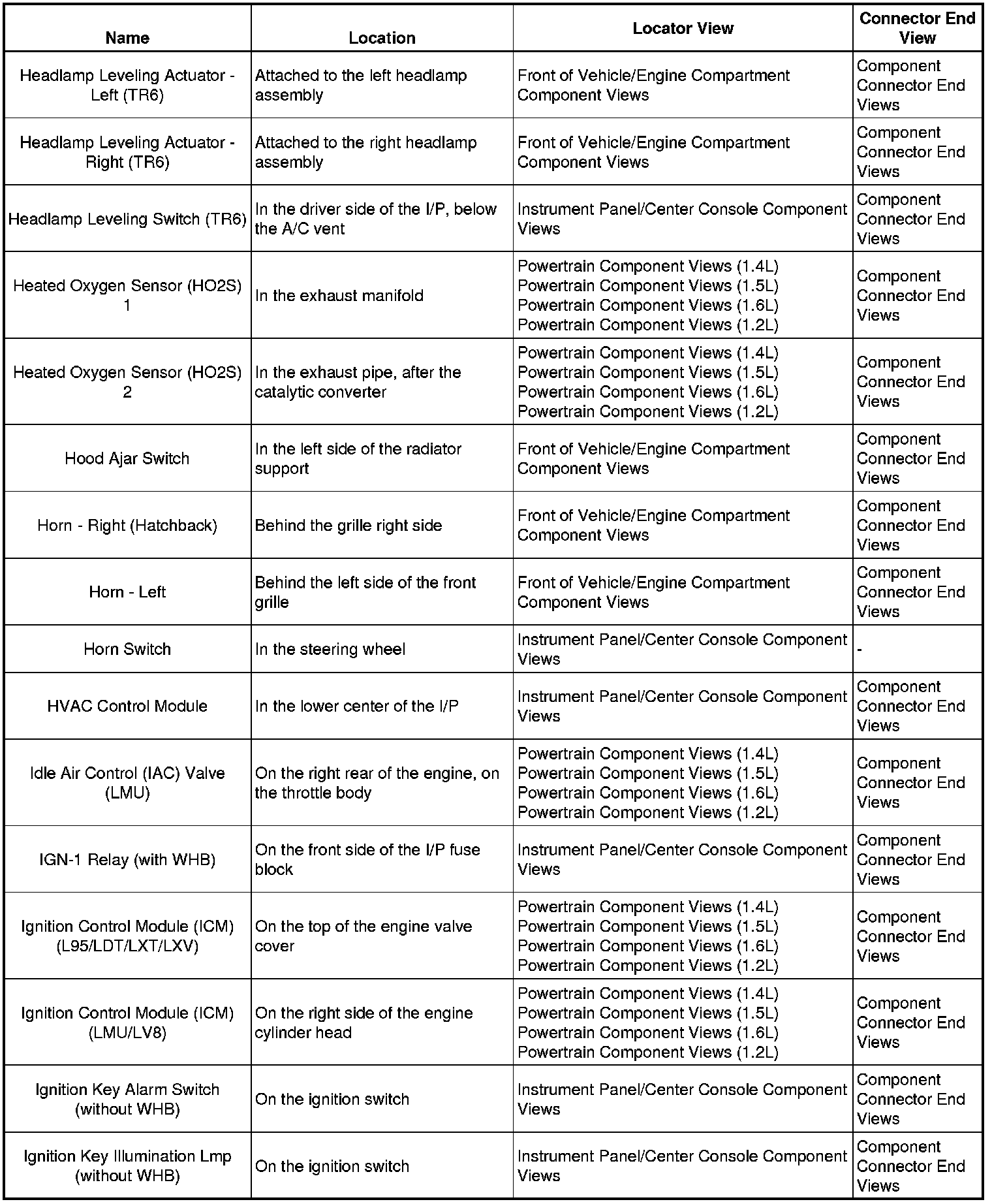

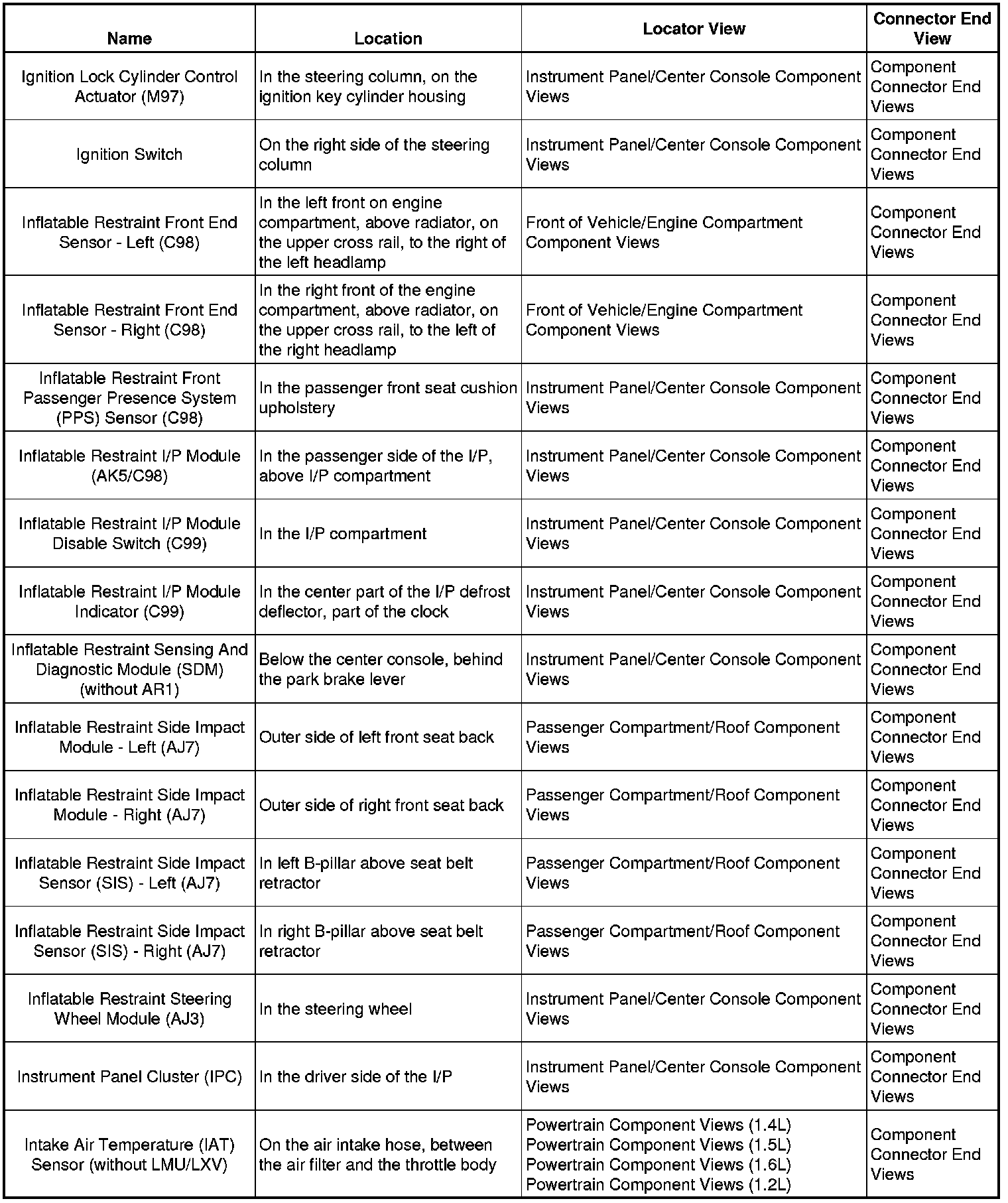

He - Ig:
Ig - In:

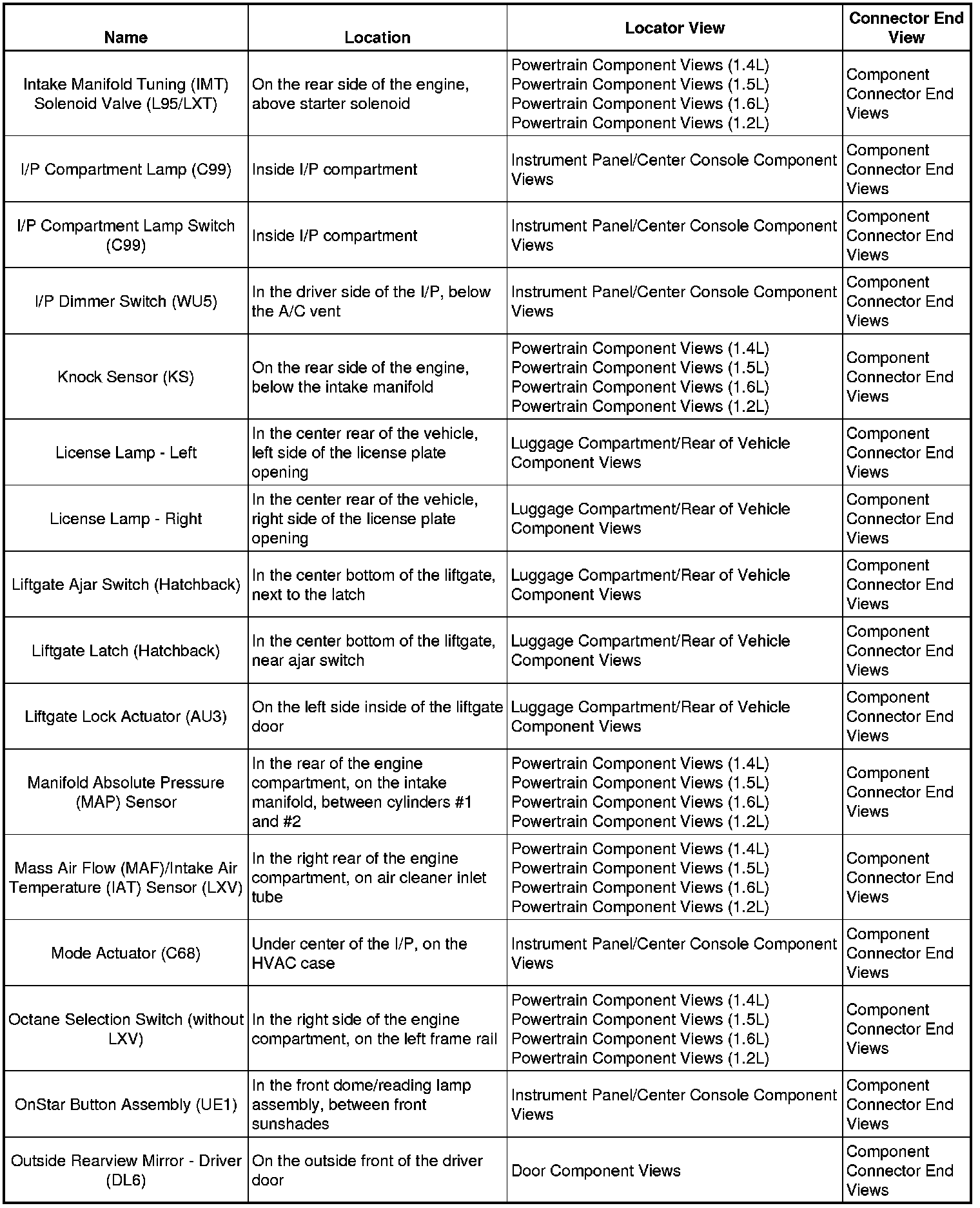

In - Ou:

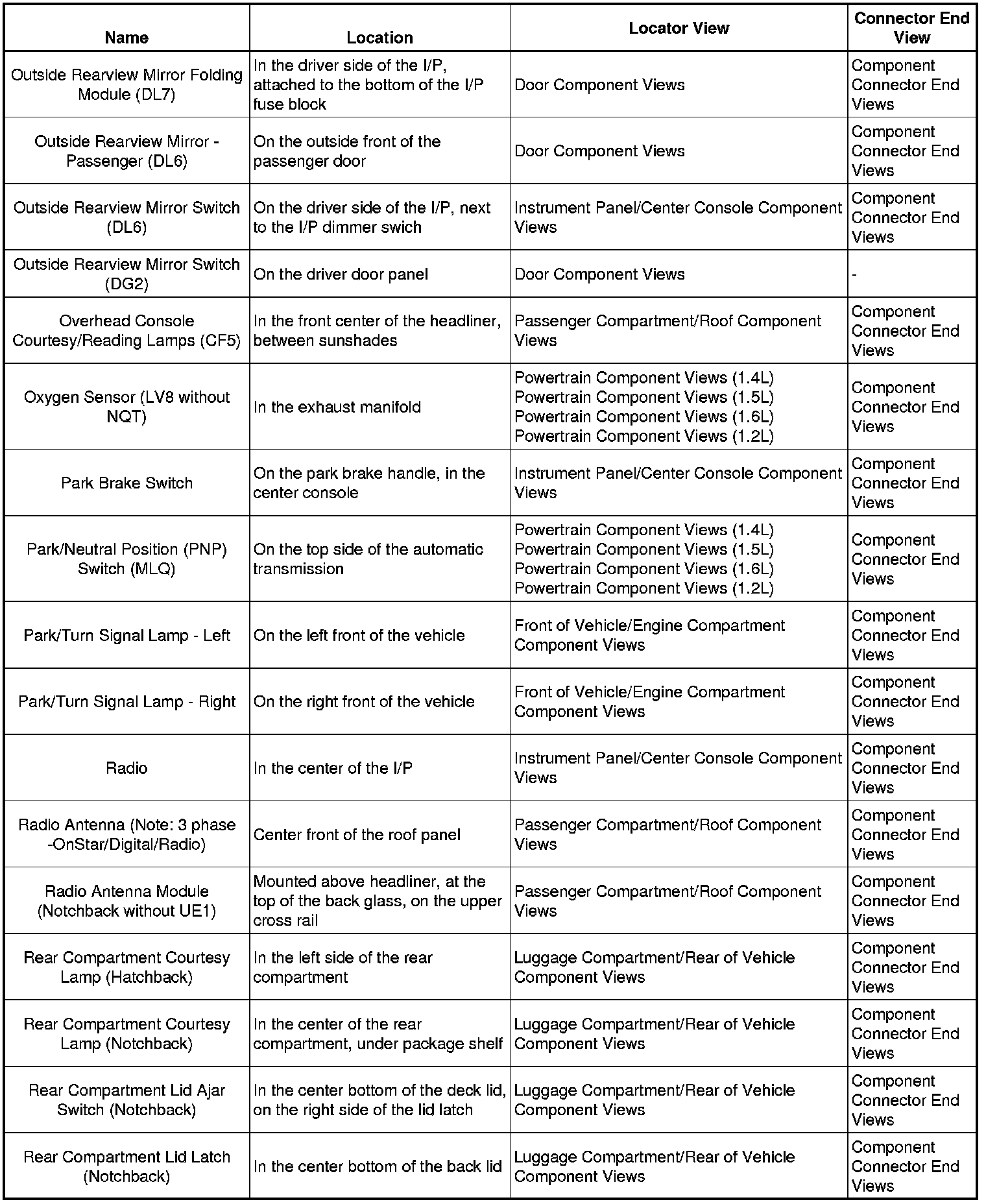

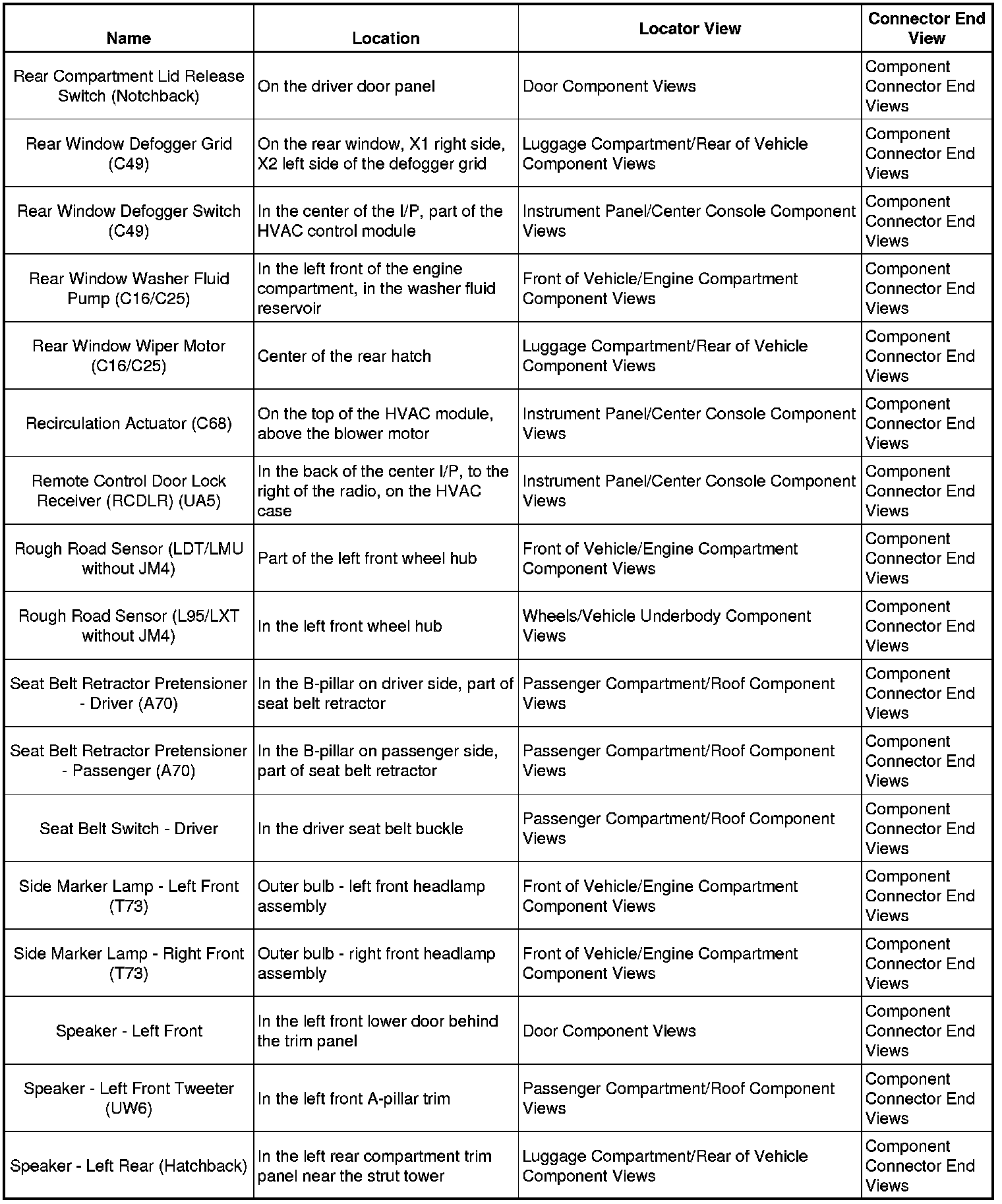

Ou - Re:
Re - Sp:

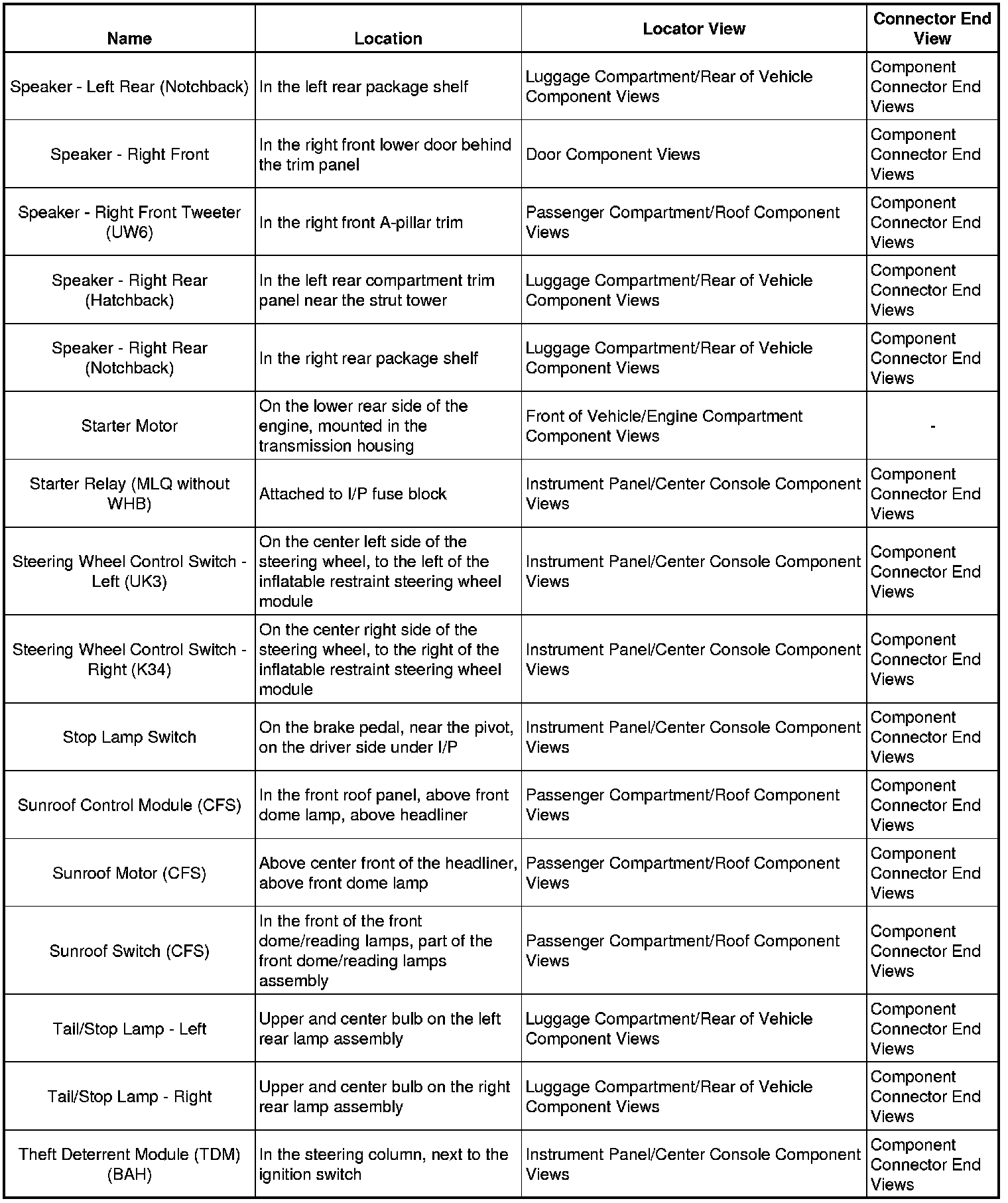

Sp - Th:

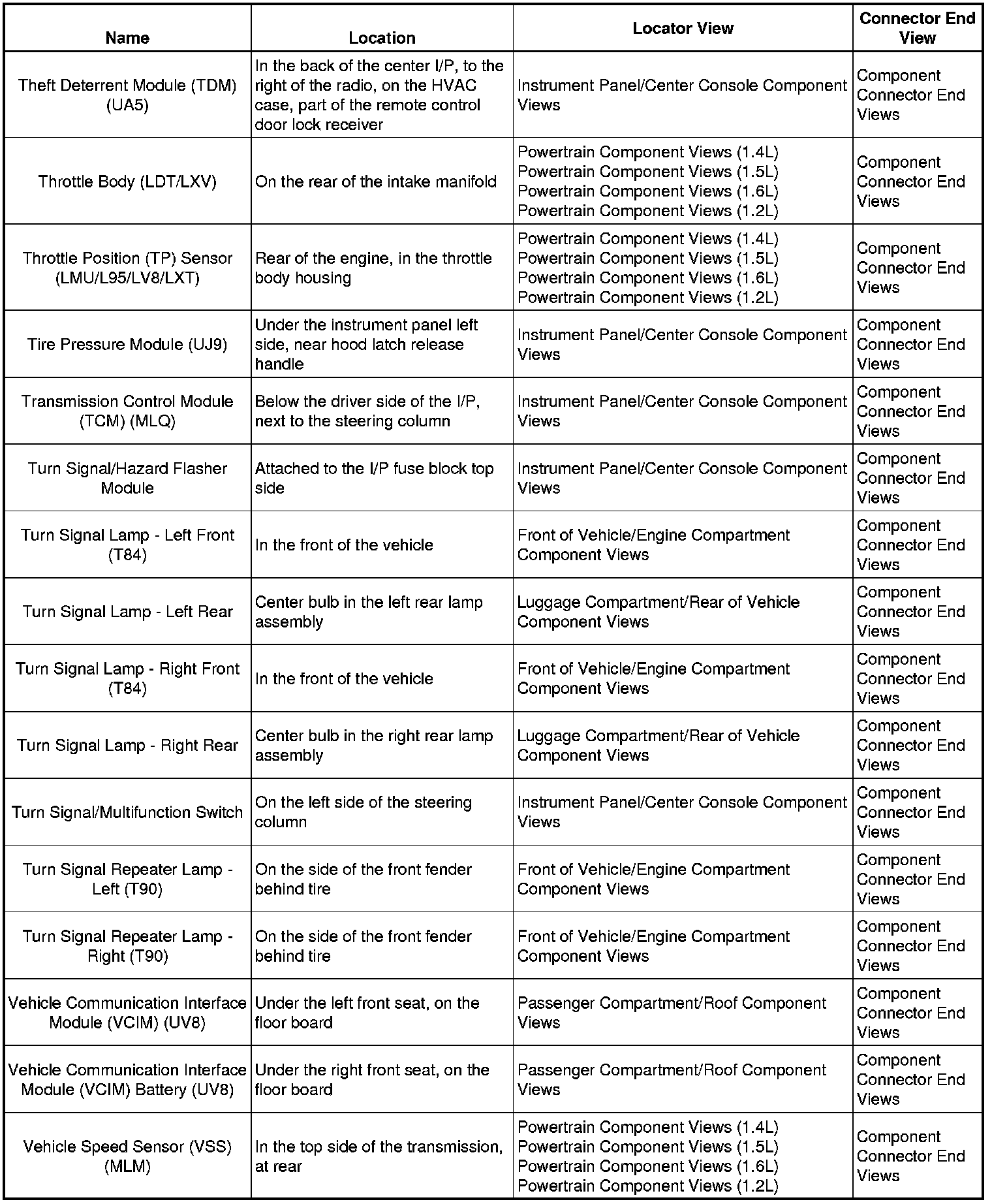

Th - Ve:

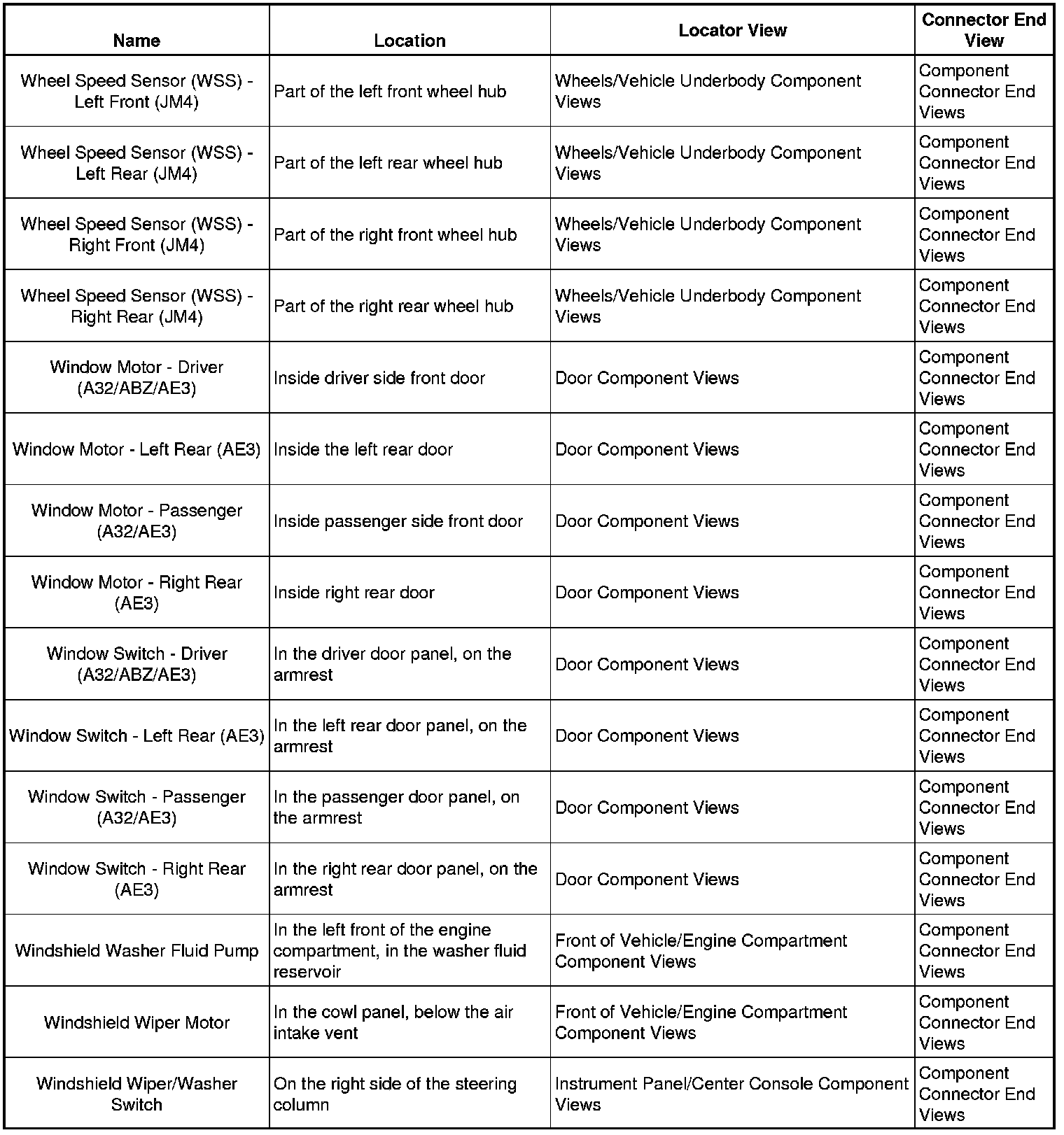

Wh - Wi:
